Compact Constant Humidity Temperature Test Chamber with USB Connectivity and Wide Temperature Range -70~180ºC and Humidity Range 20%~98%

1 Unit
MOQ
$599~$8999
Price
Compact Constant Humidity Temperature Test Chamber with USB Connectivity and Wide Temperature Range -70~180ºC and Humidity Range 20%~98%
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Constant Temperatrue And Humidity Chamber
Temperature Range: -70~180ºC
Humidity Range: 20%~98%
Indication Relolution: 0.1degres Celsius
Control Accuracy Of Humidity: ±2.5% R.H.
Control Accuracy Of Temperature: 0.5degres Celsius
Warranty: 1 Year
Custom Service: OEM,ODM
Size Service: Support Customer Customization
Specification: Refer To The Actual Size Specifications
Highlight:

USB Connectivity Environmental Test Chamber

,

Temperature Range -70~180ºC Climate Test Chamber

,

Humidity Range 20%~98% Constant Humidity Temperature Test Chamber
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6195
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5~15 work days
Payment Terms: T/T; D/P; Wester Union; Paypal; Money Gram
Supply Ability: 30 Unit/month
Product Description

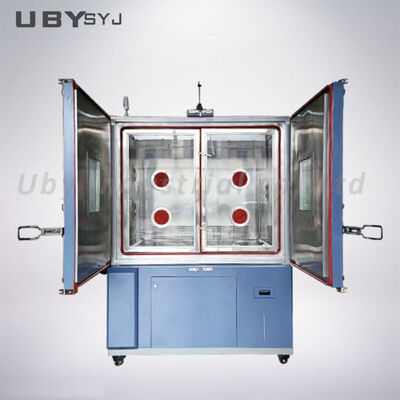

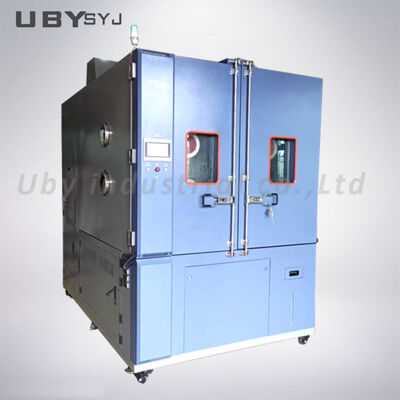

UP-6195 Compact Constant Humidity Temperature Test Chamber
This compact environmental test chamber with USB connectivity is designed for simulating various environmental conditions to test material performance under heat, dry, humidity, and cold conditions.
Design Standards
GB2423/T5170/10586/10592, IEC68, GJB150, JIS C60068, ASTM D4714, CNS3625/12565/12566
Applications
Ideal for testing material performance characteristics including resistance to heat, dry conditions, humidity, and cold to determine material durability and reliability.
Key Features
  • Elegant circular design with mist strip surface treatment for easy operation and safety
  • Rectangular double-paned viewing window with interior lighting for sample observation
  • Double-layer insulated airtight doors for effective temperature insulation
  • Externally connectable water supply system with automatic recycling
  • French Tecumseh compressor using environmentally friendly R23 or R404A refrigeration
  • LCD display showing measured values, set values, and time
  • Multi-segment program editing with quick or ramp rate temperature and humidity control
  • Mobility casters with strong positioning screws for easy relocation
Technical Specifications
Model UP-9195A UP-6195B UP-6195C UP-6195D
Internal Dimension W*H*D (mm) 400*500*400 500*600*500 600*750*500 600*850*800
External Dimension W*H*D (mm) 950*1650*950 1050*1750*1050 1200*1900*1150 1200*1950*1350
Temperature Range Low Temperature (A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) / High Temperature 150°C
Humidity Range 20%~98% R.H. (10%-98% R.H. / 5%-98% R.H optional with dehumidifier)
Indication Resolution / Distribution Uniformity 0.1°C; 0.1% R.H / ±2.0°C; ±3.0% R.H.
Control Accuracy ±0.5°C; ±2.5% R.H.
Temperature Rising/Falling Velocity Rising: 0.1~3.0°C/min; Falling: 0.3~1.0°C/min (faster rates optional)
Inner and Outer Material SUS 304# stainless steel interior; stainless steel or painted cold-rolled steel exterior
Insulation Material High-temperature resistant, high-density foam insulation
Cooling System Wind or water cooling (single segment compressor -40°C, double segment -70°C)
Power AC220V 1Ph 3 lines, 50/60Hz or AC380V 3Ph 5 lines, 50/60Hz
Approx. Weight (Kg) 150 180 250 320
Protection Devices
  • Fuse-free switch and compressor overloading protection
  • High and low voltage coolant protection switch
  • Over-humidity and over-temperature protection switches
  • Fuses and comprehensive fault warning system
  • Water shortage storage warning protection
Optional Accessories
Inner door with operation hole, recorder, water purifier, dehumidifier. Compressor options: French Tecumseh Brand or German Bizer Brand.
Compact Constant Humidity Temperature Test Chamber with USB Connectivity and Wide Temperature Range -70~180ºC and Humidity Range 20%~98% 0 Compact Constant Humidity Temperature Test Chamber with USB Connectivity and Wide Temperature Range -70~180ºC and Humidity Range 20%~98% 1 Compact Constant Humidity Temperature Test Chamber with USB Connectivity and Wide Temperature Range -70~180ºC and Humidity Range 20%~98% 2 Compact Constant Humidity Temperature Test Chamber with USB Connectivity and Wide Temperature Range -70~180ºC and Humidity Range 20%~98% 3 Compact Constant Humidity Temperature Test Chamber with USB Connectivity and Wide Temperature Range -70~180ºC and Humidity Range 20%~98% 4 Compact Constant Humidity Temperature Test Chamber with USB Connectivity and Wide Temperature Range -70~180ºC and Humidity Range 20%~98% 5 Compact Constant Humidity Temperature Test Chamber with USB Connectivity and Wide Temperature Range -70~180ºC and Humidity Range 20%~98% 6 Compact Constant Humidity Temperature Test Chamber with USB Connectivity and Wide Temperature Range -70~180ºC and Humidity Range 20%~98% 7 Compact Constant Humidity Temperature Test Chamber with USB Connectivity and Wide Temperature Range -70~180ºC and Humidity Range 20%~98% 8 Compact Constant Humidity Temperature Test Chamber with USB Connectivity and Wide Temperature Range -70~180ºC and Humidity Range 20%~98% 9
Our Service Process
  • Customer Inquiry: Technical consultation, product recommendations, and customized pricing based on requirements
  • Specifications Customization: Detailed drawings, reference photos, and final solution confirmation
  • Production and Delivery: Production updates, factory calibration, quality testing, and timely shipping
  • Installation and After-Sales: Field installation support and comprehensive after-sales service
Frequently Asked Questions
  • Are you a manufacturer? What about warranty and after-sales service?
    Yes, we are professional manufacturers with 12-month warranty plus 2-month extension for sea transportation. We provide 24-48 hour technical support via email or video chat.
  • What is the delivery time?
    Standard machines: 3-7 days if in stock, 15-20 working days if not in stock. Urgent orders receive special arrangements.
  • Do you accept customization and OEM services?
    Yes, we offer both standard and customized machines with OEM and ODM services, including logo placement.
  • How do I install and use the machine?
    Most machines are shipped fully assembled. We provide English operation manuals and videos. On-site installation assistance available when necessary.
