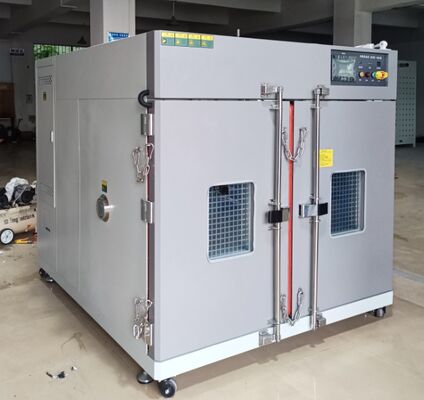

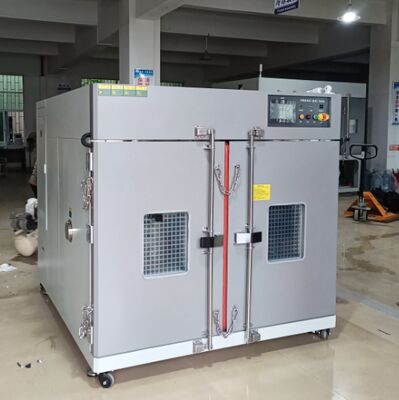

The UP-6195 Robust and Durable Walk-in Test Chamber features a SUS304 stainless steel interior and coated cold-rolled steel exterior, designed for large-scale environmental simulation testing with precise temperature and humidity control.
Product Introduction
This walk-in constant temperature and humidity test chamber is a large-scale environmental simulation device designed to evaluate the reliability and performance of materials, components, and finished products under various climatic conditions. It provides precise temperature and humidity control, stable airflow circulation, and uniform testing conditions, making it ideal for electronics, automotive, aerospace, materials research, and quality control laboratories.
Key Features
- Temperature range: -20°C to +100°C, humidity range: 20% RH to 95% RH
- Intelligent PID control system with user-friendly touch screen interface
- Uniform and stable temperature distribution with low noise operation
- Complies with multiple international environmental testing standards
- Water cooling refrigeration system for efficient and stable performance
- Suitable for testing large samples and components
Functions and Applications
- Environmental simulation testing of electronic components and industrial materials
- Reliability and durability testing under constant or cyclic temperature and humidity conditions
- Temperature cycling, high and low temperature storage, and humidity tolerance testing
- Support for research and development, production quality inspection, and certification evaluation
- Ideal for automotive, aerospace, chemical, and research laboratory applications
Design Standards
GB2423/T5170/10586/10592, IEC68, GJB150, JIS C60068, ASTM D4714, CNS3625/12565/12566
Performance Parameters
| Parameter |
Specification |
| Internal Dimensions (L×W×H) |
3000×2300×2550 mm |
| External Dimensions (L×W×H) |
4600×2500×2750 mm |
| Temperature Range |
-20ºC to +100ºC |
| Humidity Range |
20% to 95% RH |
| Temperature Resolution |
0.1ºC |
| Temperature Fluctuation |
±0.5ºC |
| Temperature Uniformity |
±2ºC |
| Humidity Resolution |
0.1% RH |
| Humidity Fluctuation |
±2% RH |
| Humidity Uniformity |
±2.5% RH |
| Heating Rate |
0 to 3ºC/min (average, no load) |
| Cooling Rate |
0 to 1ºC/min (average, no load) |
| Noise Level |
≤65 dB |
| Power Supply |
380V±10%, 50Hz, 3-phase, 100A |
| Cooling Method |
Water cooling system with cooling tower and dual circulation |
| Material |
Interior: SUS304 stainless steel; Exterior: Cold-rolled steel plate with coating |
| Observation Window |
Two explosion-proof observation windows (320×350 mm each) |
| Door Type |
Double doors with silicone rubber sealing strip |
| Lighting |
Two explosion-proof LED lights (36V/40W) |
| Controller |
Touchscreen LCD with PID+SSR control |
| Communication Interface |
RS232/RS485 ports for PC data acquisition and monitoring |
| Safety Devices |
Overheat, overload, phase loss, leakage, and water shortage protection |
Our Service
Consultative Selling Process
1) Customer Inquiry Process:
Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer specifications.
2) Specifications Customization Process:
Create detailed drawings for customized requirements, provide reference photos for product appearance, and confirm final solutions and pricing.
3) Production and Delivery Process:
Manufacture according to confirmed PO requirements, provide production progress photos, conduct factory or third-party calibration, and ensure timely delivery.
4) Installation and After-Sales Service:
Provide on-site installation support and comprehensive after-sales service to ensure optimal performance.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine purchased includes a 12-month warranty after shipment, with free maintenance during this period. For international shipping considerations, we extend this to 14 months for our customers. If your machine requires service, contact us via email or phone. We will diagnose issues through conversation or video chat and provide solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. We accommodate urgent requirements with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your specific requirements. We provide OEM and ODM services, including placing your logo on the equipment.
How can I install and use the machine?
We provide comprehensive English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. For complex installations, we offer on-site installation assistance.
