HBS-3000Z Desktop Automatic Brinell Hardness Tester with High-precision Optical System and 8~650HBW Range

1 Unit
MOQ
Negotiable
Price
HBS-3000Z Desktop Automatic Brinell Hardness Tester with High-precision Optical System and 8~650HBW Range
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: HBS-3000Z
HS Code: 9024102000
Measuring Range: Hbw
Hardness Test Range: 8~650HBW
Calibrating Method: Standard Hardness Test Blocks
Applications: Cast Iron, Steel, Non-Ferrous Metals And Soft All
Standard: ISO, ASTM, GB/T, BSEN
Mobility: Desktop
Specification: Refer To The Actual Size Specifications
Rated Voltage: 220V
Highlight:

High-precision Optical System Brinell Hardness Tester

,

Automatic Loading Hardness Tester

,

8~650HBW Range Desktop Hardness Tester
Basic Infomation
Place of Origin: China
Brand Name: YOUBI
Certification: CE,ISO
Model Number: HBS-3000Z
Payment & Shipping Terms
Packaging Details: Professional export packing
Delivery Time: 5-7 work days
Payment Terms: D/P,T/T,Western Union; Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description

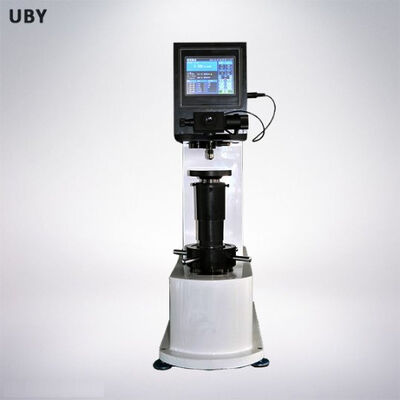

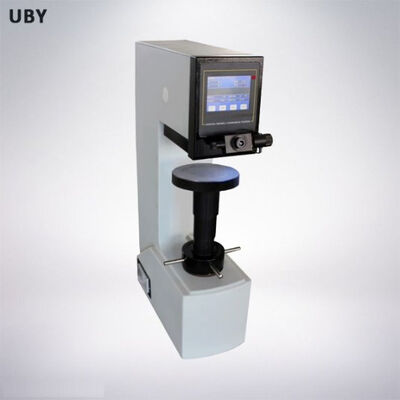

HBS-3000Z Desktop Automatic Brinell Hardness Tester
The HBS-3000Z is a desktop automatic turret digital display Brinell hardness tester featuring a high-precision optical system. This advanced testing equipment is designed for accurate hardness measurement in industrial applications.
Product Overview
The Brinell hardness test is suitable for cast iron, non-ferrous alloys, various annealed and quenched and tempered steels with hardness less than 650HBW. This method is not suitable for measuring extremely hard, very small, or thin workpieces. In steel pipe standards, the Brinell hardness indentation diameter (d) is commonly used to represent material hardness, making this tester widely applicable across industries.
Key Features
  • Electronic automatic loading system with computer software programming
  • High magnification optical measurement and photoelectric sensing systems
  • Touch screen operating system with automatic indenter and objective lens switching
  • High-precision closed-loop test force sensor loading system replaces traditional weight loading
  • Automatic loading, holding, and unloading functions
  • Large LCD screen displays operation processes and test results
  • Built-in printer for data output
Technical Specifications
Measuring Range 31.25kgf, 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
(306.45N, 612.9N, 980.7N, 1266N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N)
Hardness Test Range 8~650HBW
Data Output Built-in printer
Microscope 20X digital micrometer eyepiece
Micrometer Drum Minimum Scale 0.001mm
Hold Time 0~60 seconds
Indenter to Machine Wall Distance 150mm
Maximum Height 280mm
Power Supply 220V, 50HZ
Dimensions 230 × 600 × 920mm
Weight 130kg
HBS-3000Z Desktop Automatic Brinell Hardness Tester with High-precision Optical System and 8~650HBW Range 0 HBS-3000Z Desktop Automatic Brinell Hardness Tester with High-precision Optical System and 8~650HBW Range 1 HBS-3000Z Desktop Automatic Brinell Hardness Tester with High-precision Optical System and 8~650HBW Range 2
Our Service Commitment
Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing.
Customization Process: Create detailed drawings for custom requirements, provide reference photos, and confirm final solutions and pricing.
Production and Delivery: Manufacture according to confirmed specifications, provide production updates, conduct factory or third-party calibration, and ensure proper packaging and timely delivery.
Installation and Support: Provide field installation services and comprehensive after-sales support.
Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of testing equipment. Every machine includes a 12-month warranty with free maintenance. For international shipments, we extend this to 14 months. Technical support is available via email, phone, or video chat with solutions provided within 24-48 hours.
What is the delivery time?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent orders receive special priority handling.
Do you accept customization and OEM services?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
How do I install and operate the machine?
We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin testing. On-site installation assistance is available when necessary.
