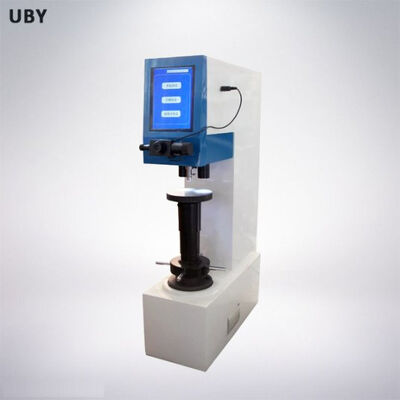

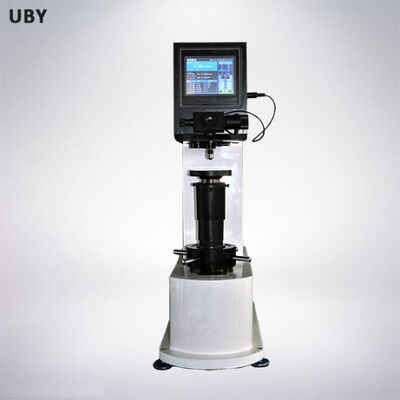

HBS-62.5(A) Automatic Turret Digital Display Small Load Brinell Hardness Tester
Application Scope
The HBS-62.5 digital display small load Brinell hardness tester features unique precision design in mechanics, optics, and light source systems, delivering clearer indentation images and more accurate measurements. Equipped with a color LCD screen and high-speed 32-bit microprocessor control system, it enables full man-machine dialogue and automatic operation with high test accuracy, simple operation, excellent sensitivity, user-friendly interface, and stable indication values.
Test force is applied through electronic closed-loop control, automatically applying, maintaining, and removing test forces while directly displaying hardness values. The modular structure design allows immediate use upon power connection without requiring weight installation.
Applications
Determination of Brinell hardness for ferrous metals, non-ferrous metals, and bearing alloy materials. Particularly suitable for Brinell hardness testing of soft metal materials and small parts with wide application range.
Key Features
- One-piece casting body construction with long-term aging treatment ensures minimal deformation during extended use and excellent adaptation to various harsh environments
- Automotive-grade baking paint finish provides high-quality scratch resistance that remains bright and new-looking for years
- Senior optical engineer-designed optical system delivers clear images, functions as a simple microscope with adjustable brightness for comfortable vision during extended operation
- Automatic turret allows easy switching between high and low magnification objective lenses for sample observation and measurement, preventing damage to optical components
- High-resolution measurement objective lens combined with high-definition digital measurement eyepiece with built-in length encoder enables one-key indentation diameter measurement
- Optional CCD image processing system and video measurement device available
- Bluetooth module, Bluetooth printer, and optional Bluetooth PC receiver for wireless printing and data transmission
- Accuracy conforms to GB/T231.2, ISO 6506-2, ASTM E10 standards
Technical Specifications
| Measuring Range |
5-650HBW |
| Test Force |
9.807, 49.03, 98.07, 153.2, 294.2, 612.9N (1, 5, 10, 15.625, 30, 62.5kgf) |
| Optical Measurement System |
Objective: 2.5×, 10× | Total Magnification: 25×, 100× | Measuring Range: 200μm | Graduation Value: 0.025μm |
| Dimensions & Power |
Dimensions: 600×330×700mm | Maximum Sample Height: 200mm | Indenter Center to Machine Wall: 130mm | Power Supply: AC220V/50Hz | Weight: 70Kg |
Main Accessories
- Daping test platform: 1
- Brinell Ball Indenter: Φ1, Φ2.5 (1 each)
- Xiaoping test platform: 1
- Standard Brinell hardness block: 2
- V-shaped test stand: 1
- Printer: 1
Our Service Commitment
We provide comprehensive consultative selling services throughout the entire business process:
Customer Inquiry Process
Discuss testing requirements and technical details, suggest suitable products for confirmation, and provide competitive pricing based on customer requirements.
Specifications Customization Process
Create detailed drawings for customized requirements, provide reference photos showing product appearance, confirm final solution, and establish final pricing.
Production and Delivery Process
Manufacture machines according to confirmed purchase order requirements, provide production progress photos, conduct factory or third-party calibration as required, perform comprehensive testing, and arrange professional packaging and timely delivery.
Installation and After-Sales Service
Provide field installation services and comprehensive after-sales support to ensure optimal performance.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine includes a 12-month warranty after shipment with free maintenance. Considering sea transportation, we extend this to 14 months for international customers. If your machine requires service, contact us via email or phone. We'll diagnose the issue through conversation or video chat and provide solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. We accommodate urgent requirements with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your specifications. We provide OEM and ODM services including logo placement on equipment.
How can I install and use the machine?
We provide comprehensive English operation manuals and videos via email. Most machines ship fully assembled - simply connect the power cable to begin operation. When necessary, we offer on-site installation assistance.
