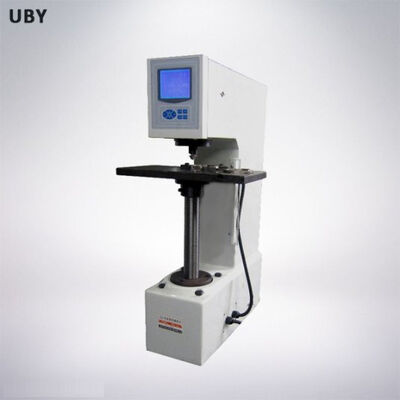

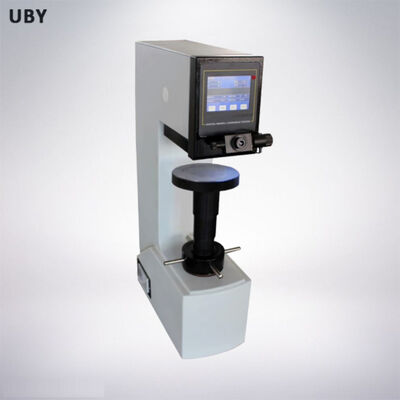

UBY HB-3000 Electronic Motorized Test Force with CPU Control Brinell Hardness Tester
The UBY HB-3000 Electronic Brinell Hardness Tester features automatic closed-loop force sensor control with CPU management for precise hardness testing applications.
Application Scope
Determination of Brinell hardness for ferrous metals, non-ferrous metals, and bearing alloy materials including cemented carbide, carburized steel, hardened steel, case hardened steel, hard cast steel, aluminum alloy, copper alloy, malleable casting, mild steel, quenched and tempered steel, annealed steel, and bearing steel.
Technical Specifications
| Measuring Range |
5-650HBW |
| Test Force |
612.9, 980.7, 1225.9, 1838.8, 2415.8, 4903.5, 7355.3, 9807, 14710.5, 29421N (62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000kgf) |
| Maximum Sample Height |
280mm |
| Indenter to Wall Distance |
150mm |
| Dimensions |
700 × 270 × 845mm |
| Power Supply |
AC220V/50Hz |
| Weight |
220kg |
Product Overview
The UBY HB-3000 electronic Brinell hardness tester employs automatic closed-loop force sensor control with 10-level test force selection and 14-level test scale. This system replaces traditional weight afterburner methods, automating the testing process to eliminate human error and enhance operational efficiency.
Key Features
- Single-cast body construction with long-term aging treatment for minimal deformation and exceptional environmental adaptability
- Automotive-grade baked paint finish with superior scratch resistance and long-term durability
- Electric test force loading/unloading with closed-loop pressure sensor feedback (5‰ precision) and ARM32-bit microcontroller control
- Robust construction with excellent rigidity for accurate, reliable, and efficient testing performance
- Integrated overload and over-position protection with automatic test force compensation
- High-performance stepper motor for quiet operation during loading/unloading cycles
- Optional CCD image processing system and video measurement capabilities
- Compliance with GB/T231.2, ISO6506-2, and ASTM E10 standards
Standard Accessories
- Large flat workbench, small flat workbench, V-shaped workbench: 1 each
- Steel ball indenter: Φ2.5, Φ5, Φ10 each 1
- Steel ball: Φ2.5, Φ5, Φ10 each 1
- Standard Brinell hardness block: 2
Customer Service & Support
Consultative Selling Process
- Inquiry Phase: Technical requirement analysis and product recommendation with competitive pricing
- Customization Phase: Engineering drawings and visual references for custom specifications
- Production Phase: Manufacturing updates with progress photos and calibration services
- Delivery & Support: Timely shipping coordination with installation and after-sales support
Frequently Asked Questions
Are you a manufacturer? What is your warranty and after-sales service policy?
Yes, we are professional manufacturers of environmental chambers, leather shoe testing equipment, and plastic/rubber testing equipment. All machines include a 12-month warranty with free maintenance. Considering sea transportation, we extend this to 14 months for international customers. Technical support is available via email or video chat with solutions provided within 24-48 hours.
What is your delivery timeline?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. Expedited arrangements available for urgent requirements.
Do you accept customization and OEM services?
Yes, we provide both standard and customized machines according to specific requirements, including OEM and ODM services with customer branding.
How do I install and operate the machine?
We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
