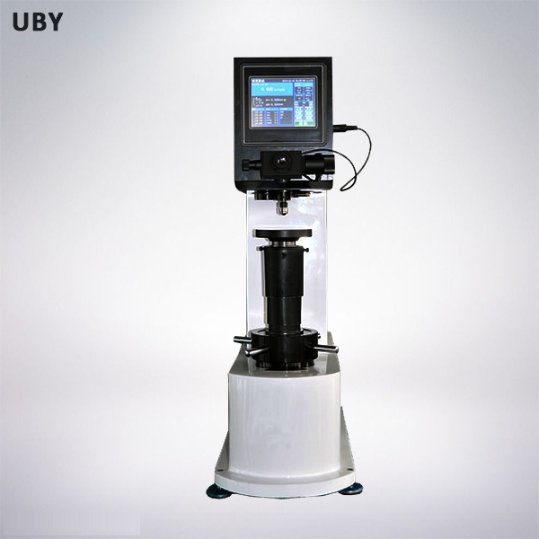

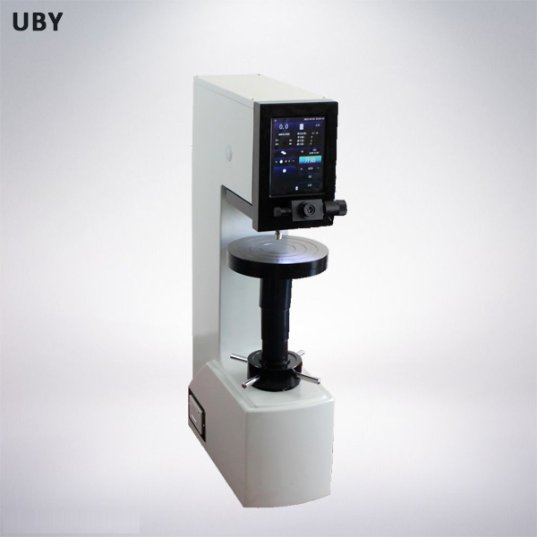

UBYHBS-3000AT Optical Brinell Hardness Testing Machine With Automatic Turret Digital Display

The HBS-3000 digital display Brinell hardness tester is an advanced optical, mechanical, and electrical integration product featuring precise mechanical structure and microcomputer-controlled closed-loop systems. Utilizing imported components for enhanced stability and accuracy, this instrument represents one of the most sophisticated Brinell hardness testers available worldwide.

The system enables direct measurement of indentations through micrometer eyepiece observation, with LCD display of indentation diameter, hardness values, and comprehensive hardness conversion tables. Equipped with RS232 serial port connectivity, the instrument supports terminal display, printing, and data storage functions for PC integration.

Designed for Brinell hardness determination of ferrous metals, non-ferrous metals, and bearing alloy materials, this tester offers broad application versatility, particularly excelling in hardness testing of soft metal materials and small components.

• One-piece cast body construction with long-term aging treatment ensures minimal deformation and exceptional durability in harsh environments
• Automotive-grade baked paint finish provides superior scratch resistance and long-lasting appearance
• Robust structural design delivers excellent rigidity, reliability, durability, and high testing efficiency
• Automatic protection against overload and over-position with electronic afterburner system and weight-free operation
• Electric test force loading/unloading with 5‰ precision pressure sensor feedback and ARM32-bit microcontroller automatic compensation
• High-performance stepper motor for automatic loading/unloading with reduced operational noise
• Automatic indentation diameter input with direct hardness value display and comprehensive hardness scale conversion
• Built-in micro-printer with optional CCD camera image processing and video measurement systems
• Compliance with GB/T231.2, ISO6506-2, and ASTM E10 standards

• Large flat workbench: 1 unit
• Small flat workbench: 1 unit
• V-shaped workbench: 1 unit
• Steel ball indenter: Φ2.5, Φ5, Φ10 (1 each)
• Standard Brinell hardness block: 2 units

We provide comprehensive consultative selling services throughout the entire business process:

• Customer Inquiry: Technical requirement discussions, product recommendations, and competitive pricing based on specific needs
• Custom Specifications: Detailed drawing preparation, visual reference provision, and final solution confirmation
• Production & Delivery: Strict adherence to confirmed requirements, production progress updates, calibration services, and timely shipping arrangements
• Installation & Support: Professional on-site installation and comprehensive after-sales service support
