Home /Products/Impact Testing Machine/Zero Height Drop Tester Packaging Impact Test Equipment with ISO ASTM ISTA Standard UP-3020, Max Loading Weight 150kg / 300kg / 500kg, Drop Height 0-1200mm / 0-1500mm

Zero Height Drop Tester Packaging Impact Test Equipment with ISO ASTM ISTA Standard UP-3020, Max Loading Weight 150kg / 300kg / 500kg, Drop Height 0-1200mm / 0-1500mm

1
MOQ
Negotiable
Price
Zero Height Drop Tester Packaging Impact Test Equipment with ISO ASTM ISTA Standard UP-3020, Max Loading Weight 150kg / 300kg / 500kg, Drop Height 0-1200mm / 0-1500mm
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-3020
Service Support: OEM ODM
Drop Height: 0-1200mm / 0-1500mm (Optional)
Max Loading Weight: 150kg / 300kg / 500kg (Optional)
Drop Error: ±5mm
Drop Plane Error: <1°
Applications: Package Carton Box
Language: Chinese And English
Highlight:

ISO ASTM ISTA Standard Impact Testing Machine

,

Max Loading Weight 150kg / 300kg / 500kg Zero Height Drop Tester

,

Drop Height 0-1200mm / 0-1500mm Packaging Impact Test Equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-3020
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5-10work days
Payment Terms: D/A,D/P,T/T
Supply Ability: 20 Unit/Month
Product Description
Zero Height Drop Tester Packaging Impact Test Equipment ISO ASTM ISTA Standard UP-3020
Product Introduction

The Zero Height Impact Tester is a professional packaging drop testing machine specifically designed for heavy and large packaged goods. Utilizing a fork lifting and instant release structure, it achieves zero-height free fall testing to simulate actual impact damage during logistics transportation, handling, and stacking. Supporting surface, edge, and corner drop tests, this equipment features high precision, stable performance, and easy operation, enabling manufacturers to effectively verify packaging durability and optimize packaging solutions.

Compliance Standards
  • ISO 2248, ASTM D5276 international drop test standards
  • ISTA 1A/1B/2A/3E e-commerce packaging test specifications
  • IEC 68-2 series environmental impact test standards
  • GB/T 4857.5 national packaging drop test standard
Applications
  • Electronic appliances, household products and precision instruments packaging test
  • Corrugated cartons, plastic turnover boxes and foam packaging performance test
  • Cross-border e-commerce logistics packaging certification (Amazon, international express)
  • Hardware, ceramics, furniture and other fragile & heavy goods packaging drop test
Technical Specifications
Parameter Specification
Sample max weight 0-150Kg
Drop height 0-1300 mm
Max sample size 800×1000×1000mm
Impact floor size 1000 × 1200mm
Sample hoisting speed <20s/m
Test side Surface, edge, Angle
Power 220V/50HZ
Drive way Motor drive
Protection device The upper and lower protective devices are provided with induction type protection
Impact sheet material 45# Steel, Solid steel plate
Height shows Touch screen control
Drop height Touch screen control
The structure of the bracket arm 45# Steel is made by welding
Drive way Straight sliding block and copper guide sleeve imported from Taiwan, 45# Chrome steel
Accelerating device pneumatic
Drop way pneumatic
Weight About 650KG
Air source 3~7Kg
Control box size 450*450*1400 mm
Machine out size 1000 x1300 x 2600mm

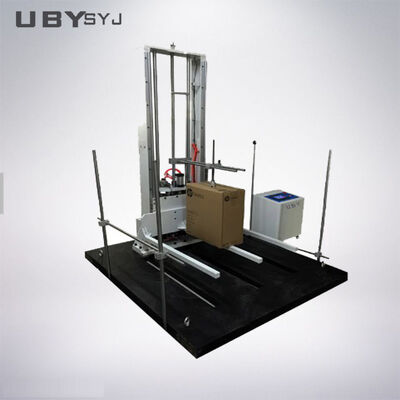

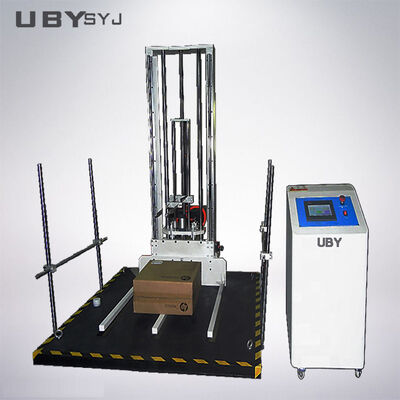

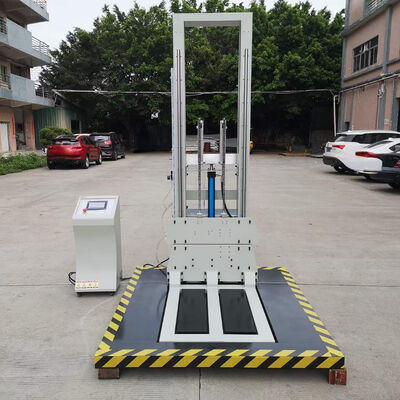

Zero Height Drop Tester equipment front view showing industrial design and control panel Close-up view of Zero Height Drop Tester mechanical components and lifting mechanism Zero Height Drop Tester in operation during packaging impact testing
Our Service Commitment

Throughout the entire business process, we offer comprehensive Consultative Selling services:

Customer Inquiry Process

We discuss testing requirements and technical details, suggest suitable products for confirmation, and provide the most competitive pricing according to customer requirements.

Specifications Customization Process

We create detailed drawings for customized requirements confirmation, provide reference photos showing product appearance, and finalize solutions and pricing with customers.

Production and Delivery Process

Machines are manufactured according to confirmed PO requirements with production progress photos provided. Final product confirmation, calibration (factory or third-party), detailed testing, and professional packing are completed before timely delivery.

Installation and After-Sales Service

We provide field installation services and comprehensive after-sales support to ensure optimal equipment performance.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of FREE maintenance, with an additional 2-month extension considering sea transportation. If your machine experiences issues, contact us via email or phone. We'll diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment receipt. We accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.

How can I install and use the machine?

We provide English operation manuals and videos via email upon order completion. Most machines are shipped fully assembled - simply connect the power cable to begin operation. We offer on-site installation assistance when necessary.

Tag:

Impact Test Apparatus

Impact Test Equipment

Impact Tester Machine
