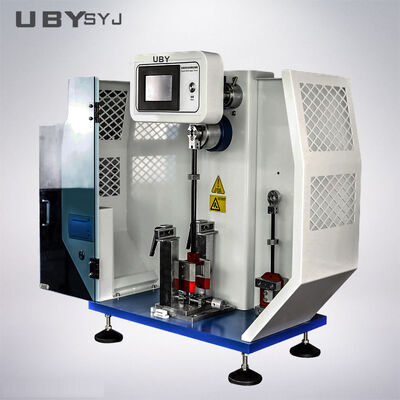

Name: Dual-Purpose Impact Tester Compliant With ISO179 ISO180 ASTM D256 Featuring 0.5J-22J Energy Range and High-Precision Digital Encoder
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-3015
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Service Support: OEM ODM

Model NO.: UP-3015

Blade Angle: 30°

Language: Chinese And English

Blade Back Angle: 10°

Blade Front Angle: 5°

Pendulum Energy: 1J, 2J, 4J, 5J

Product Name: Charpy Izod Impact Tester

Pendulum Angle: 150°

Applications: Plastic,Rubber

Highlight:

ISO179 ISO180 ASTM D256 Impact Testing Machine

0.5J-22J Energy Range Charpy Izod Impact Tester

High-Precision Digital Encoder Dual-Purpose Impact Tester

Basic Infomation

Place of Origin: China

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-3015

Payment & Shipping Terms

Packaging Details: Professional Export Packing

Delivery Time: 5-15 work days

Payment Terms: T/T; D/T; Western Union; Paypal

Supply Ability: 30 Unit/month

Gallery

Dual-Purpose Impact Tester Compliant With ISO179 ISO180 ASTM D256 Featuring 0.5J-22J Energy Range and High-Precision Digital Encoder

Product Description

Izod And Charpy Impact Tester Compliant With ISO179 ISO180 ASTM D256 UP-3015

Product Overview

The Izod and Charpy Impact Tester is a dual-purpose precision testing instrument designed to evaluate the impact toughness and fracture resistance of rigid plastic, nylon, composite materials, and polymer specimens. It integrates Charpy unnotched/notched impact and Izod cantilever beam impact testing functions in one machine, adopting a high-precision pendulum impact structure to complete instantaneous impact testing. The equipment accurately measures the impact strength of materials under dynamic load, with stable operation, high test accuracy, and excellent data repeatability.

Compliance Standards

ISO 179 Plastics - Determination of Charpy impact properties
ISO 180 Plastics - Determination of Izod impact strength
ASTM D256 Standard Test Methods for Determining the Izod Pendulum Impact Resistance of Plastics
ASTM D6110 Standard Test Method for Determining Charpy Impact Resistance of Plastics

Technical Specifications

Item	Specifications
Test Type	Charpy Impact & Izod Impact (Dual-purpose)
Impact Energy Range	0.5J, 1J, 2.75J, 5.5J, 11J, 22J (optional)
Impact Speed	2.9m/s ± 0.1m/s
Angle Resolution	0.1°
Energy Accuracy	±1%
Specimen Type	Standard notched / unnotched plastic specimens
Control Mode	Digital display, automatic calculation of impact strength
Machine Structure	Integrated cast iron structure, anti-vibration, high stability
Power Supply	AC220V 50Hz

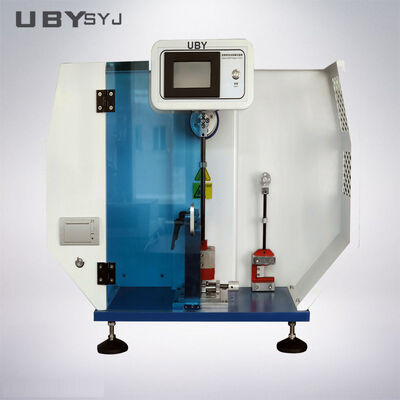

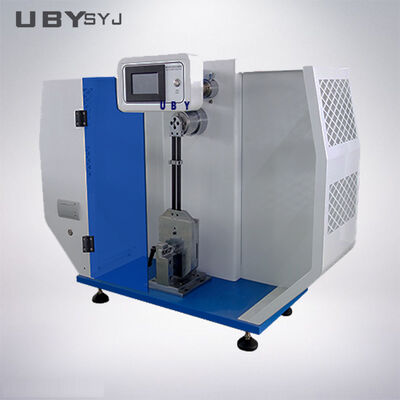

Product Images

Our Service Process

1) Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing.

2) Specifications Customization Process: Create detailed drawings for custom requirements, provide reference photos, and confirm final solutions and pricing.

3) Production and Delivery Process: Manufacture according to confirmed requirements, provide production progress photos, conduct calibration, and arrange timely shipping.

4) Installation and After-Sales Service: Provide field installation support and comprehensive after-sales service.

Frequently Asked Questions

1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2-month extension to account for sea transportation. If your machine requires service, contact us via email or phone. We will diagnose the issue through conversation or video chat and provide solutions within 24-48 hours.

2. What about the delivery term?

For standard machines in stock: 3-7 working days. For out-of-stock items: 15-20 working days after payment. We can accommodate urgent requests with special arrangements.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the equipment.

4. How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin use. When necessary, we can provide on-site installation assistance.
