IK01-IK10 (IK11 optional) Impact Testing Machine with 0.14J～50J Impact Energy Range and ±1mm Height Accuracy

1 Unit
MOQ
Negotiable
Price
IK01-IK10 (IK11 optional) Impact Testing Machine with 0.14J～50J Impact Energy Range and ±1mm Height Accuracy
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Impact Test Equipment
Model NO.: UP-3012
Applicable IK Grade: IK01-IK10 (IK11 Optional)
Impact Energy Range: 0.14J～50J
Height Accuracy: ±1mm
Energy Accuracy: ±2%
Applications: Traffic Lights, Consumer Electronics ,outdoor Signage, And Etc.
Service Support: OEM ODM
Highlight:

IK01-IK10 Impact Testing Machine

,

0.14J～50J Impact Testing Machine

,

±1mm Height Accuracy Impact Testing Machine
Basic Infomation
Place of Origin: China
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-3012
Payment & Shipping Terms
Packaging Details: Professional Export Packing
Delivery Time: 5-15 work days
Payment Terms: T/T; D/T; Western Union; Paypal
Supply Ability: 30 Unit/month
Product Description
UP-3012 IK Impact Tester IEC62262 IEC60068-2-75 Electrical Enclosure Mechanical Impact Test Machine
Product Overview

The IK Impact Tester is designed to determine the IK protection rating of electrical and electronic product enclosures. Utilizing standard pendulum and vertical free-fall impact principles, this machine delivers precise and controllable impact energy to evaluate product shell toughness, structural strength, and anti-damage capability.

It covers full-range IK grade testing from low to high energy impact, featuring accurate height calibration, stable impact output, and excellent test repeatability.

Applicable Standards
  • IEC 62262 - Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code)
  • IEC 60068-2-75 - Environmental testing - Part 2-75: Tests - Test Eh: Hammer impact tests
  • EN 50102 - Degrees of protection against external mechanical impacts for electrical equipment enclosures
  • GB/T 2423.55 - Environmental testing for electronic products - Test methods for mechanical impact resistance
Applications

Widely applied for product certification, quality inspection, and structural optimization, this tester provides authoritative and reliable test data for industrial electrical, lighting, and consumer electronic products.

Suitable for IK rating verification and mechanical impact resistance testing of various equipment enclosures across multiple industries. Widely used in factory laboratories and third-party certification institutions, including:

  • Lighting Industry
  • Electrical Industry
  • Consumer Electronics
Technical Specifications
Item Specifications
Applicable IK Grade IK01-IK10 (IK11 optional)
Impact Energy Range 0.14J～50J
Impact Mode Pendulum impact & vertical free fall impact
Height Accuracy ±1mm
Energy Accuracy ±2%
Striking Element Standard steel hammer & plastic hammer for different IK levels
Impact Times Setting 1-99 times adjustable, continuous impact available
Operation Mode Manual release / automatic release optional
Machine Feature High stability, low noise, easy calibration and maintenance
Power Supply AC220V 50Hz
Product Images

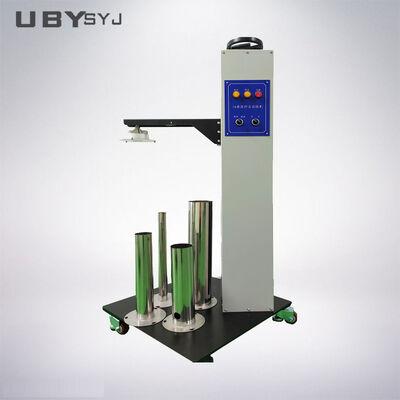

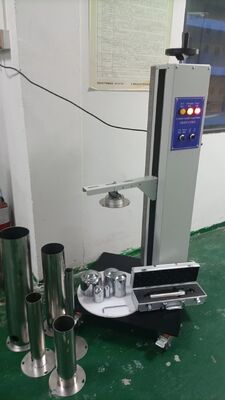

IK Impact Tester front view showing control panel and impact mechanism IK Impact Tester side view displaying structural components and measurement system
Our Service

During the entire business process, we offer consultative selling services:

1) Customer Inquiry Process

Discussing testing requirements and technical details, suggesting suitable products to customers for confirmation. Then quoting the most appropriate price according to customer requirements.

2) Specifications Customization Process

Creating related drawings to confirm customized requirements with customers. Providing reference photos to show product appearance. Confirming the final solution and price with the customer.

3) Production and Delivery Process

Producing machines according to confirmed PO requirements. Providing photos to show the production process. After completion, offering photos for customer confirmation. Performing factory calibration or third-party calibration as required. Testing all details and arranging packing. Delivering products within confirmed shipping timeframes.

4) Installation and After-Sales Service

Providing field installation services and comprehensive after-sales support.

Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. Generally, we offer 12 months of FREE maintenance, and considering sea transportation, we can extend 2 additional months for our customers.

If your machine doesn't work, you can send us an email or call us. We will try our best to identify the problem through conversation or video chat if necessary. Once we confirm the problem, a solution will be offered within 24 to 48 hours.

2. What about the delivery term?

For our standard machines with available stock: 3-7 working days.

For machines without stock: Normally 15-20 working days after payment is received.

If you have urgent needs, we will make special arrangements for you.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, absolutely. We offer not only standard machines but also customized machines according to your requirements. We can also place your logo on the machine, meaning we provide OEM and ODM services.

4. How can I install and use the machine?

Once you order testing machines from us, we will send you the operation manual or video in English version via email.

Most of our machines are shipped as complete units, meaning they are already installed. You just need to connect the power cable and start using them. If necessary, we can also assist you with on-site installation.
