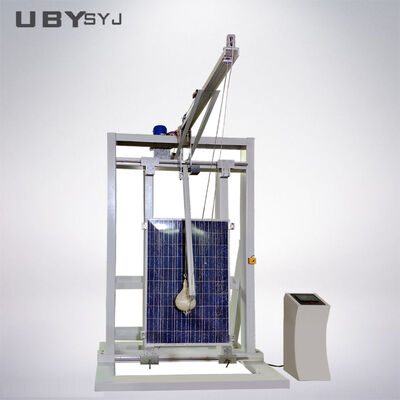

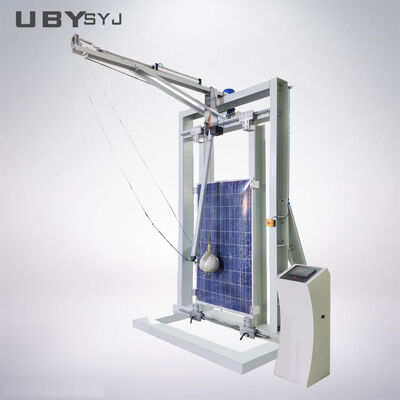

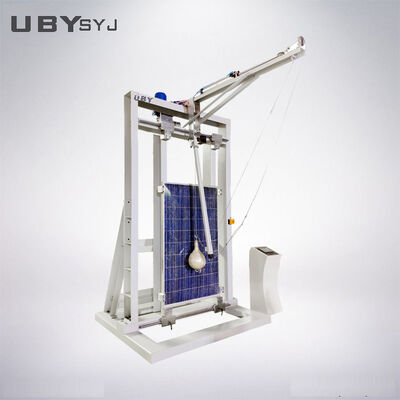

IEC 61730-2 MST-32 Compliant Sand Bag Impact Tester for PV Modules with 45.5±0.5kg Impact Mass and 300mm~1220mm Adjustable Height

The PV Module Shotbag Impact Tester utilizes a standard lead shot-filled sandbag as an impactor, swinging to strike the surface of PV modules. This simulates accidental collision impacts during installation, transportation, and on-site service.

The equipment evaluates mechanical strength and injury risk when PV glass breaks, checking crack propagation and post-break safety performance. Equipped with PLC control, automatic lifting & release, anti-secondary impact device, and safety protection frame, it delivers stable impact energy, high repeatability, and reliable test data for PV certification, incoming inspection, and new product development.

• IEC 61730-2 Photovoltaic module safety qualification, MST 32 Module Breakage Test
• ANSI Z97.1 Safety glazing materials used in buildings, impact test reference basis
• GB/T series Domestic safety test for photovoltaic modules & tempered glass

• PV Module Manufacturers: Monocrystalline, polycrystalline, double glass PV modules, BIPV building integrated photovoltaic panels
• Certification & Testing Laboratories: IEC safety certification test, module breakage safety assessment

During the entire business process, we offer Consultative Selling services:

• Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
• Specifications Customization Process: Create drawings for customized requirements, provide reference photos, and confirm final solutions
• Production and Delivery Process: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and ensure timely delivery
• Installation and After-Sales Service: Provide field installation support and comprehensive after-sales services

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of FREE maintenance, with an additional 2-month extension considering sea transportation. If your machine experiences issues, contact us via email or phone. We will diagnose the problem and provide solutions within 24-48 hours.

For standard machines in stock: 3-7 working days. For out-of-stock items: 15-20 working days after payment. We can accommodate urgent requests with special arrangements.

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable and begin operation. When necessary, we can provide on-site installation assistance.
