UP-3007 Glass Bottle Impact Tester with 0 ~ 2.5 J Impact Energy Range and Φ 20 ~ 165 mm Sample Diameter Range for ISO 8113 ASTM C1498 GB/T 6552-2015 Compliance

1
MOQ
Negotiable
Price
UP-3007 Glass Bottle Impact Tester with 0 ~ 2.5 J Impact Energy Range and Φ 20 ~ 165 mm Sample Diameter Range for ISO 8113 ASTM C1498 GB/T 6552-2015 Compliance
Features Gallery Product Description Chat Now
Features
Specifications
Language: Chinese And English
Impact Energy Range: 0 ~ 2.5 J
Sample Height Range: 10 ~ 400 Mm
Service Support: OEM ODM
Applications: Glass Bottle Jars
Resolution: 0.05 J (0–1.0 J) / 0.1 J (1.0–2.5 J)
Model NO.: UP-3007
Sample Diameter Range: Φ 20 ~ 165 Mm
Highlight:

0 ~ 2.5 J Impact Energy Range Glass Bottle Impact Tester

,

Φ 20 ~ 165 mm Sample Diameter Range Impact Strength Testing Machine

,

ISO 8113 ASTM C1498 GB/T 6552-2015 Compliant Impact Testing Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-3007
Payment & Shipping Terms
Packaging Details: Professional export packing
Delivery Time: 5-10work days
Payment Terms: D/A,D/P,T/T
Supply Ability: 30 Unit/month
Product Description
UP-3007 Glass Bottle Impact Tester Jar Impact Strength Testing Machine

The Glass Bottle Impact Tester is designed to detect the impact resistance and mechanical strength of glass bottles and containers. It employs a precise mechanical impact structure to conduct quantitative fixed-point impact tests on bottle bodies, effectively simulating collision and impact damage that occurs during production line transmission, packaging, transportation, and daily use.

Key features include stable impact force, high test accuracy, simple operation, and excellent repeatability.

Compliance Standards
  • ISO 8113 Glass containers - Resistance to vertical impact - Test method
  • ASTM C1498 Standard Test Method for Evaluating Impact Resistance of Glass Containers
  • GB/T 6552-2015 Test method for impact resistance of glass bottles and jars
  • YBB00182003 packaging glass container impact resistance test standard
Applications

Widely applicable to impact resistance testing of various glass bottles and containers across daily chemical, food, beverage, pharmaceutical, and glass manufacturing industries.

Technical Specifications
Item Specification
Impact Energy Range 0 ~ 2.5 J
Resolution 0.05 J (0-1.0 J) / 0.1 J (1.0-2.5 J)
Measurement Accuracy ≤ 1.5% FS (percentage of full scale)
Applicable Bottle Diameter Φ 20 ~ 165 mm
Impact Height Range 20 ~ 180 mm
Pendulum Deflection Angle Range 0 ~ 120°
Machine Dimensions (L×W×H) 450 × 300 × 650 mm
Package Dimensions (L×W×H) 610 × 450 × 880 mm
Gross Weight (with package) 38 kg

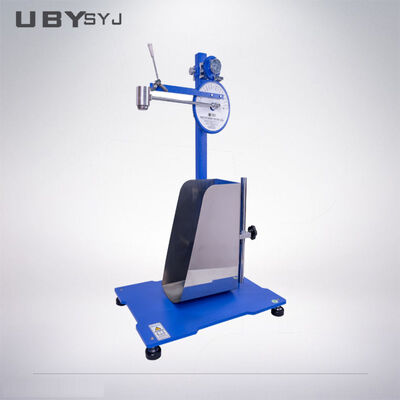

UP-3007 Glass Bottle Impact Tester operational view

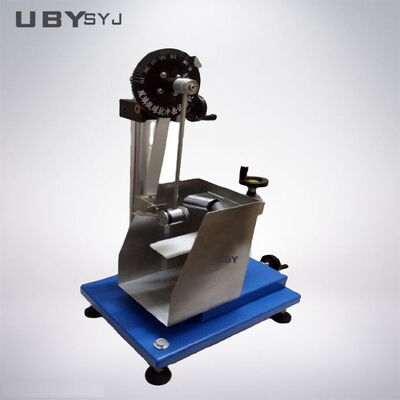

UP-3007 Glass Bottle Impact Tester close-up detail
Our Service Commitment

We provide comprehensive consultative selling services throughout the entire business process:

Customer Inquiry Process
  • Discussion of testing requirements and technical details
  • Product recommendations based on customer needs
  • Competitive pricing according to requirements
Specifications Customization
  • Technical drawings for customized requirements
  • Reference photos for product appearance
  • Final solution confirmation and pricing
Production and Delivery
  • Production according to confirmed PO requirements
  • Production progress photos
  • Factory or third-party calibration
  • Comprehensive testing and quality control
  • Timely delivery coordination
Installation and After-Sales

Professional installation services and comprehensive after-sales support.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with 12 months of free maintenance. Considering sea transportation, we extend this to 14 months for our customers. If your machine requires service, contact us via email or phone. We will diagnose the issue through conversation or video chat and provide solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days
Out of stock items: 15-20 working days after payment
Urgent requirements receive special priority arrangements
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including custom branding with your logo.
How can I install and use the machine?
We provide comprehensive English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable and begin operation. On-site installation assistance is available when necessary.
