UP-3007 Digital Display Glass Container Impact Test Machine with Adjustable Energy and 0 ~ 2.5 J Impact Energy Range
Features Gallery Product Description Chat Now
Features
Specifications
Language: Chinese And English
Impact Energy Range: 0 ~ 2.5 J
Sample Height Range: 10 ~ 400 Mm
Service Support: OEM ODM
Applications: Glass Bottle Jars
Resolution: 0.05 J (0–1.0 J) / 0.1 J (1.0–2.5 J)
Model NO.: UP-3007
Sample Diameter Range: Φ 20 ~ 165 Mm
Highlight:

Adjustable Energy Glass Bottle Impact Tester

,

Digital Display Impact Testing Machine

,

0 ~ 2.5 J Impact Energy Range Glass Container Impact Test Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-3007
Payment & Shipping Terms
Packaging Details: Professional export packing
Delivery Time: 5-10work days
Payment Terms: D/A,D/P,T/T
Supply Ability: 30 Unit/month
Product Description
UP-3007 Digital Display Glass Container Impact Test Machine Adjustable Energy Glass Bottle Impact Tester
Product Overview

The Glass Container Impact Tester is a specialized instrument designed to evaluate the impact resistance of various glass containers. Based on the energy conservation principle, the pendulum is set to a specific angle corresponding to a predetermined impact energy value, then released to strike the test bottle. The sample's impact resistance is determined by observing whether breakage occurs under the set energy level. This tester provides reliable, accurate, and reproducible test results, making it an essential quality control tool for manufacturers and testing laboratories.

Key Features
  • Flexible sample positioning - Movable loading fixture with both vertical and horizontal adjustment for easy bottle alignment
  • Stainless steel safety shield - Protects operators from glass fragments during testing
  • Precise pendulum suspension - Ensures stable positioning and free rotation/release for accurate impact energy delivery
  • Energy conversion principle - Complies with the law of conservation of energy for reliable test results
  • Adjustable impact settings - Allows users to set impact energy according to specific testing requirements
Technical Specifications
Item Specification
Impact Energy Range 0 ~ 2.5 J
Resolution 0.05 J (0-1.0 J) / 0.1 J (1.0-2.5 J)
Measurement Accuracy ≤ 1.5% FS (percentage of full scale)
Applicable Bottle Diameter Φ 20 ~ 165 mm
Impact Height Range 20 ~ 180 mm
Pendulum Deflection Angle Range 0 ~ 120°
Machine Dimensions (L×W×H) 450 × 300 × 650 mm
Package Dimensions (L×W×H) 610 × 450 × 880 mm
Gross Weight (with package) 38 kg
Product Images

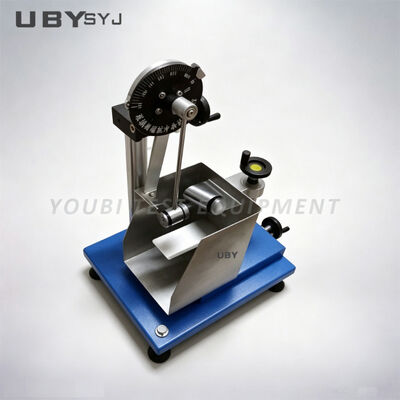

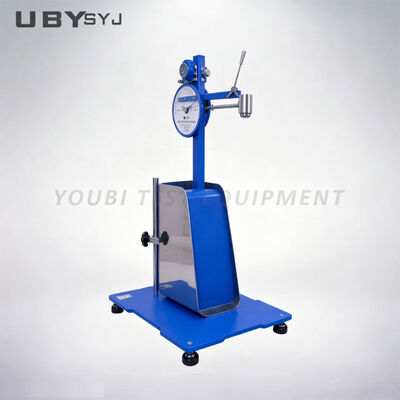

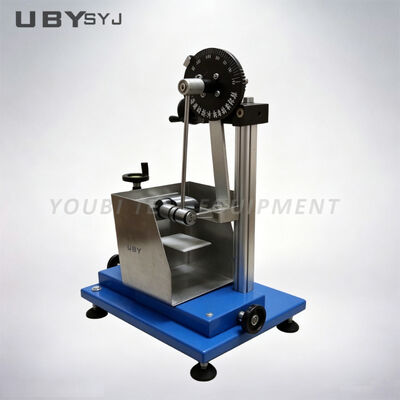

UP-3007 Digital Display Glass Container Impact Test Machine front view UP-3007 Digital Display Glass Container Impact Test Machine side view
Our Service

During the whole business process, we offer Consultative Selling services:

  • Customer Inquiry Process: Discussing testing requirements and technical details, suggesting suitable products, and providing competitive pricing
  • Specifications Customize Process: Creating detailed drawings, providing reference photos, and confirming final solutions and pricing
  • Production and Delivery Process: Manufacturing according to confirmed requirements, providing production updates, conducting calibration, and ensuring timely delivery
  • Installation and After-Sale Service: Providing field installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months for FREE maintenance, and considering sea transportation, we can extend 2 additional months for our customers. If your machine doesn't work, you can contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.
What about the delivery term?
For standard machines in stock: 3-7 working days. For machines not in stock: 15-20 working days after payment is received. We can make special arrangements for urgent requirements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable and start using them. If necessary, we can assist with on-site installation.
