ASTM D7121 Rubber Impact Rebound Tester with Rebound Accuracy ±1% and Pendulum Length 200 ± 0.5 mm for Elastomer Material Resilience Testing

1
MOQ
Negotiable
Price
ASTM D7121 Rubber Impact Rebound Tester with Rebound Accuracy ±1% and Pendulum Length 200 ± 0.5 mm for Elastomer Material Resilience Testing
Features Gallery Product Description Chat Now
Features
Specifications
Applications: Rubber,Auto,Leather,Cloth,Fabric...etc
Service Support: OEM ODM
Indication Range: 0 ~ 100%
Model NO.: UP-3005
Minimum Mark Graduation: 1%
Language: Chinese And English
Pendulum Length: 200 ± 0.5 Mm
Impact Energy: 0.5 J, 0.2 J
Highlight:

ASTM D7121 Rubber Impact Rebound Tester

,

Rebound Accuracy ±1% Impact Testing Machine

,

Pendulum Length 200 ± 0.5 mm Elastomer Material Resilience Test Equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-3005
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5-15 work days
Payment Terms: D/A,D/P,T/T
Supply Ability: 20 Unit/month
Product Description
UP-3005 ASTM D7121 Rubber Impact Rebound Tester Elastomer Material Resilience Test Equipment
Product Introduction

The Rubber Impact Rebound Testing Machine is designed to measure the rebound resilience of rubber, elastomer and polymer materials. Adopting precision pendulum impact principle, the equipment simulates standard impact force to strike the test specimen and accurately calculate the material rebound value based on the swing angle difference.

Featuring stable mechanical structure, high testing precision and simple operation, the machine effectively eliminates manual test errors and provides accurate, repeatable rebound performance data.

Applications

This equipment is widely used for incoming material inspection, product performance verification and formula optimization in rubber and plastic manufacturing industries. It is mainly applicable to rebound performance testing of various rubber and elastic polymer materials, covering industrial production, laboratory research and third-party quality inspection.

Technical Specifications
Item Specifications
Test Principle Pendulum impact rebound test
Rebound Accuracy ±1%
Pendulum Impact Speed 2.0±0.2 m/s
Specimen Thickness 12.5mm (standard specimen, customizable)
Specimen Diameter 29mm (standard)
Test Angle Range 0°~180°
Reading Mode Digital display, automatic data calculation
Machine Feature Automatic reset, anti-vibration structure, high stability
Power Supply AC220V 50Hz
Application Material Vulcanized rubber, thermoplastic elastomer, elastic polymer materials
Product Images

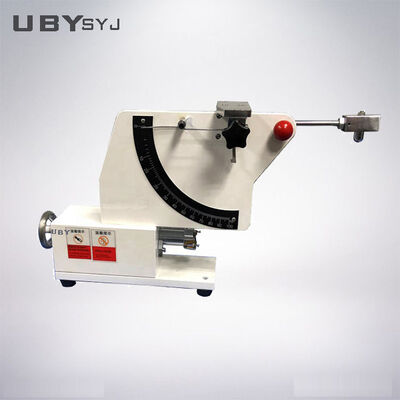

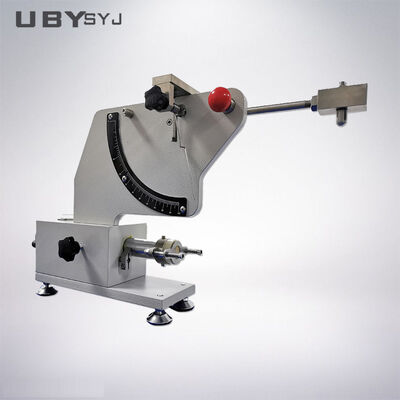

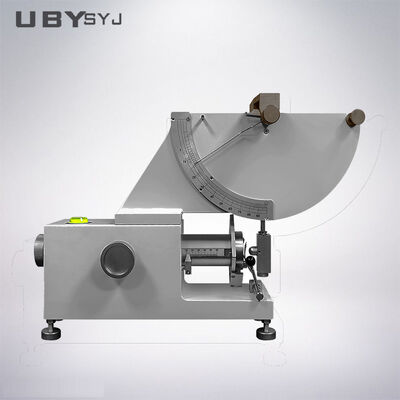

Rubber Impact Rebound Tester equipment overview Compliant Standard Professional Rubber Rebound Resilience Impact Tester Compliant Standard Professional Rubber Rebound Resilience Impact Tester detailed view
Our Service Process
  • Customer Inquiry Process: Discussing testing requirements and technical details, suggesting suitable products, and providing competitive pricing.
  • Specifications Customization Process: Creating detailed drawings for customized requirements, providing reference photos, and confirming final solutions.
  • Production and Delivery Process: Manufacturing according to confirmed requirements, providing production updates, conducting calibration, and ensuring timely delivery.
  • Installation and After-Sales Service: Providing field installation support and comprehensive after-sales service.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of FREE maintenance, extended to 14 months considering sea transportation.

If your machine doesn't work, you can contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days. For machines not in stock: 15-20 working days after payment. We can accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable and begin operation. We also offer on-site installation assistance when necessary.
