UP-3005 Vulcanized Rubber Rebound Testing Machine with Pendulum Length 200 ± 0.5 mm and Rebound Accuracy ±1% for Impact Energy 0.5 J, 0.2 J

1
MOQ
Negotiable
Price
UP-3005 Vulcanized Rubber Rebound Testing Machine with Pendulum Length 200 ± 0.5 mm and Rebound Accuracy ±1% for Impact Energy 0.5 J, 0.2 J
Features Gallery Product Description Chat Now
Features
Specifications
Pendulum Length: 200 ± 0.5 Mm
Service Support: OEM ODM
Language: Chinese And English
Impact Energy: 0.5 J, 0.2 J
Indication Range: 0 ~ 100%
Minimum Mark Graduation: 1%
Model NO.: UP-3005
Applications: Rubber,Auto,Leather,Cloth,Fabric...etc
Highlight:

ASTM D7121 Rubber Impact Rebound Tester

,

Rebound Accuracy ±1% Impact Testing Machine

,

Pendulum Length 200 ± 0.5 mm Elastomer Material Resilience Test Equipment

Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-3005
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5-15 work days
Payment Terms: D/A,D/P,T/T
Supply Ability: 20 Unit/month
Product Description
UP-3005 Vulcanized Rubber Rebound Testing Machine TPE TPU Impact Rebound Resilience Tester
Product Introduction

The Rubber Impact Rebound Testing Machine is designed to measure the rebound resilience of rubber, elastomer and polymer materials. Adopting precision pendulum impact principle, the equipment simulates standard impact force to strike the test specimen and accurately calculate the material rebound value based on the swing angle difference.

Featuring stable mechanical structure, high testing precision and simple operation, the machine effectively eliminates manual test errors and provides accurate, repeatable rebound performance data.

Applications

It is widely used for incoming material inspection, product performance verification and formula optimization in rubber and plastic manufacturing industries. The equipment is mainly applicable to rebound performance testing of various rubber and elastic polymer materials, covering industrial production, laboratory research and third-party quality inspection.

Specifications
Item Specifications
Test Principle Pendulum impact rebound test
Rebound Accuracy ±1%
Pendulum Impact Speed 2.0±0.2 m/s
Specimen Thickness 12.5mm (standard specimen, customizable)
Specimen Diameter 29mm (standard)
Test Angle Range 0°~180°
Reading Mode Digital display, automatic data calculation
Machine Feature Automatic reset, anti-vibration structure, high stability
Power Supply AC220V 50Hz
Application Material Vulcanized rubber, thermoplastic elastomer, elastic polymer materials
Product Images

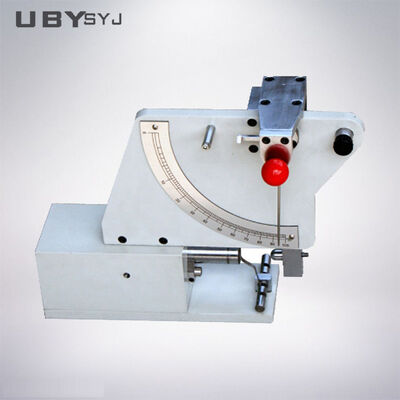

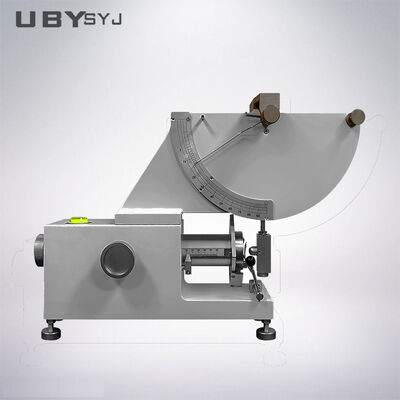

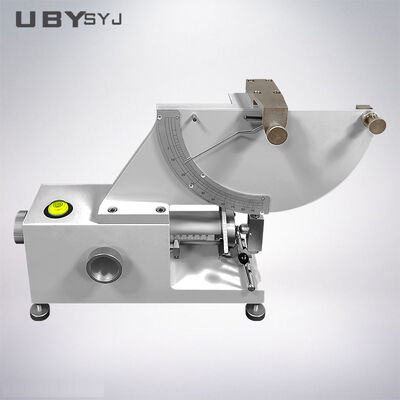

UP-3005 Vulcanized Rubber Rebound Testing Machine Compliant Standard Professional Rubber Rebound Resilience Impact Tester Compliant Standard Professional Rubber Rebound Resilience Impact Tester - Side View
Our Service

During the whole business process, we offer Consultative Selling services:

  • Customer inquiry process: Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
  • Specifications customize process: Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
  • Production and delivery process: We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
  • Installation and after-sale service: Defines installing those products in the field and providing after-sales support.
Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance, while considering sea transportation, we can extend 2 months for our customers.

Moreover, if your machine doesn't work, you can send us an e-mail or call us. We will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?

For our standard machine which means normal machines: If we have stock in the warehouse, delivery is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can I install and use the machine?

Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machines are shipped as a complete unit, which means they are already installed. You just need to connect the power cable and start using it. And if necessary, we can also assist you to install your machine on-site.
