Name: UP-3003 Film Dart Impact Test Machine with DC Electromagnetic Control for Test Mass Range 50g～2000g and Standard Drop Height 660mm～1520mm
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-3003
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Language: Chinese And English

Applications: Plastic, Ceramic, Acrylic, Glass Fiber, Paint And

Test Mass Range: Method A: 50g～2000g；Method B: 300g～2000g

Service Support: OEM ODM

Test Accuracy: ±0.1g (0.1J Precision)

Standard Drop Height: Method A: 660mm；Method B: 1520mm

Model NO.: UP-3003

Dart Head Diameter: Method A: 38mm；Method B: 50.8mm

Highlight:

DC Electromagnetic Control Film Dart Impact Test Machine

Test Mass Range 50g～2000g Free Falling Dart Impact Tester

Standard Drop Height 660mm～1520mm Impact Testing Machine

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-3003

Payment & Shipping Terms

Packaging Details: Professional export packaging

Delivery Time: 5~10 work days

Payment Terms: D/A,D/P,T/T

Supply Ability: 20 Unit/month

Gallery

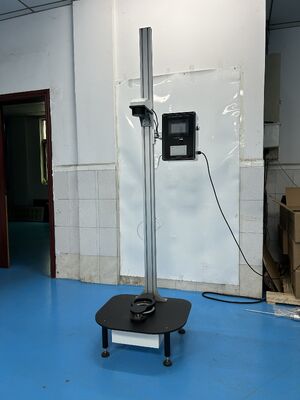

UP-3003 Film Dart Impact Test Machine with DC Electromagnetic Control for Test Mass Range 50g～2000g and Standard Drop Height 660mm～1520mm

Product Description

UP-3003 Film Dart Impact Test Machine

Free Falling Dart Impact Tester for Packaging Material Test

Product Introduction

Free Falling Dart Impact Tester is used to evaluate the impact resistance and fracture toughness of flexible packaging materials. It adopts a free-falling dart impact principle to simulate accidental impact damage during production, transportation and daily use of plastic films, composite films and thin sheet materials.

The machine automatically completes fixed-height dart dropping, accurately detects the minimum impact mass that causes 50% specimen failure, and obtains stable and repeatable anti-impact performance data. Equipped with precise height calibration and stable clamping structure, it features simple operation, high testing accuracy and wide adaptability.

Compliance Standards

ASTM D1709 Standard Test Method for Impact Resistance of Plastic Film by the Free-Falling Dart Method
ISO 7765-1 Plastics - Film and sheeting - Determination of impact resistance by free-falling dart
JIS K7124 Test method for impact resistance of plastic films and sheets by free-falling dart
GB/T 9639.1 Test method for impact resistance of plastic films and sheets by free-falling dart

Technical Specifications

Model	Ball drop impact test machine
Max. height	2 meters
Control way of Dropped ball	DC electromagnetic control
Steel ball weight (optional)	JIS Standard 112, 198, 225, 357, 533, 1042, 2280g Standard GB/T14485: 454g, 761g, 1053g, 1735g
Dimension (W x D x H)	400 * 450 * 2200mm
Weight	About 50Kg
Power	AC220V 50Hz 3A or specified by user

Product Images

Our Service

During the whole business process, we offer Consultative Selling services.

1) Customer Inquiry Process

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

2) Specifications Customize Process

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3) Production and Delivery Process

We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.

4) Installation and After-Sale Service

Defines installing those products in the field and providing after-sales support.

Frequently Asked Questions

1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers.

Moreover, if your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?

For our standard machine which means normal machines, if we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can I install and use the machine?

Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
