Features

Specifications

Applications: Package Carton Box

Model NO.: UP-3001

HS Code: 9024800000

Horizontal Deviation Of Impact Plate: ≤ 1 °

Service Support: OEM ODM

Specification: Refer To The Actual Size Specifications

Deviation Of Horizontal Angle During Des: ≤ 1 °

Drop Height: 100~2000mm (Adjustable)

Max. Specimen Weight: 80kg

Language: Chinese And English

Highlight:

Adjustable Drop Height 100-2000mm Drop Tester

Max. Specimen Weight 80kg Impact Testing Machine

Three-Dimensional Drop Test Single Wing Drop Tester

Basic Infomation

Payment & Shipping Terms

Packaging Details: Professional export packing

Delivery Time: 5~10 work days

Payment Terms: D/A,D/P,T/T

Supply Ability: 30 Unit/month

Gallery

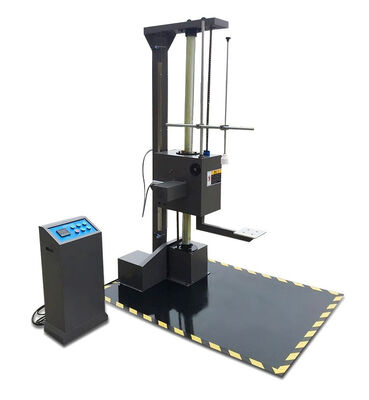

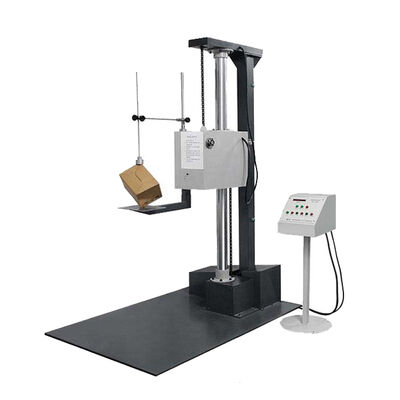

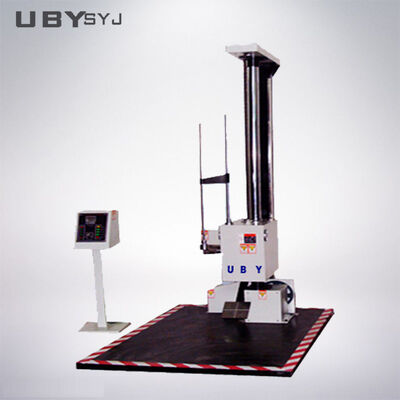

UP-3001 Electric Single Wing Drop Tester with Adjustable Drop Height 100-2000mm for Three-Dimensional Drop Test on Max. 80kg Specimens

Product Description

UP-3001 Electric Single Wing Drop Tester

Professional testing equipment for electronic product carton packaging reliability testing. This electric single wing drop tester simulates collision damage during logistics, transportation, and manual handling processes.

Product Introduction

The Single Wing Drop Tester (also called Single Arm Drop Test Machine) is professional packaging laboratory testing equipment. It lifts packaged products to a preset height via electric screw drive, then releases the sample for free fall to simulate collision damage during logistics, transportation and manual handling.

It supports three-dimensional drop tests on package surface, edge and corner, equipped with digital height display, electromagnetic instant release and buffer protection device. Adopting stable double-column single-wing structure, it features small angle deviation, high test repeatability, safe limit protection and easy operation, widely used for packaging structure verification and finished product reliability inspection.

Compliance Standards

ISO 2248 Packaging vertical drop impact test standard
ISTA International Safe Transit Association transport testing specifications
JIS Z0202 Japanese packaging drop test standard
GB/T 4857.5 China national standard for transportation package drop test

Technical Specifications

Max. sample weight	100KG
Sample size	Three kinds of carton size in your file
Drop platform area	As per three kinds of carton size in your file
Drop height	100-1000mm
Drop test	Corners, edges, faces of sample
Drive mode	Motor drive
Protection device	Induction type protection device
Panel material	45# steel, solid steel plate
Arm material	45# steel
Height display	Digital
Operate mode	PLC
Drop method	Electromagnetic and pneumatic comprehensive support
Machine dimension (L×W×H)	200019002450mm including control box (estimated)
Package	Strong wooden case
Package Dimension (L×W×H)	230022002650mm (estimated)
Package Weight	800KG
Power	Single phase, 220V, 50/60 Hz

Product Images

Our Service

During the whole business process, we offer Consultative Selling services:

Customer Inquiry Process

Discuss testing requirements and technical details
Suggest suitable products to customer for confirmation
Quote the most suitable price according to customer requirements

Specifications Customize Process

Draw related drawings to confirm customized requirements
Offer reference photos to show product appearance
Confirm final solution and pricing with customer

Production and Delivery Process

Produce machines according to confirmed PO requirements
Provide photos showing production progress
Offer final product photos for customer confirmation
Perform factory calibration or third-party calibration
Check and test all details before packing
Deliver products within confirmed shipping time

Installation and After-Sale Service

On-site installation services
Comprehensive after-sales support

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers.

If your machine doesn't work, you can send us an e-mail or call us. We will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

What about the delivery term?

For our standard machines: If we have stock in the warehouse, delivery is 3-7 working days; If there is no stock, normally the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.

Do you accept customization services? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

How can I install and use the machine?

Once you have ordered testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machines are shipped as complete units, which means they are already installed. You just need to connect the power cable and start using it. If necessary, we can also assist you with on-site installation.
