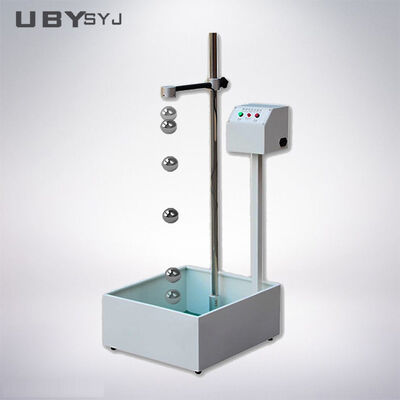

Name: UP-3000 Drop Ball Impact Tester with Stepless Adjustable Drop Height and Multiple Standard Steel Balls for Material Strength Detection
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-3000
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Drop Height Range: 0~2000mm (stepless Adjustable, Customized Height Available)

Service Support: OEM ODM

Steel Ball Weight Tolerance: ±5g

Language: Chinese And English

Model NO.: UP-3000

Standard Steel Ball Weight: 55g~2280g Multiple Standard Steel Balls For Option

Highlight:

Stepless Adjustable Drop Height Drop Ball Impact Tester

Multiple Standard Steel Balls Impact Testing Machine

DC Electromagnetic Automatic Release Falling Ball Drop Impact Tester

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-3000

Payment & Shipping Terms

Packaging Details: Professional export packaging

Delivery Time: 5~10 work days

Payment Terms: D/A,D/P,T/T

Supply Ability: 30 Unit/month

Gallery

UP-3000 Drop Ball Impact Tester with Stepless Adjustable Drop Height and Multiple Standard Steel Balls for Material Strength Detection

Product Description

UP-3000 Drop Ball Impact Tester for Material Strength Detection

Product Introduction

The Falling Ball Drop Impact Tester is designed to verify the impact resistance and structural stability of various materials and finished products. It features DC electromagnetic automatic release for standard free fall of steel balls from adjustable heights, generating stable impact energy. The instrument evaluates sample quality by detecting cracking, deformation, and damage after impact. Equipped with infrared precise positioning and anti-secondary impact design, it ensures highly accurate, repeatable test results.

Compliance Standards

ISO 6603: Impact resistance test for plastics and hard rubber
ASTM D5420 / D3029: Falling ball impact test for rigid materials
JIS K6754 / R3205: Japanese standard for material impact testing
BS 2782: British standard for plastic impact performance
GB/T: Chinese national standards for material impact detection

Applications

Suitable for impact resistance testing of plates, films, and finished parts across multiple industries. Ideal for product certification and daily quality control in:

Plastic Industry
Glass & Acrylic Industry
Electronics & Appliances
Packaging Industry
Automotive & New Materials

Technical Specifications

Item	Specification
Drop Height Range	0~2000mm (stepless adjustable, customized height available)
Drop Control Mode	Electromagnetic automatic release, free of manual operation
Positioning Mode	High-precision infrared positioning for accurate drop point
Standard Steel Ball Weight	55g~2280g multiple standard steel balls for option
Steel Ball Weight Tolerance	±5g
Anti-secondary Impact Function	Yes (effectively avoid secondary impact interference)
Lifting Bracket Speed	15mm/s
Working Power Supply	AC 220V 50Hz
Working Temperature	-20℃ ~ 40℃
Equipment Features	High precision, stable performance, low noise, easy operation, repeatable test data

Our Service Commitment

We offer comprehensive Consultative Selling services throughout the entire business process:

Customer Inquiry Process

Discussing testing requirements and technical details, suggesting suitable products, and providing competitive pricing according to customer requirements.

Specifications Customization Process

Creating detailed drawings for customized requirements, providing reference photos for product appearance, and confirming final solutions and pricing.

Production and Delivery Process

Manufacturing machines according to confirmed PO requirements, providing production progress photos, conducting factory or third-party calibration, and ensuring timely delivery.

Installation and After-Sales Service

Providing field installation services and comprehensive after-sales support to ensure optimal performance.

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of FREE maintenance, extended to 14 months considering sea transportation. If your machine requires service, contact us via email or phone, and we will provide solutions within 24 to 48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable and begin operation. On-site installation assistance is available when necessary.
