Name: UP-6195 Fast Thermal Cycling Chamber with 5~20℃/min Linear Rate JEDEC JESD22 Compliant and SUS304 Stainless Steel Interior
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-6195
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

HS Code: 8479899990

Temp Uniformity: ≤±1.5℃

Warranty: 1 Year

Model NO.: UP-6195

Custom Service: OEM,ODM

Linear Temp Change Rate: 5~20℃/min Full Range Linear

Temp Fluctuation: ±0.3℃

Temperature Range: -70~150ºC

Highlight:

5~20℃/min linear heating & cooling rate Fast Thermal Cycling Chamber

JEDEC JESD22 compliant Environmental Test Chamber

SUS304 stainless steel interior Temperature Test Chamber

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-6195

Payment & Shipping Terms

Packaging Details: Professional Export Wooden Box Packaging

Delivery Time: 10~20 work days

Payment Terms: T/T,D/P,Western Union,Paypal

Supply Ability: 20 Unit/month

Gallery

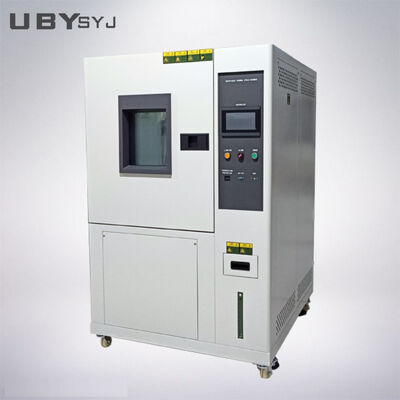

UP-6195 Fast Thermal Cycling Chamber with 5~20℃/min Linear Rate JEDEC JESD22 Compliant and SUS304 Stainless Steel Interior

Product Description

UP-6195 JEDEC JESD22 Fast Thermal Cycling Chamber For Electronic Component Aging Test

Product Introduction

This rapid temperature change test chamber supports linear 5~20℃/min fast heating & cooling rate, complies with IEC 60068, JEDEC JESD22 standards. Widely used for electronics, PCB, lithium battery and auto parts ESS accelerated stress screening test. Stable PLC touch screen control, exported to Vietnam, Thailand, Malaysia, Indonesia and Singapore labs & manufacturing factories.

Design Standards

IEC60068-2, JEDEC JESD22-A104, ISO 16750

Specifications

Item	Specification
Internal Volume	100L (400×500×500 mm W×H×D)
External Dimension	620×1490×1270 mm W×H×D
Temperature Range	Standard: -70℃ ~ +150℃ (Custom: -80℃~+180℃)
Humidity Range (Optional Wet & Heat Version)	20% ~ 98%RH (Valid humidity zone: +10℃ ~ +90℃)
Linear Heating / Cooling Rate	5℃/min, 10℃/min, 15℃/min, 20℃/min (Full range linear, customizable)
Temperature Fluctuation	≤ ±0.3℃ (No-load condition)
Temperature Uniformity	≤ ±1.5℃
Temperature Deviation	≤ ±2.0℃
Max Load Capacity	10kg sample bearing shelf
Inner Chamber Material	Matte SUS304 stainless steel plate, anti-corrosion & easy cleaning
Outer Cabinet Material	Cold rolled steel with electrostatic powder coating
Refrigeration System	Imported brand hermetic compressors, eco-friendly refrigerant, air-cooled condenser
Circulation System	Variable frequency fan + adjustable air louver, uniform air flow circulation

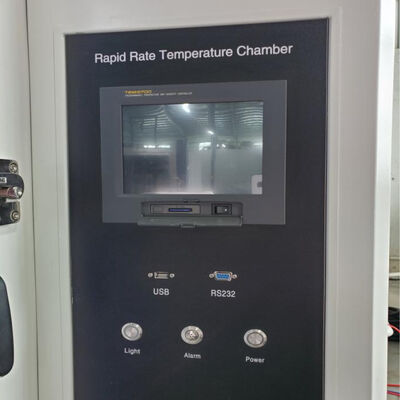

Controller	7-inch bilingual English/Chinese color touch screen PLC programmable controller
Program Memory	Max 120 groups programs, total 1200 segments, cycle repeat up to 999 times
Data Export Interface	USB, RS485, Ethernet remote communication port
Standard Accessories	1×100mm diameter test port, stainless steel sample shelf, LED inner lighting
Multi-layer Safety Protection	Over-temperature, compressor high-pressure, overload, water shortage, emergency stop interlock protection
Power Supply	AC 380V 50Hz 3-phase 5-wire (110V/220V 60Hz customizable for Southeast Asia)
Net Weight	165kg
Working Ambient Condition	Ambient Temp: 5℃ ~ 35℃, Humidity ≤80%RH non-condensing

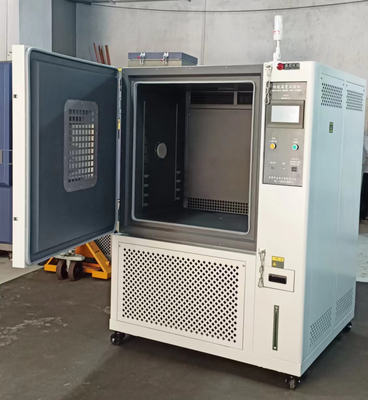

Product Images

Our Service

During the whole business process, we offer Consultative Selling services.

1) Customer Inquiry Process

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

2) Specifications Customize Process

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3) Production and Delivery Process

We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.

4) Installation and After-Sale Service

Defines installing those products in the field and providing after-sales support.

Frequently Asked Questions

1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers. Moreover, if your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?

For our standard machine which means normal machines, if we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can I install and use the machine?

Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
