UP-6196 High Temperature Chamber with Multi-channel Temperature Monitoring and PID Intelligent Control for RT+10℃ ~300℃ Range

1 Unit
MOQ
Negotiable
Price
UP-6196 High Temperature Chamber with Multi-channel Temperature Monitoring and PID Intelligent Control for RT+10℃ ~300℃ Range
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: High Temperature Chamber
Model NO.: UP-6196
Temperature Range: RT+10℃ ~300℃
Control Accuracy: 0.1℃
Temperature Fluctuation: ≦0.5℃
Heating Rate: ≦3℃/Min
Cooling Rate: ≦1℃/Min
Power Supply:: 380V 50Hz, 4.5KW
Highlight:

High Temperature Chamber with PID control

,

Multi-channel Temperature Monitoring Chamber

,

Environmental Test Chamber for RT+10℃ ~300℃
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6196
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
UP-6196 High Temperature Chamber ISO17493 Constant Temperature Oven RT+10~300°C Multi-channel Temperature Monitoring
Product Overview

The UP-6196 High Temperature Chamber is engineered for constant high-temperature aging, baking, and heat resistance testing. It supports steady temperature testing at 180°C and 260°C, fully compliant with ISO 17493 standards. Equipped with a multi-channel temperature monitoring system and precise temperature control, it ensures uniform temperature distribution throughout the workspace. Featuring a reliable heating system, secure door sealing, and user-friendly touch control interface, this chamber is ideal for quality verification, material aging tests, and product heat endurance evaluation in industrial manufacturing and laboratory environments.

Applications
  • Electronic components, PCB boards, and semiconductor parts aging tests
  • Plastic, rubber, and composite material heat resistance & thermal aging tests
  • Automotive accessories and insulation materials high-temperature endurance testing
  • Hardware, coatings, and adhesive constant temperature baking tests
  • Third-party testing laboratories
Technical Specifications
Item Specification
Temperature Range RT+10°C ~ 300°C
Standard Test Condition 180°C Constant Test, 260°C Constant Test
Monitoring System Multi-channel temperature monitoring
Compliance Standard ISO 17493
Heating Rate ≤ 3°C/Min
Cooling Rate ≤ 1°C/Min
Control Accuracy 0.1°C
Temperature Fluctuation ≤ 0.5°C
Temperature Error ≤ ±1°C
Temperature Uniformity ≤ 2°C
Power Supply AC 3Ψ 220V 60/50Hz
Internal Chamber Size 650 × 650 × 650 mm
Exterior Chamber Size (W×H×D) 1000 × 850 × 1350 mm
Weight 500 kg
Temperature Control Mode PID intelligent constant temperature control
Door Structure Heat-insulated sealing door, anti-overheat protection
Operation Interface Touch screen control panel
Product Images

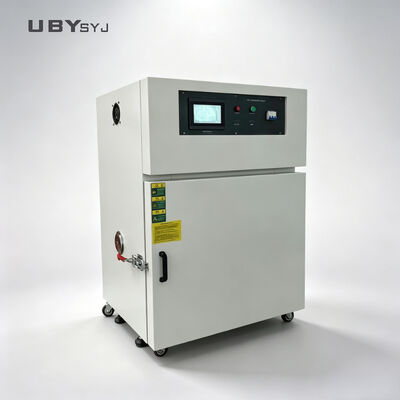

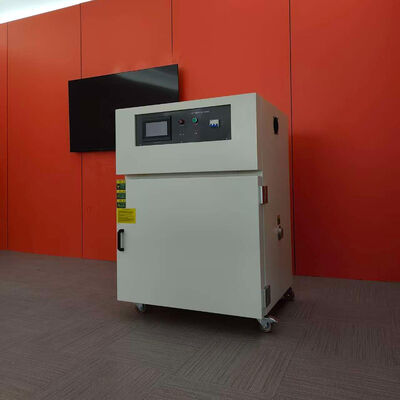

UP-6196 High Temperature Chamber front view UP-6196 High Temperature Chamber interior workspace UP-6196 High Temperature Chamber control panel
Our Service Process

We provide comprehensive consultative selling services throughout the entire business process:

  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Specifications Customization: Create detailed drawings for customized requirements, provide reference photos, and confirm final solutions
  • Production and Delivery: Manufacture according to confirmed requirements, provide production progress photos, conduct calibration, and arrange timely shipping
  • Installation and After-Sales: Provide field installation support and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months to account for sea transportation. If your machine requires service, contact us via email or phone. We will diagnose the issue through conversation or video chat and provide solutions within 24-48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment confirmation. We accommodate urgent requests with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your specific requirements. We provide OEM and ODM services, including placing your logo on the equipment.

How can I install and use the machine?

We provide comprehensive English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. For complex installations, we offer on-site assistance as needed.
