UP-4009 Low Temperature Flexing Testing Machine with Vertical Design and Stainless Steel Construction for Rubber Cold Bending Resistance Testing ISO 5423

1 Unit
MOQ
Negotiable
Price
UP-4009 Low Temperature Flexing Testing Machine with Vertical Design and Stainless Steel Construction for Rubber Cold Bending Resistance Testing ISO 5423
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Low Temperature Flexing Testing Machine
Service Support: OEM ODM
Applications: Leather,Shoes
Language: Chinese And English
Temperature Range: Normal Temperature ~ -30ºC
Uniformity: ≤±0.5ºC/+2ºC-3ºC
Cooling Time: -25ºC~-30ºC(about 80min)
Timing: 0.1~999.9(S,M,H)adjustable
Highlight:

Low Temperature Flexing Testing Machine

,

Rubber Cold Bending Resistance Tester

,

Stainless Steel Footwear Testing Equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-4009
Payment & Shipping Terms
Packaging Details: Professional export packing
Delivery Time: 5-10work days
Payment Terms: D/P,T/T,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
UP-4009 Low Temperature Flexing Testing Machine
ISO 5423 Rubber Cold Bending Resistance Tester
Product Introduction
The UP-4009 Low Temperature Flexing Testing Machine features a vertical design that eliminates the need to bend over when gripping specimens, making operation more convenient and user-friendly. This machine is used to test finished shoes, rubber, plastics, shoe soles, synthetic leather, and other materials in cryogenic or cool environment conditions. Constructed from stainless steel, it can accommodate various fixtures to suit different testing requirements.
Standards Compliance
ASTM D1790, D1593, JIS-K6545
Technical Specifications
Parameter Specification
Inside Size 400×500×400mm (L×W×H)
Fixture Based on actual demand (sole folding, leather folding, shoes folding)
Temperature Range Normal temperature ~ -30ºC
Uniformity ≤±0.5ºC/+2ºC-3ºC
Cooling Time -25ºC~-30ºC (approximately 80 minutes)
Controller LED digital (from Taiwan) P,I,D +S,S,R microcomputer controller
Accuracy Range Setting accuracy: ±0.1ºC, Directed accuracy: ±0.1ºC, Resolution: ±0.1ºC
Cooling System Totally enclosed air-cooled single-stage compression refrigerate mode / French "Taikang" origin / totally enclosed air-cooled re-compression refrigerate mode
Compressor Start Delay 5 minutes
Circular System Temperature, low-noise, air-conditioning-type motor with multi-vane centrifugal wind wheel
Outside Material High-quality carbon steel plate with phosphide electrostatic spray treatment / SUS304 stainless steel hairline treatment
Inside Material SUS304 High-quality stainless steel light board
Insulation Material Rigid polyurethane foam, ultra-fine glass fiber cotton
Standard Configuration Multi-heated glass window with lighting, 2 testing product shelves, test leads holes (25, 50 mm)
Safety Protection Leak current, short circuit, over temperature, motor overheating, over-pressure compressor, overload, over-current protection
Timing 0.1~999.9 (S,M,H) adjustable
Power 2.5KW
Voltage AC380V±10% 50±0.5Hz Three-phase five-wire system
Environmental Temperature 5ºC~+30ºC ≤85% R.H
Note: Above data measured at temperature 25ºC under no-load conditions. Custom non-standard high-low-temperature testing machines available upon request.
Product Images

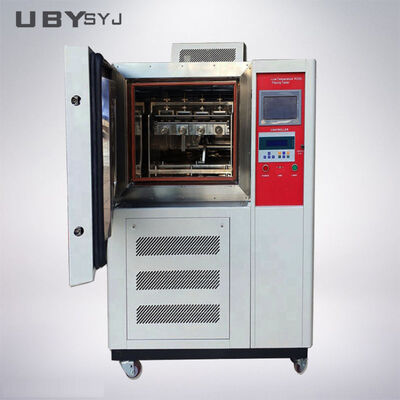

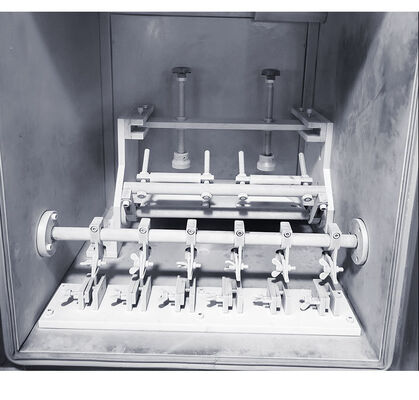

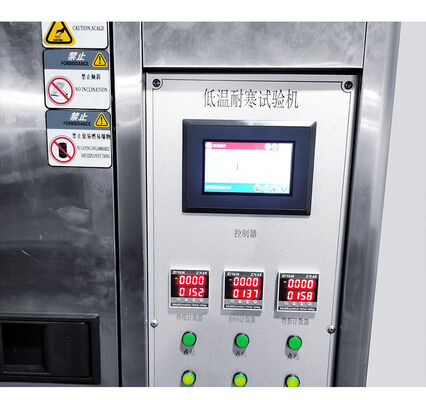

UP-4009 Low Temperature Flexing Testing Machine front view UP-4009 Low Temperature Flexing Testing Machine side view UP-4009 Low Temperature Flexing Testing Machine control panel
Our Service
We provide comprehensive Consultative Selling services throughout the entire business process:
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Customization Process: Create drawings for custom requirements, provide reference photos, and confirm final solutions and pricing
  • Production & Delivery: Manufacture according to confirmed requirements, provide production progress photos, conduct calibration, and arrange timely shipping
  • Installation & Support: Provide field installation and comprehensive after-sales support services
Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I request it? What about the warranty?
Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with FREE maintenance for 12 months (extended to 14 months considering sea transportation). If your machine experiences issues, contact us via email or phone. We'll diagnose the problem through conversation or video chat and provide solutions within 24-48 hours.
2. What is the delivery timeframe?
Standard machines in stock: 3-7 working days. Out-of-stock items: 15-20 working days after payment. Urgent requests receive special arrangements.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the equipment.
4. How do I install and use the machine?
We provide English operation manuals and videos via email. Most machines ship fully assembled - simply connect the power cable to begin use. On-site installation assistance is available when necessary.
