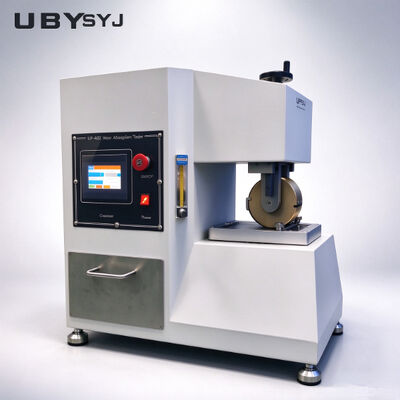

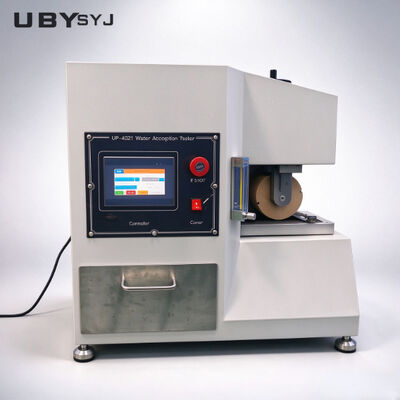

Water Absorption Tester for Shoe Insole Absorption & Desorption Test UP‑4021
Product Overview
The UP-4021 Water Absorption Tester is professional footwear laboratory test equipment for evaluating water-absorbing and water-desorption performance of shoe insole materials.
It simulates real-life walking conditions: test specimens are mounted on a damp base plate and undergo repeated flexing under defined pressure. After preset test cycles or test duration, users calculate water absorption (WA) and water desorption (WD) values to assess material performance.
This tester complies with GB/T20991-2007 Clause 7.2 for footwear safety-testing laboratories and footwear material quality-control workshops.

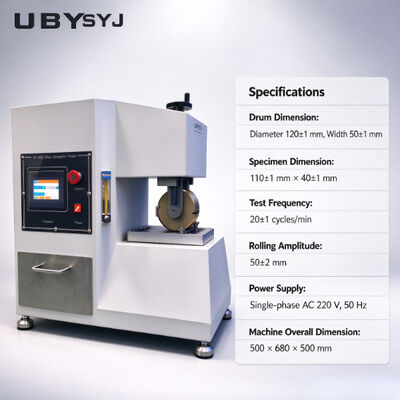

Main Technical Specifications
|
Item
|
Parameter
|
|
Drum dimension
|
Diameter 120±1 mm, Width 50±1 mm
|
|
Specimen dimension
|
110±1 mm × 40±1 mm
|
|
Test frequency
|
20±1 cycles/min
|
|
Rolling amplitude
|
50±2 mm
|
|
Machine overall dimension
|
500 × 680 × 500 mm
|
|
Power supply
|
Single-phase AC 220 V, 50 Hz
|
|
Control
|

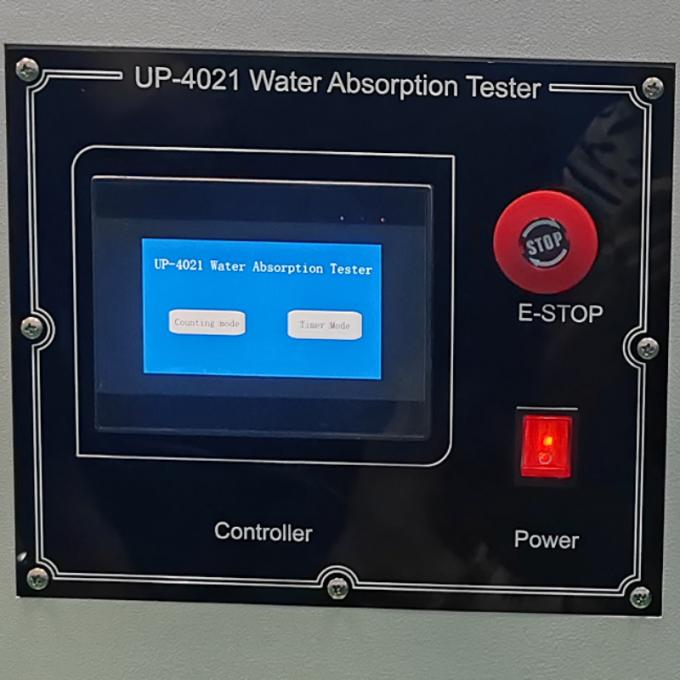

Touch screen controller, support Counting Mode and Timer Mode
|
|
Safety Device
|
Automatic water supply shut-off, automatic test stop function
|
|
Function
|
1.Simulate walking flexing condition of shoe insoles under specified pressure
2.Test material water absorbing property (WA) and water desorption property (WD)
3.Two test modes: counting mode and timer mode; real time display of running status
4.Automatic stop upon completion of preset cycles or time; manual jog and homing function
5.Pump switch for upper water tank water filling, flow adjustable
|
Test Principle:

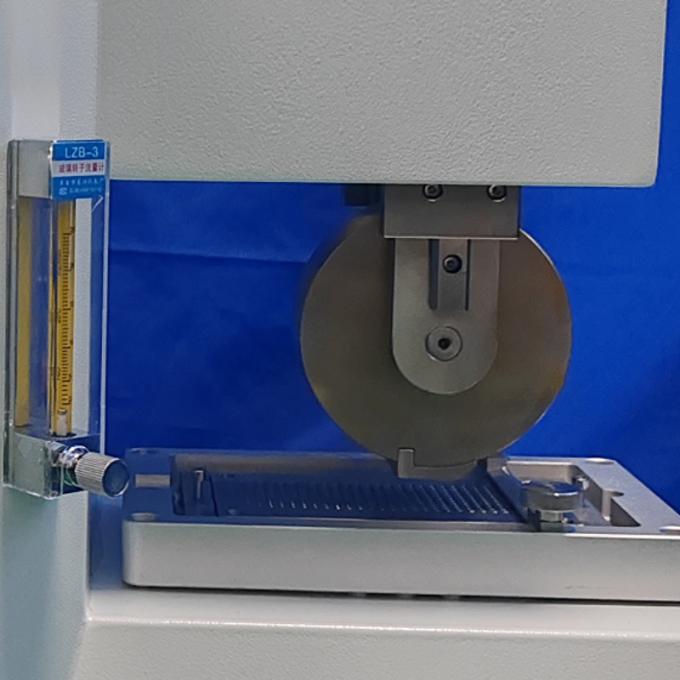

Fix the cut in-sole specimen between stationary fixture and movable fixture.
The brass drum performs reciprocating rolling-flexing over the wet base-plate to simulate repeated bending of shoe insoles during human walking.
Continuous water flows onto specimen surface.
After test completion, weigh specimen to calculate water-absorbing property WA; then condition specimen for 24 hours and re weigh to obtain water-desorption property WD.
Applications:
Quality-control laboratory for safety footwear, work-shoes and casual-shoes manufacturers
Material R&D lab for shoe insoles, insock, footwear textile and synthetic leather
Third-party footwear testing institutes complying with GB/T20991-2007 standard
Contact us for operation manual, quotation and footwear lab testing-solution.
Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.
4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.
FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
