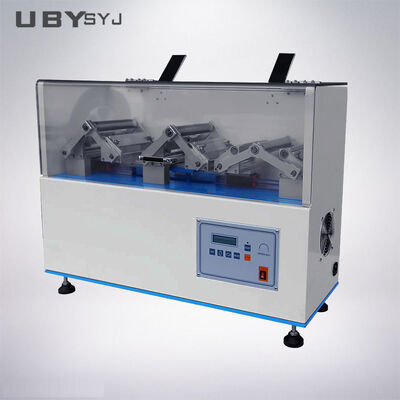

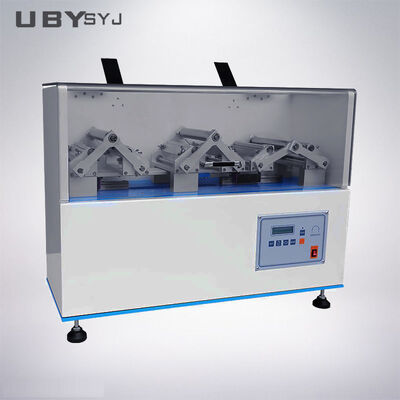

UP-4034 Multi-Station Shoe Sole Flexing Tester with 3 or 6 Stations 90° ± 2° Bending Angle and 125 - 150 cpm Speed

The Shoe Sole Flexing Tester is designed to evaluate the flex resistance and cut growth resistance of shoe outsoles under repeated bending conditions. This instrument is essential for footwear manufacturers and quality control laboratories to assess the durability and service life of sole materials.

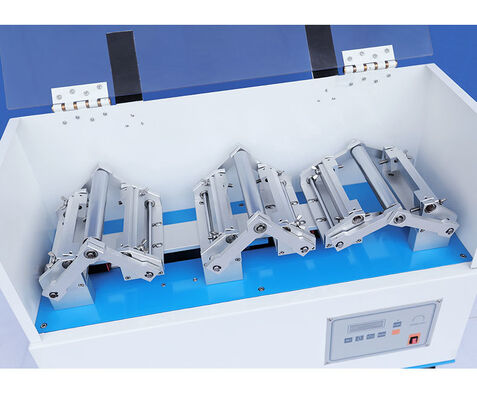

It is particularly applicable to outsoles that have a maximum longitudinal rigidity of 30 N, as specified in relevant standards. The machine measures the flexing resistance of shoe soles under continuous movement by mounting specimens at both grips (one fixed, one movable) and running flexing tests to evaluate incision length differences after specified test cycles.

• ISO 20344 8.4.2
• GB/T 20991 8.4.2 (section)
• ISO 17707
• ISO 17694
• SATRA TM161

Are you a Manufacturer? Do you offer after-sales service? How can I request service? What is the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased includes a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months to account for sea transportation.

If your machine requires service, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24-48 hours.

What is the delivery timeline?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requests receive special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the equipment.

How do I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin use. We offer on-site installation assistance when necessary.
