ISO17235 Compliant Leather Softness Tester with 500g Load for Non-Destructive Detection of Leather Hand Feel

1
MOQ
Negotiable
Price
ISO17235 Compliant Leather Softness Tester with 500g Load for Non-Destructive Detection of Leather Hand Feel
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-4007
Service Support: OEM ODM
Language: Chinese And English
MOQ: 1 PCS
Applications: Leather,Shoes
Specification: Refer To The Actual Size Specifications
Load: 500g
Dial: 0.1-10mm
Highlight:

ISO17235 compliant leather softness tester

,

leather hand feel tester 500g load

,

non-destructive footwear testing equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-4007
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union,PAYPAL
Supply Ability: 20 Unit/month
Product Description
UP-4007 Leather Softness Tester
The Leather Softness Tester is a professional physical testing instrument designed to quantitatively detect the surface softness of natural leather, synthetic leather, coated fabrics, and flexible polymeric materials. It adopts non-destructive detection mode to avoid sample damage, making it widely applicable for raw material incoming inspection, production quality control, and finished goods verification in footwear, luggage, furniture, and automotive leather industries.
Compliance Standards
ISO 17235, IULTCS / IUP 36
Working Principle
The trimmed leather sample is fixed on the instrument test bench with a standard aperture fixture. A standard constant load is applied vertically to the sample surface via a precision probe. The equipment measures the indentation deflection of the leather under fixed pressure, converts the deformation data into intuitive softness values, and provides objective digital evaluation of leather hand feel, replacing subjective manual touching judgment.
Technical Specifications
Testing Mode Digital
Test Load 500 ± 10 g (pneumatic valve drive)
Needle Diameter 4.9 ± 0.1 mm
Test Aperture 35.0 ± 0.1 mm (standard)
Measurement Range 0.1-10 mm
Loading Time Move 11.5 mm within 1.5 ± 0.5 seconds
Effective Test Force 5.5 N~6.13 N
Dimensions 140 x 500 x 170 mm (L x W x H)
Weight 5 kg

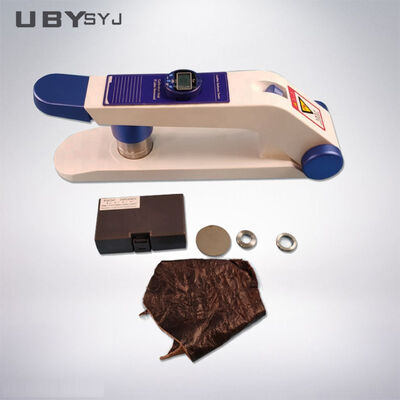

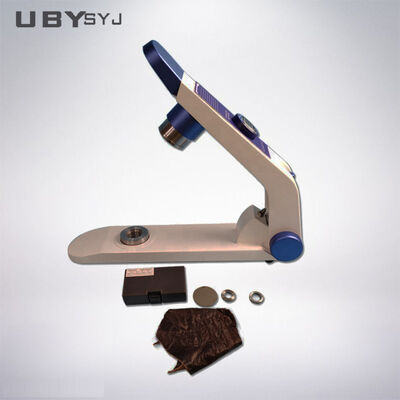

UP-4007 Leather Softness Tester equipment overview Close-up view of Leather Softness Tester probe and test area
Our Service Commitment
We offer comprehensive Consultative Selling services throughout the entire business process:
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Customization Process: Create detailed drawings for customized requirements, provide reference photos, and confirm final solutions
  • Production & Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and ensure timely delivery
  • Installation & Support: Provide field installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of FREE maintenance, extended to 14 months considering sea transportation. If your machine experiences issues, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.
What about the delivery term?
For standard machines in stock: 3-7 working days. For out-of-stock items: 15-20 working days after payment receipt. We accommodate urgent requirements with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable and begin operation. When necessary, we can assist with on-site installation.
