Home /Products/Universal Testing Machine/UP-2002 High Precision ±0.5% Accuracy Touch Screen Dual Column Universal Testing Machine for Tensile Strength Testing

UP-2002 High Precision ±0.5% Accuracy Touch Screen Dual Column Universal Testing Machine for Tensile Strength Testing

1 Unit
MOQ
Negotiable
Price
UP-2002 High Precision ±0.5% Accuracy Touch Screen Dual Column Universal Testing Machine for Tensile Strength Testing
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-2002
Type: Universal Testing Machine
Display: Digital
Resolution: 1/150000
Control: Computer Control
Maxcapacity: 20-100000kN
Accuracy Grade: 0.5
Range Of Speed: 50~400mm/Min
Weight: 100-500Kg
Accuracy: ±0.5%
Power Source: AC110-220V
Effective Testing Space: 400mm Max
Highlight:

High precision universal testing machine

,

Touch screen tensile strength tester

,

Dual column universal testing machine
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-2002
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
UP-2002 High Precision Touch Screen Dual Column Universal Tensile Strength Test Equipment
Product Overview

The UP-2002 Touch Screen Dual-Column Universal Tensile Testing Machine is a high-precision material testing device featuring a rigid double-column structure that ensures stable operation and high load capacity. With interchangeable fixtures, it performs tensile, compression, bending, shearing, peeling, and tearing tests on various materials.

This equipment is widely used for testing metals, plastics, rubber, textiles, packaging materials, leather, cables, and composite materials. It is suitable for factory quality control, laboratory research and development, and academic testing applications.

The intuitive full touch screen interface supports parameter setting, real-time data display, curve plotting, and automatic report generation, significantly enhancing testing efficiency and accuracy.

Compliance Standards
  • ISO 527 - Plastics - Determination of tensile properties
  • ASTM E8 - Metallic materials - Determination of tensile properties
  • ISO 5893 - Rubber, vulcanized or thermoplastic - Determination of tensile stress-strain properties
  • ASTM D638 - Standard test method for tensile properties of plastics
  • ASTM D412 - Standard test methods for vulcanized rubber and thermoplastic elastomers-tension
  • GB/T 228.1 - Metallic materials - Tensile testing at ambient temperature
  • GB/T 1040 - Plastics - Determination of tensile properties
Technical Specifications
Parameter Specification
Max Test Force 5KN / 10KN / 20KN / 50KN (optional)
Force Accuracy Grade 0.5 grade (high precision)
Force Test Resolution 1/500000
Test Speed Range 0.01~500 mm/min
Speed Accuracy ±0.5% of preset speed
Effective Test Stroke 600 mm (800 mm / 1000 mm customizable)
Control Mode Full touch screen intelligent control
Available Test Functions Tension, compression, bending, shearing, peeling and tearing tests
Fixture Configuration Comes with standard universal fixtures; supports customized interchangeable fixtures for diverse samples
Data Output Automatically calculates tensile strength, yield strength, elongation, compression deformation and other indicators; supports real-time curve display and Excel/PDF report export
Protection Function Overload protection, over-travel protection and emergency stop protection
Power Supply 220V/380V, 50Hz (customizable)
Machine Dimension 850*550*1650 mm (standard model)
Machine Weight Approx. 280 kg
Product Gallery

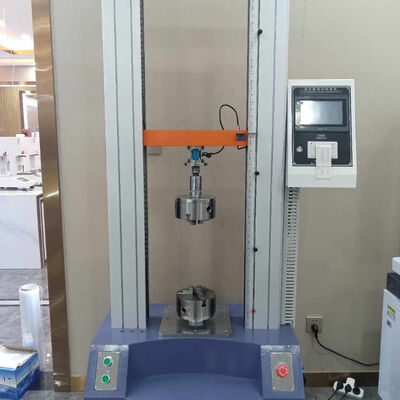

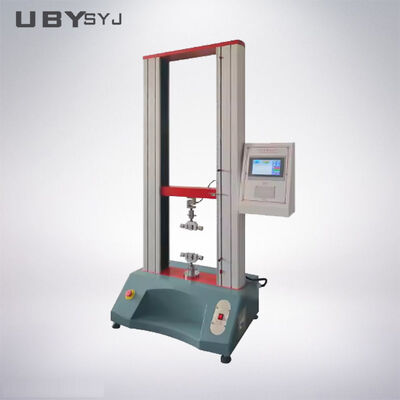

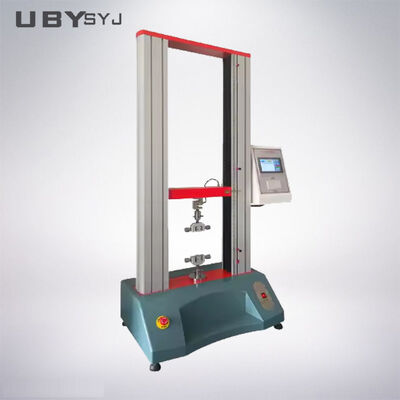

UP-2002 Tensile Testing Machine front view UP-2002 Tensile Testing Machine side view Reliable Digital Tensile Tester BOPP Film Stable Tensile Testing Machine
Our Service Commitment

We provide comprehensive consultative selling services throughout the entire business process:

Inquiry Process

We discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer specifications.

Customization Process

We create detailed drawings for custom requirements, provide reference photos for product appearance confirmation, and finalize solutions and pricing.

Production & Delivery

We manufacture according to confirmed PO requirements, provide production progress photos, conduct factory or third-party calibration, and ensure timely delivery with customer notification.

Installation & Support

We provide field installation services and comprehensive after-sales support to ensure optimal equipment performance.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. Considering sea transportation, we extend an additional 2 months for our customers.

If your machine requires service, contact us via email or phone. We will diagnose the issue through conversation or video chat and provide solutions within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days

Custom orders: 15-20 working days after payment confirmation

We accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including custom logo placement on equipment.

How can I install and use the machine?

We provide English operation manuals and videos via email after order confirmation. Most machines are shipped fully assembled - simply connect the power cable to begin operation. We offer on-site installation assistance when necessary.
