Name: UP-6200 UV Aging Test Chamber with UVA-340/UVB-313 Lamps 0.26~1.13 W/m² Adjustable Irradiance and SUS#304 Stainless Steel Construction
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-6200
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Model NO.: UP-6200

HS Code: 8514199000

Temperature Range: Rt+10ºC~70ºC

Temperature Uniformity: ±2ºC

Temperature Fluctuation: ±0.5ºC

UV Irradiance Range: 0.26~1.13 W/m² Adjustable

UV Light Source: UVA-340 / UVB-313 Fluorescent UV Lamp (customizable)

Materials: SUS#304 Stainless Steel

Custom Service: OEM,ODM

Warranty: 1 Year

Highlight:

UV aging test chamber with UVA-340 lamps

UVB-313 test chamber adjustable irradiance

SUS#304 stainless steel UV test chamber

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE, ISO

Model Number: UP-6200

Payment & Shipping Terms

Packaging Details: Professional export wooden packaging

Delivery Time: 10~20 work days

Payment Terms: D/P,T/T,Western Union

Supply Ability: 20 Unit/month

Gallery

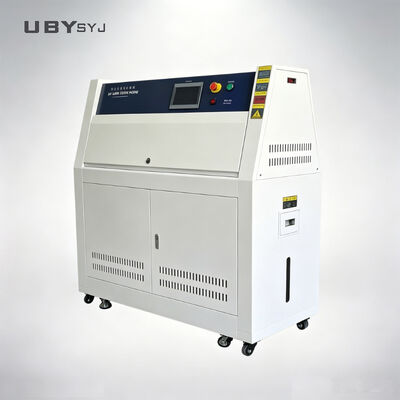

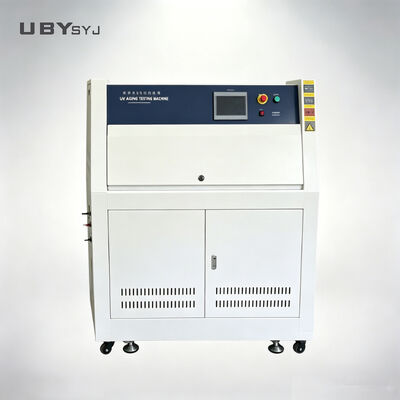

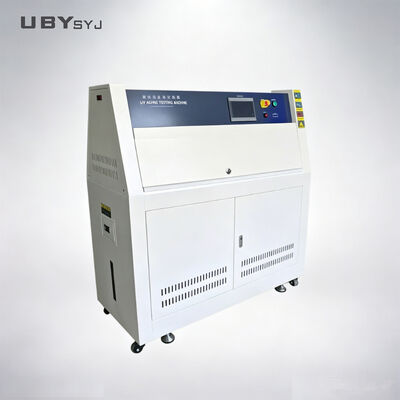

UP-6200 UV Aging Test Chamber with UVA-340/UVB-313 Lamps 0.26~1.13 W/m² Adjustable Irradiance and SUS#304 Stainless Steel Construction

Product Description

UP-6200 UV Aging Test Chamber ASTM G154 Plastic Weathering Tester Machine

Product Overview

The UV aging test chamber simulates real outdoor ultraviolet sunlight, rain, and dew environments to quickly evaluate the weathering resistance of materials. It utilizes professional UV fluorescent lamps as the light source and features automatic cycling of UV irradiation, condensation humidification, and temperature control, significantly shortening material aging test periods.

Equipped with an intelligent touch controller, the chamber ensures stable operation, easy programming, and data storage. It is widely used for raw material incoming inspection and finished product weather resistance verification across various industries.

Main Functions

UV Ultraviolet Irradiation Aging: Simulates solar UV light to test fading, cracking, and chalking of coatings, plastics, and ink
Condensation Humidity Aging: High humidity dew environment to test water resistance, peeling, and blistering of surface layers
Cycle Automatic Operation: Automatic switching between UV irradiation and condensation testing without manual intervention
Real-time Data Recording: Records temperature, UV intensity, running time; test curves can be viewed and exported
Over-protection Function: Includes overheat protection, water shortage alarm, door open safety stop, and overload power cut protection
Program Storage: Saves up to 100 groups of test formulas for one-click calling and repeated batch testing
Remote Communication: Supports RS485 serial port connection to computers for remote monitoring and data management

Technical Specifications

Item	Standard Parameter
Model	UV Accelerated Aging Test Chamber (Tower Type)
Internal Test Size	450×1100×380 mm (W×H×D)
External Cabinet Size	650×1520×600 mm
UV Light Source	UVA-340 / UVB-313 fluorescent UV lamp (customizable)
Lamp Power	40W per lamp, total 8 lamps installed
UV Irradiance Range	0.26~1.13 W/m² adjustable
Temperature Control Range	Irradiation stage: 45℃ ~ 80℃; Condensation stage: 40℃ ~ 60℃
Temperature Control Accuracy	±0.5℃, Uniformity ≤±2℃
Condensation Humidity	≥95%RH (automatic pure water heating condensation)
Controller	7-inch touch screen intelligent controller
Program Storage	Max 100 groups test programs
Communication Interface	RS485 (support PC data export)
Protection Device	Over temperature, water shortage, door interlock, emergency stop, overload protection
Power Supply	AC220V / 380V 50Hz (customized for different countries)
Machine Weight	About 180 KG
Optional Accessories	UV irradiance meter, extra spare UV lamps, sample test racks

Product Images

Our Service Process

Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
Specifications Customization Process: Create drawings for customized requirements, provide reference photos, and confirm final solutions and pricing
Production and Delivery Process: Manufacture according to confirmed requirements, provide production progress photos, conduct calibration, and arrange timely shipping
Installation and After-sales Service: Provide field installation support and comprehensive after-sales service

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory comes with a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2-month extension considering sea transportation. If your machine experiences issues, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment receipt. We accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.

How can I install and use the machine?

We provide English operation manuals and videos via email upon order completion. Most machines are shipped fully assembled - simply connect the power cable to begin operation. We offer on-site installation assistance when necessary.
