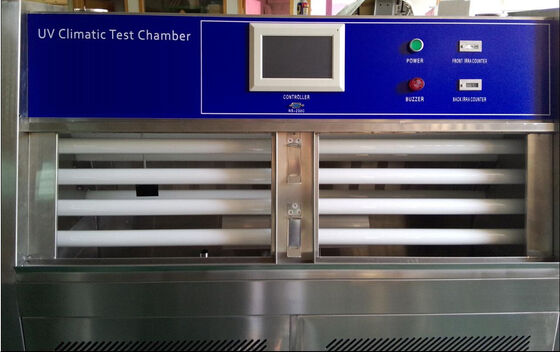

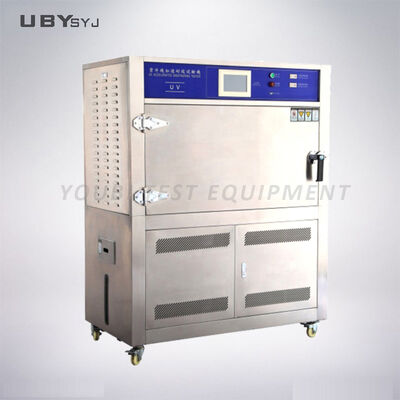

UV Aging Test Chamber Compliant With IEC61215 for Photovoltaic Modules with SUS304 Stainless Steel and Temperature Range Rt+10ºC~70ºC

The UP-6200 Ultraviolet Aging Tester for photovoltaic modules simulates the damage caused by ultraviolet rays in sunlight when modules are exposed to outdoor conditions for extended periods. This advanced equipment reproduces the anti-ultraviolet aging performance of module materials in just days or weeks, equivalent to what would normally take months or years of outdoor exposure.

This Photovoltaic Module UV Pre-treatment Testing Chamber is primarily designed for various testing requirements including IEC61215, IEC61646 UV pre-treatment testing, and bypass diodes evaluation.

• Materials: High-quality materials that block ultraviolet rays with excellent sealing and insulation properties
• UV Irradiation Area: Greater than 2000mm × 2000mm, accommodating simultaneous testing of two 2m × 1m components (customizable)
• Light Source Lifespan: Metal halide lamps with approximately 1000 hours lifespan
• Energy Ratio: UVB accounts for approximately 3% to 10% of total energy
• Radiation Intensity: 100W/m² at wavelengths of 280nm to 385nm for optimal testing periods
• Radiation Uniformity: Better than ±15%
• Monitoring: Real-time monitoring and display of UVA and UVB intensity
• Probes: One UVA (320nm~385nm) and one UVB (280nm~320nm) fiber optic probe
• Module Surface Temperature: 60°C ±5°C with 0.1°C resolution
• Ozone Production: Minimal ozone generation
• Lighting Method: Upward emission with component testing plane perpendicular to light source
• Control System: Touch screen control with real-time monitoring and automatic light source cutoff
• Temperature Display: Real-time graphical display with ±0.1°C measurement accuracy
