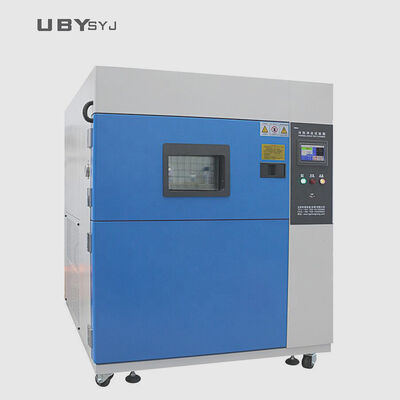

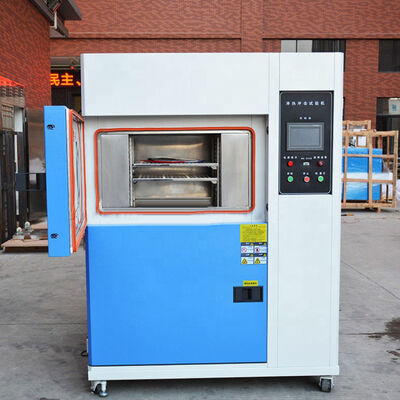

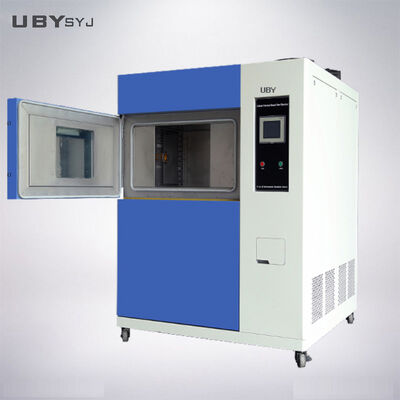

Intelligent Temperature Shock Test Chamber
Professional testing equipment with rapid temperature transition capabilities for evaluating material performance under extreme thermal conditions.
Applications
Thermal shock test chambers evaluate material structures and composite materials by exposing them to instantaneous extreme high and low temperature cycles. This testing identifies chemical changes or physical damage caused by thermal expansion and contraction in the shortest possible time. Suitable for testing LED components, metals, plastics, rubber, electronics, photovoltaic materials, solar components, and various other materials.
Key Features
- Separate high temperature chamber, low temperature chamber, and static test chamber
- Air flow switching method for rapid temperature transition between high and low temperature zones
- Programmable cycle counts and defrost cycles
- Touch screen color LCD controller for easy operation and stable performance
- High temperature accuracy using PID calculation methods
- Selectable starting position with alternating high and low temperature cycles
- Real-time test curve display during operation
- Two-chamber structure with fast conversion speed and short recovery time
- High-performance imported compressors for rapid cooling
- Comprehensive and reliable safety protection systems
- High-reliability design suitable for 24-hour continuous testing operations
Technical Specifications
| Parameter |
Specification |
| Size (mm) |
600 × 850 × 800 |
| Temperature Range |
High chamber: ambient to +150°C | Low chamber: ambient to -50°C |
| Temperature Uniformity |
±2°C |
| Temperature Conversion Time |
10 seconds |
| Temperature Recovery Time |
3 minutes |
| Construction Material |
Shell: SUS304 stainless steel | Liner: SUS304 stainless steel |
| Refrigeration System |
Dual reciprocating compressors (water-cooled) with imported French Taikang compressor and eco-friendly refrigerant |
| Control System |
Korean imported programmable temperature controller |
| Temperature Sensors |
PT100 × 3 |
| Setting Range |
Temperature: -70.00 to +200.00°C |
| Resolution |
Temperature: 0.01°C | Time: 1 minute |
| Output Type |
PID + PWM + SSR control mode |
| Simulation Load (IC) |
4.5kg |
| Cooling System |
Water cooled |
| Compliance Standards |
Meets GB, GJB, IEC, MIL and corresponding test standards |
| Power Supply |
AC380V/50Hz three-phase four-wire AC power |
| Additional Features |
Diffuser and return air control / CM BUS (RS-485) remote monitoring / Liquid nitrogen quick cooling control |
Our Service Process
Customer Inquiry Process
We discuss testing requirements and technical details, recommend suitable products, and provide competitive pricing based on customer specifications.
Custom Specification Process
We create detailed drawings for custom requirements, provide reference photos for product appearance confirmation, and finalize solutions and pricing.
Production and Delivery Process
Machines are manufactured according to confirmed purchase order requirements. We provide production progress photos, conduct factory or third-party calibration, perform comprehensive testing, and arrange secure packaging and timely delivery.
Installation and After-Sales Service
We provide field installation services and comprehensive after-sales support to ensure optimal equipment performance.
Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of environmental chambers and testing equipment. All machines include 12-month warranty with free maintenance. We extend to 14 months considering sea transportation. For technical issues, we provide support via email, phone, or video chat with solutions typically provided within 24-48 hours.
What is your delivery timeline?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. We accommodate urgent requirements with special arrangements.
Do you accept customization and branding?
Yes, we offer both standard and customized machines according to specific requirements. We provide OEM and ODM services including custom branding and logo placement.
How do I install and operate the equipment?
We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. We offer on-site installation assistance when necessary.
