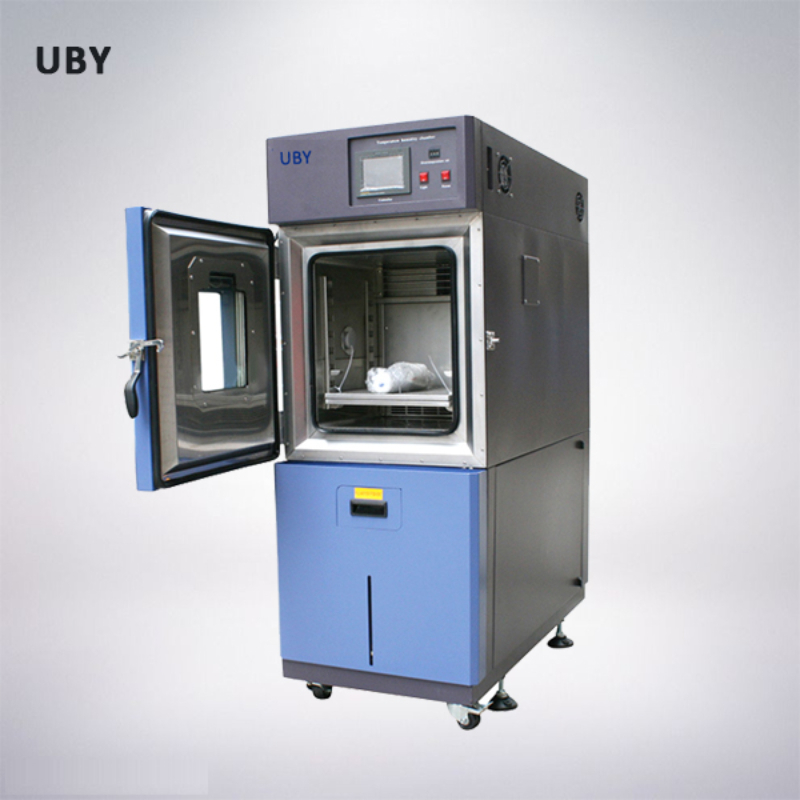

ASTM D1171 static stretching cable aging ozone production chamber simulates and strengthens the conditions of atmosphere ozone, study the role of the law of ozone on rubber (cable), rapidly identification and evaluation of rubber resistance to ozone aging properties and protective efficacy of anti-ozone agents, and then take effective anti-aging measures to improve the life of the rubbers.
| Name | 1000pphm Ozone Test Chamber Static Stretching Cable Aging |
|---|---|
| Model | UP-6122-250 | UP-6122-500 | UP-6122-800 | UP-6122-1000 |
| Internal dimensions (mm) | 600*600*700 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
| Overall dimensions (mm) | 960*1150*1860 | 1180*1350*2010 | 1280*1550*2110 | 1500*1550*2110 |
| Temperature range | 0ºC~100ºC |
| Humidity range | 30%~98%RH |
| Clamps tensile stretch | 5%~35% |
| Power & voltage | AC380V 50HZ |
| Standard | ISO1431; ASTM 1149; IEC 60903; IEC60811-403; JIS K6259; ASTM D1171 |
| Speed rate for cooling | Ambient~0ºC within 20 min |
| Ozone concentration | 1~1000pphm |
| Airflow rate | 0~60L/min |
| Sample holder rotate speed | 0~10r/min |
| Timing range | 0~999 hours |
| Cooling system | Mechanical compression refrigeration system |
| Refrigerant | R404A, R23 |
| Water supply system | Automatic water supply |
| Water purification | Water purification system |
| Thermal Insulation | Polyurethane foam and insulation cotton |
Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
Defines installing those products in the field and providing after-sales support.
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers. Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
