Programmable Thermal Shock Test Chamber with Precision-engineered Airflow and Intuitive Touchscreen Controls

1 Unit
MOQ
$599~$8999
Price
Programmable Thermal Shock Test Chamber with Precision-engineered Airflow and Intuitive Touchscreen Controls
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-6118
Warranty: 1 Year
Additional Service: Support Customer Customization
Custom Service: OEM,ODM
Color Service: Support Customer Customization
Size Service: Support Customer Customization
Third-Party Calibration Service: Support Customer Customization
Internal Material: Stainless Steel304
External Material: Stainless Steel/Spray Paint
Transport Package: Professional Export Wooden Box Packaging.
Specification: Refer To The Actual Size Specifications
Trademark: None
Origin: China
HS Code: 8514199000
Production Capacity: 20 Unit/Month
Product Name: Constant Temperatrue And Humidity Chamber
Highlight:

Programmable Environmental Test Chamber

,

Precision-engineered Airflow Thermal Shock Test Chamber

,

Intuitive Touchscreen Controls Temperature Impact Test Chamber
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6118
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5~15 work days
Payment Terms: T/T; D/P; Wester Union; Paypal; Money Gram
Supply Ability: 30 Unit/month
Product Description
Programmable Temperature Impact Test Chamber
The Climate Thermal Shock Test Chamber is advanced environmental testing equipment designed for temperature testing and thermal shock testing applications. This precision instrument simulates extreme weather conditions to assess product performance and reliability across electronics, automotive, aerospace, and various industrial sectors.
Key Features
  • Static high temperature groove, low temperature groove, and test groove configuration
  • Wind path changing method for thermal shock testing between high and low temperature zones
  • Programmable rotation times and defrost cycles
  • Intuitive touchscreen color LCD controller for stable, easy operation
  • High temperature accuracy using PID calculation methods
  • Selectable start-move positions with high/low temperature rotation
  • Real-time test curve display during operation
  • Two-box structure for rapid temperature conversion and short recovery time
  • High-performance imported compressors for fast cooling
  • Comprehensive safety protection devices
  • High reliability design suitable for 24-hour continuous testing
Technical Specifications
Parameter Specification
Size (mm) 600 × 850 × 800
Temperature Range High greenhouse: ambient ~ +150°C
Low greenhouse: ambient ~ -50°C
Temperature Uniformity ±2°C
Temperature Conversion Time 10 seconds
Temperature Recovery Time 3 minutes
Construction Material Shell: SUS304 stainless steel plate
Liner: SUS304 stainless steel plate
Refrigeration System Dual reciprocating compressors (water-cooled) with imported French Taikang compressor group and environmentally friendly refrigerant
Control System Korean imported programmable temperature controller
Temperature Sensor PT100 × 3
Setting Range Temperature: -70.00 to +200.00°C
Resolution Temperature: 0.01°C / Time: 1 minute
Output Type PID + PWM + SSR Control mode
Simulation Load (IC) 4.5kg
Cooling System Water cooled
Compliance Standards Meets GB, GJB, IEC, MIL, and corresponding test standards
Power Supply AC380V/50HZ Three-phase four-wire AC power
Optional Features Diffuser and return air palate control device / CM BUS (RS-485) remote monitoring / LN2 liquid nitrogen quick cooling control

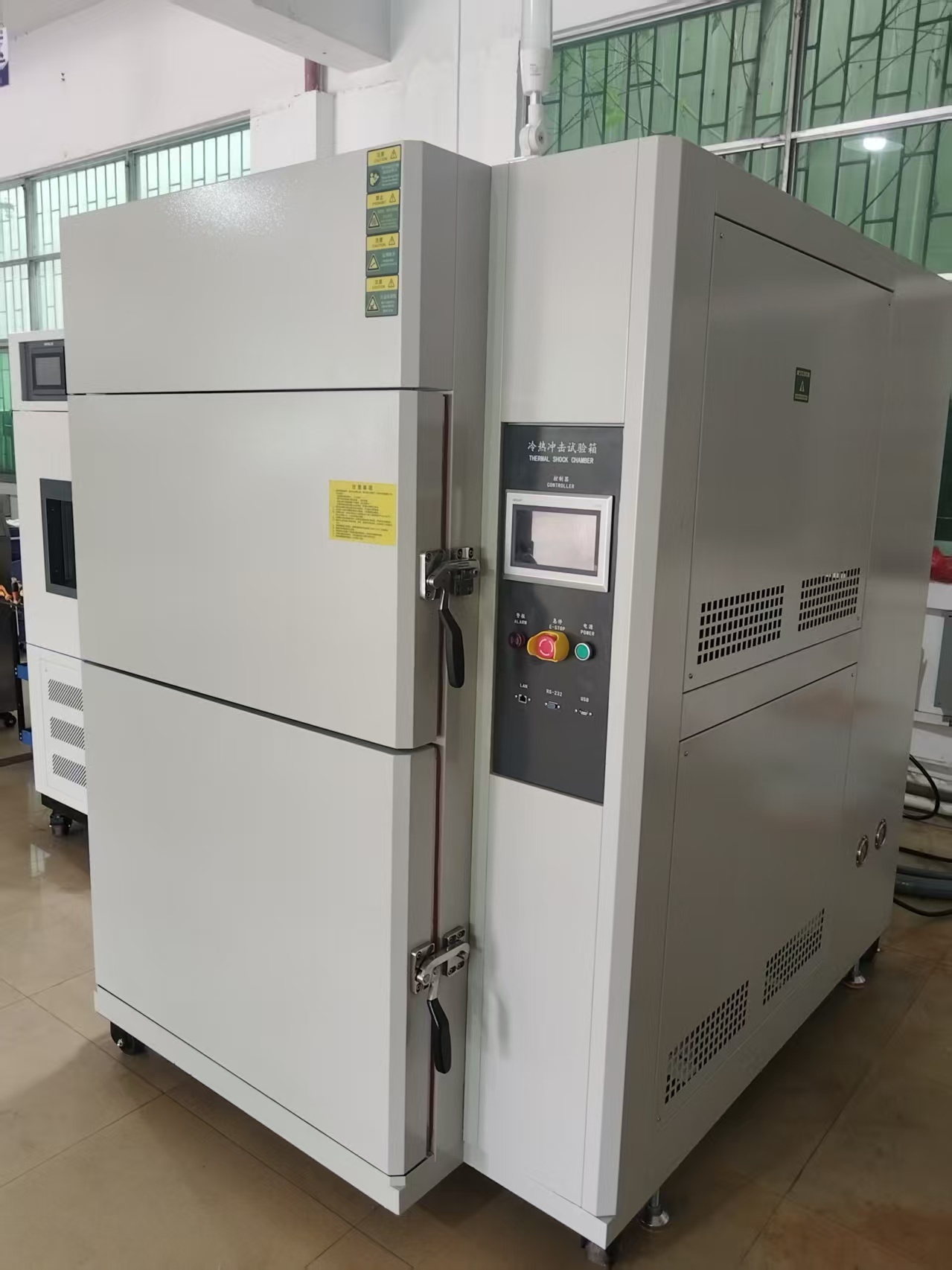

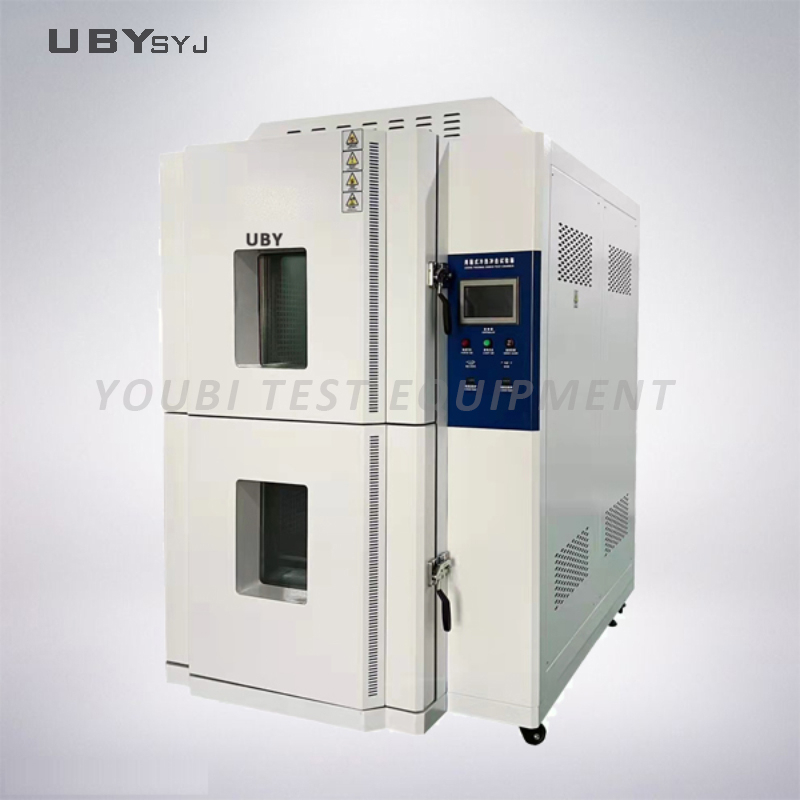

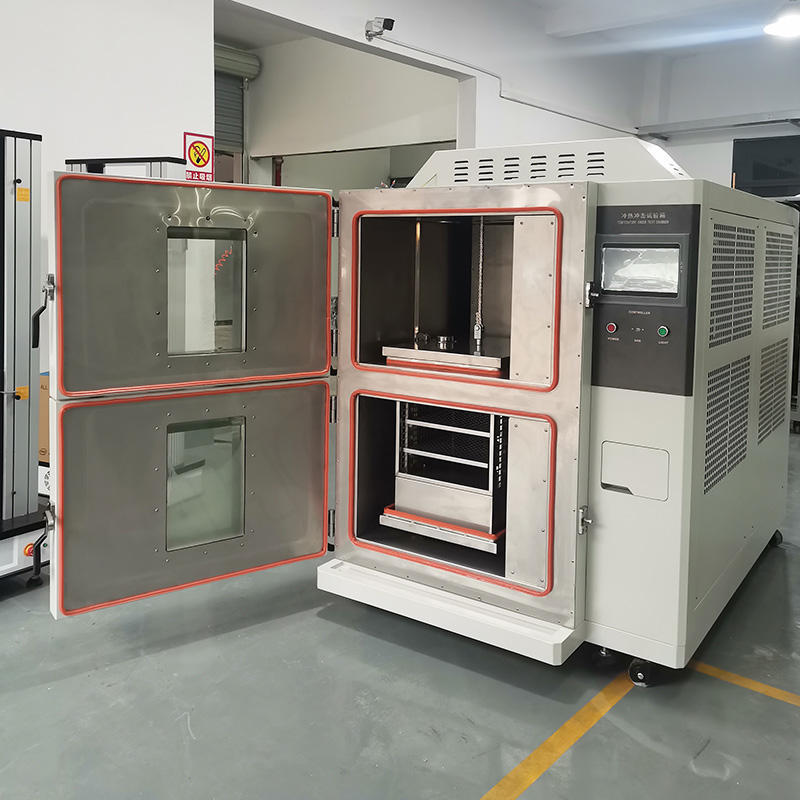

Product Images
Programmable Thermal Shock Test Chamber with Precision-engineered Airflow and Intuitive Touchscreen Controls 0 Programmable Thermal Shock Test Chamber with Precision-engineered Airflow and Intuitive Touchscreen Controls 1 Programmable Thermal Shock Test Chamber with Precision-engineered Airflow and Intuitive Touchscreen Controls 2 Programmable Thermal Shock Test Chamber with Precision-engineered Airflow and Intuitive Touchscreen Controls 3
Our Service Process
  • Customer Inquiry: Technical consultation and requirement analysis with product recommendations and competitive pricing
  • Customization: Detailed drawings and reference photos for specification confirmation and final solution development
  • Production & Delivery: Quality-controlled manufacturing with progress updates, factory calibration, and timely shipping
  • Installation & Support: Professional field installation and comprehensive after-sales service
Frequently Asked Questions
Are you a manufacturer? Do you offer after-sales service? How can I request service? What is the warranty policy?
Yes, we are professional manufacturers of environmental chambers and testing equipment. All machines include 12-month warranty with extended coverage for sea transportation. For service requests, contact us via email or phone for prompt technical support and problem resolution within 24-48 hours.
What is the delivery timeframe?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Expedited arrangements available for urgent requirements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer comprehensive customization including OEM and ODM services with your logo application on the equipment.
How do I install and operate the machine?
We provide complete English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin testing. On-site installation assistance is available when needed.
