Name: UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temp Conversion and 3min Recovery Time
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-6118
Price: 5,299.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Model NO.: UP-6118

Warranty: 1 Year

Additional Service: Support Customer Customization

Custom Service: OEM,ODM

Color Service: Support Customer Customization

Size Service: Support Customer Customization

Third-Party Calibration Service: Support Customer Customization

Internal Material: Stainless Steel 304

External Material: Stainless Steel/Spray Paint

Specification: Refer To The Actual Size Specifications

Temp Conversion Time: 10s

Temp Recovery Time: 3min

Highlight:

Stainless Steel 304 Thermal Shock Testing Chamber

10s Temp Conversion Thermal Shock Testing Chamber

3min Temp Recovery Environmental Test Chamber

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-6118

Payment & Shipping Terms

Packaging Details: Professional Export Wooden Box Packaging

Delivery Time: 5~15 work days

Payment Terms: T/T; D/P; Wester Union; Paypal; Money Gram

Supply Ability: 30 Unit/month

Gallery

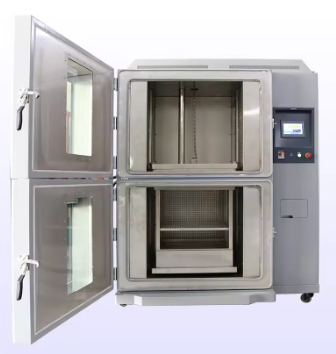

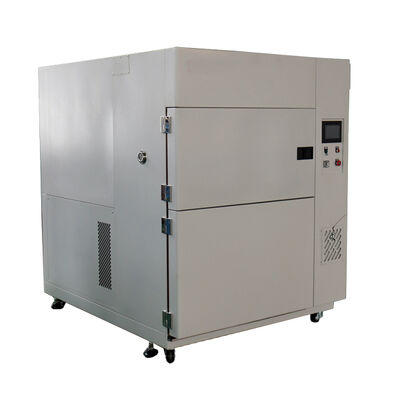

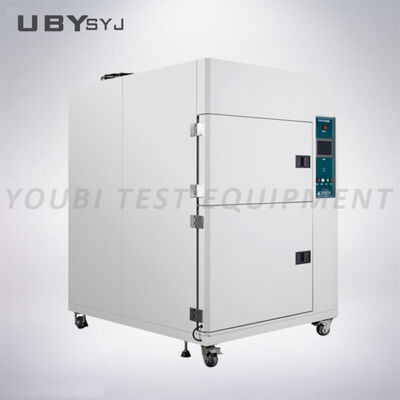

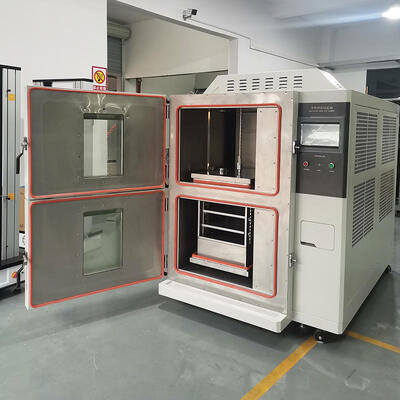

UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temp Conversion and 3min Recovery Time

Product Description

UP-6118 Precise Temperature Cycling and Environmental Two-Box Type Thermal Shock Testing Chamber

This advanced thermal shock testing chamber features a two-box design with separate high and low temperature accumulation slots, enabling rapid temperature transitions for precise environmental testing applications.

Key Specifications

Temperature range: High greenhouse: ambient to +150°C | Low greenhouse: ambient to -50°C
Temperature uniformity: ±2°C
Temperature conversion time: 10 seconds
Temperature recovery time: 3 minutes
Simulation load capacity: 4.5kg

Technical Performance

Temperature fluctuation: ±0.3°C (at room temperature +25°C, no-load)
Temperature uniformity: ±0.5°C
Strike response time: -40°C to +150°C in less than 5 minutes

Construction Features

Inner case material: Mirror stainless steel (SUS 304)
Outer case material: Brushed stainless steel plate (SUS 304)
Insulation: High temperature slot - aluminum silicate insulation cotton | Low temperature slot - high density PU foam
Heating system: Stacked fins radiator pipe stainless steel electric heaters
Air circulation: Stainless steel extended axis with wing-type fan blades
Door configuration: Single-piece door, left-opening

Refrigeration System

Compressor: French "Taikang" original imported fully closed high-efficiency compound superposition
Cooling medium: Environmentally friendly R-507 / R-23
Condenser: Water-cooled shell condenser
Evaporator: Fins style multi-section automatic load capacity adjustment
Expansion system: Capacity control refrigeration system (capillary)

Technical Parameters

Chamber Size	600 × 850 × 800 mm
Control System	Korea imported programmable temperature controller
Temperature Sensor	PT 100 × 3
Setting Range	Temperature: -70.00 to +200.00°C
Resolution	Temperature: 0.01°C \| Time: 1 minute
Output Type	PID + PWM + SSR Control mode
Cooling System	Water cooled
Compliance Standards	GB, GJB, IEC, MIL corresponding test standards
Power Supply	AC380V/50HZ Three-phase four-wire

Our Comprehensive Service

Customer Inquiry Process

We discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer specifications.

Customization Process

We create detailed drawings for custom requirements, provide reference photos, and confirm final solutions and pricing with customers.

Production and Delivery

Machines are manufactured according to confirmed PO requirements with production progress photos provided. Final calibration and testing ensure quality before secure packaging and timely delivery.

Installation and Support

Professional installation services and comprehensive after-sales support ensure optimal performance and customer satisfaction.

Frequently Asked Questions

Are you a manufacturer? What about warranty and after-sales service?

Yes, we are professional manufacturers of environmental chambers and testing equipment. All machines include a 12-month warranty with free maintenance. Extended warranty options available. Technical support provided via email, phone, or video chat with solutions typically provided within 24-48 hours.

What is your delivery timeline?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Expedited arrangements available for urgent requirements.

Do you accept customization and branding?

Yes, we offer comprehensive OEM and ODM services including custom specifications and logo placement on machines.

How do I install and operate the equipment?

Most machines are shipped fully assembled. We provide English operation manuals and videos. Simply connect power cables to begin operation. On-site installation assistance available when necessary.
