Name: UP-6118 Temperature Shock Test Chamber Compliant With Multiple International Standards Featuring Stainless Steel 304 Construction and Rapid Temperature Conversion
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-6118
Price: 5,299.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Model NO.: UP-6118

Warranty: 1 Year

Additional Service: Support Customer Customization

Custom Service: OEM,ODM

Color Service: Support Customer Customization

Size Service: Support Customer Customization

Third-Party Calibration Service: Support Customer Customization

Temperature Range: -40 ~ +80ºC

High Temperature Range: 60 ~ 100ºC

Heating Speed: +60~+100ºC About 10 Minutes

Cold Temperature Range: -65 ~ 0ºC

Cooling Speed: Ambient ~-65ºC About 65 Minutes

Internal Material: Stainless Steel 304

External Material: Stainless Steel/Spray Paint

Highlight:

Compliant Temperature Shock Test Chamber

Stainless Steel 304 Thermal Shock Test Chamber

Rapid Temperature Conversion Environmental Test Chamber

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-6118

Payment & Shipping Terms

Packaging Details: Professional Export Wooden Box Packaging

Delivery Time: 5~15 work days

Payment Terms: T/T; D/P; Wester Union; Paypal; Money Gram

Supply Ability: 30 Unit/month

Gallery

UP-6118 Temperature Shock Test Chamber Compliant With Multiple International Standards Featuring Stainless Steel 304 Construction and Rapid Temperature Conversion

Product Description

UP-6118 Temperature Shock Test Chamber

Reliable and standardized temperature shock test chamber compliant with multiple international standards for testing material durability under extreme temperature conditions.

Applications

Thermal shock test chamber evaluates material structure and composite materials by exposing them to instantaneous extreme high and low temperature cycles. Tests thermal expansion and contraction effects causing chemical changes or physical damage. Suitable for LED, metal, plastic, rubber, electronics, photovoltaic, solar, and other materials.

Key Features

Static high temperature groove, low temperature groove, and test groove design
Wind path changing method for temperature shock between high and low temperature zones
Configurable rotation times and defrost cycles

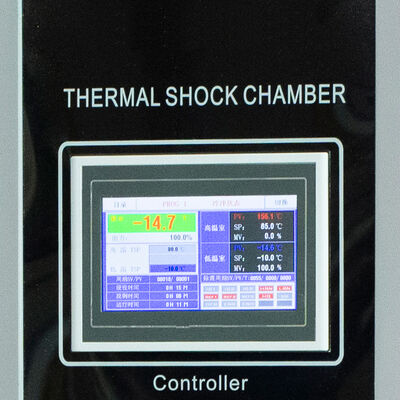

Touch color liquid crystal controller for easy operation and stability
High temperature accuracy using PID calculation methods
Selectable start position with high and low temperature rotation

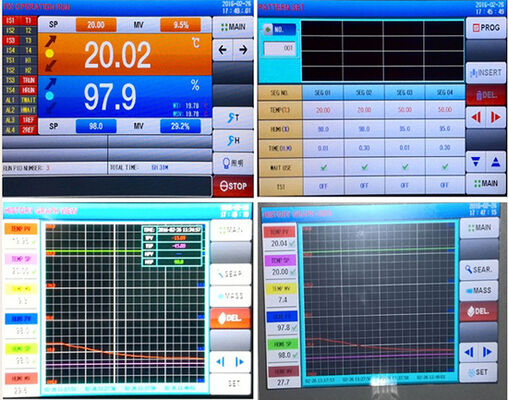

Real-time test curve display during operation
Fast two-box structure conversion with short recovery time
High-performance imported compressor for rapid cooling
Comprehensive and reliable safety protection systems
High reliability design suitable for 24-hour continuous testing

Technical Specifications

Parameter	Specification
Size (mm)	600 × 850 × 800
Temperature Range	High greenhouse: ambient ~ +150°C Low greenhouse: ambient ~ -50°C
Temperature Uniformity	±2°C
Temperature Conversion Time	10 seconds
Temperature Recovery Time	3 minutes
Material	Shell: SUS304 stainless steel plate Liner: SUS304 stainless steel plate
Refrigeration System	Dual reciprocating compressors (water-cooled), French Taikang compressor, environmentally friendly refrigerant
Control System	Korean imported programmable temperature controller
Temperature Sensor	PT100 × 3
Setting Range	Temperature: -70.00 to +200.00°C
Resolution	Temperature: 0.01°C / Time: 1 minute
Output Type	PID + PWM + SSR Control mode
Simulation Load (IC)	4.5kg
Cooling System	Water cooled
Compliance Standards	GB, GJB, IEC, MIL standards
Power Supply	AC380V/50HZ Three-phase four-wire
Expansion Features	Diffuser and return air palate control/CM BUS (RS-485) remote monitoring/LN2 liquid nitrogen quick cooling

Our Service Process

Customer Inquiry Process

Discuss testing requirements and technical details, recommend suitable products, and provide competitive pricing.

Specifications Customization

Create detailed drawings for custom requirements, provide reference photos, and confirm final solution and pricing.

Production and Delivery

Manufacture according to confirmed specifications, provide production progress photos, conduct calibration, and arrange timely shipping.

Installation and After-Sales

Provide field installation support and comprehensive after-sales service.

Frequently Asked Questions

Are you a manufacturer? What about warranty and after-sales service?

Yes, we are professional manufacturers of environmental chambers and testing equipment. All machines include 12-month warranty with free maintenance. Extended warranty available for sea transportation. Technical support provided via email, phone, or video chat with solutions within 24-48 hours.

What is the delivery time?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Expedited delivery available for urgent requirements.

Do you accept customization and OEM services?

Yes, we offer both standard and customized machines according to your specifications. OEM and ODM services available including custom branding.

How do I install and operate the machine?

We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance available when required.
