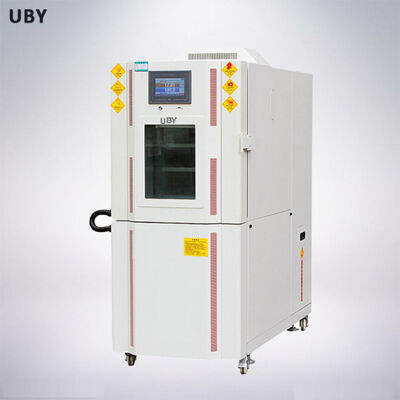

Name: Intelligent Environmental Test Chamber with Temperature Range -40~+150ºC, Humidity Range 20%~98%, and Low Energy Consumption
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-6195
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Warranty: 1 Year

Custom Service: OEM, ODM

Color Service: Support Customer Customization

Size Service: Support Customer Customization

Third-Party Calibration Service: Support Customer Customization

Temperature Range: -40~+150ºC

Humidity Range: 20%~98%

Cooling Speed: 1ºC/Min In Average (Without Loading)

Heating Speed: 3ºC/Min In Average (Without Loading)

Product Name: Constant Temperatrue And Humidity Chamber

Highlight:

Temperature Range -40~+150ºC Environmental Test Chamber

Humidity Range 20%~98% Constant Temperature and Humidity Chamber

Low Energy Consumption Climatic Test Chamber

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-6195

Payment & Shipping Terms

Packaging Details: Professional Export Wooden Box Packaging

Delivery Time: 5-15 work days

Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram

Supply Ability: 30 Unit/month

Gallery

Intelligent Environmental Test Chamber with Temperature Range -40~+150ºC, Humidity Range 20%~98%, and Low Energy Consumption

Product Description

Intelligent Efficient Constant Humidity Temperature Test Chamber With Low Energy Consumption

Environmental Temperature and Humidity Test Chambers feature temperature change rates from 1 to 3°C per minute and controlled humidity from 10% to 95%. Available in 6 standard sizes with interior volumes of 100 to 1000 Liters, with custom sizes available. Advanced cycling models offer temperature change rates from 3 to 15°C with controlled humidity from 10% to 95%.

Applications

Simulate test environments with different temperature and humidity conditions
Cyclic testing including climatic conditions: holding test, cooling-off test, heating-up test, moistening test, and drying test
Cable port with flexible silicone plug for cable routing during operational testing
Uncover product weaknesses through accelerated time-effect testing

Chamber Design Features

High performance with quiet operation (68 dBA)
Space-saving design for flush wall installation
Full thermal break around doorframe
One 50mm diameter cable port with flexible silicone plug
Accurate wet/dry-bulb humidity measurement system for easy maintenance

Programmable Controller

PLC controller for test chamber operation
Step types include: ramp, soak, jump, auto-start, and end
RS-232 interface for computer connectivity and data output

Technical Specifications

Specification	Details
Working Chamber Dimensions	5, 10, 20, 50, 100 cubic meters
Working Chamber Innage	2000 x 3000 x 2200mm
Exterior Dimensions	2500 x 3600 x 2500mm
Temperature Range	-20°C, -40°C, -60°C, -70°C to -80°C (optional)
Temperature Fluctuations	±0.5°C
Temperature Conformity	±5°C
Heating Rate	1.2~2°C/min
Cooling Rate	0.7~1°C/min (linear temperature change rate available as required)
Laboratory Structure	Unity consists of laboratory (single door laminboard), electric control cabinet, and refrigerator cabinet
Outer Wall Material	High end colored copper sheet
Inner Wall Material	SUS304 stainless steel, corrosion proof, easy to clean
Thermal Insulation Material	Rigid polyurethane foam
Ventilation System	Centrifugal fan with adjustable air volume tuyere
Door Configuration	Single door with double layer stainless steel and silicon rubber double seal; double door available for larger volumes
Observation Window	260 x 380mm electroplating film damp-proof insulating window with 11W Philips fluorescent lamp
Programmable Controller	Korean Samwontech TIME880 colorful touch screen
Refrigeration System	German BITZER Hermetic compressor
Ventilation Material	SUS304 first class mirror panel with hot wind positive loop system
Heating System	Nickel-chrome heating wire
Humidification System	Nickel-chrome humidification pipe
Power Supply	AC 380V 50HZ 6K

Our Service

Customer Inquiry Process

Discuss testing requirements and technical details, suggest suitable products, and provide pricing according to customer specifications.

Specifications Customization

Create drawings for custom requirements, provide reference photos, confirm final solution and pricing.

Production and Delivery

Manufacture according to PO requirements, provide production photos, conduct factory or third-party calibration, arrange packing and delivery.

Installation and After-Sales

On-site installation and comprehensive after-sales support services.

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. For machine issues, contact us via email or phone for troubleshooting and solutions within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days; Custom orders: 15-20 working days after payment; Expedited arrangements available for urgent needs.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to requirements, including OEM and ODM services with customer logos.

How can I install and use the machine?

We provide English operation manuals and videos. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance available when necessary.
