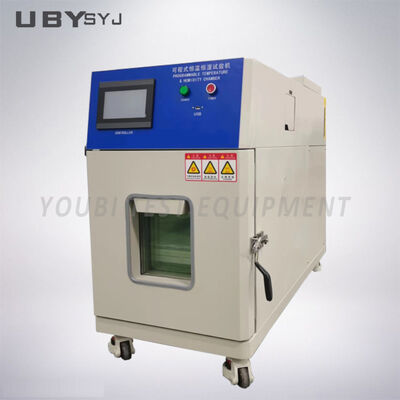

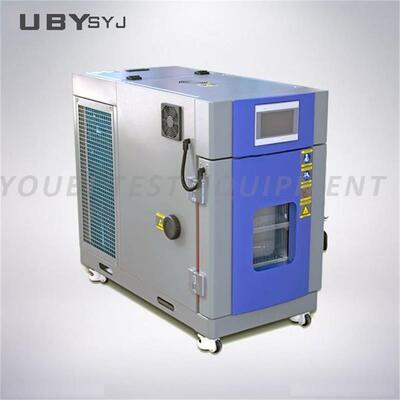

Name: UP-6195 Mini Climate Chamber with -40ºC~150ºC Temperature Range 20%-98% Humidity and SUS304 Stainless Steel Construction
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-6195
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Product Name: Mini Temperatrue And Humidity Chamber

Model NO.: UP-6195

Temperature Range: -40ºC~150ºC

Humidity Range: Rh20%-98%

Temperature Fluctuation: ±0.5ºC

Humidty Fluctuation: ±2.5%Rh

Warranty: 1 Year

Custom Service: OEM,ODM

Additional Service: Support Customer Customization

Size Service: Support Customer Customization

Third-Party Calibration Service: Support Customer Customization

Specification: Refer To The Actual Size Specifications

Highlight:

Temperature Range -40ºC~150ºC Climate Chamber

Humidity Range Rh20%-98% Environmental Test Chamber

Customizable Size Mini Climate Chamber

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-6195

Payment & Shipping Terms

Packaging Details: Professional Export Wooden Box Packaging

Delivery Time: 5~15 work days

Payment Terms: T/T; D/P; Wester Union; Paypal; Money Gram

Supply Ability: 30 Unit/month

Gallery

UP-6195 Mini Climate Chamber with -40ºC~150ºC Temperature Range 20%-98% Humidity and SUS304 Stainless Steel Construction

Product Description

UP-6195 Small Climate Chamber Temperature and Humidity Control Mini Climate Chamber

Product Overview

This equipment simulates various environmental conditions and is suitable for testing material performance including resistance to heat, dryness, humidity, and cold. It helps define material performance characteristics under different environmental stresses.

Applications

Testing material performance for heat resistance, dry resistance, humidity resistance, and cold resistance to define material performance characteristics.

Design Standards

GB2423/T5170/10586/10592, IEC68, GJB150, JIS C60068, ASTM D4714, CNS3625/12565/12566

Specifications

Model	UP-6195
Inner size WHD(mm)	500400400
Outside size WHD(mm)	92138108
Inner chamber volume(V)	80L
Temperature and humidity Control range	-40ºC~150ºC; RH20%-98%
Temperature and humidity fluctuation	±0.5ºC;±2.5%RH
Temperature and humidity deviation	±0.5ºC-±2ºC;±3%RH(>75%RH); ±5%RH(≤75%RH)
Controller resolution	±0.3ºC;±2.5%RH
Controller brand	Korea TEMI880
Heating Time (RT-HT)ºC/min	100 \| 150 40 \| 50
Cooling Time (RT-LT)ºC/min	-20 \| -40 \| -60 \| -70 40 \| 50 \| 55 \| 80
Power supply KW	4.0 \| 6.0 \| 6.0 \| 6.0
Inner material	SUS 304# steel plate
Outside material	SUS 304# steel plate (surface disposing)
Thermal insulation material	Thermostability high density chlorine formic acid foam insulator material
System wind path round-robin mode	Centrifugal fan-broadband enforce circulation
Refrigeration way	Single stage compression refrigeration
Refrigerator	Whole sealing piston France Taikang brand Compressor
Freezing fluid	R4O4A or USA Dupont environmental protection refrigerant (R23+R404)
Condensation way	Forced air cooling or water-cooling
Heater	Nichrome heating wire heating
Humidifier	Semi-enclosed steam humidification
Water-provide way	Full-automatic periodical feeding
Standard configuration	1 Observe window (double-deck cavity toughened glass), 1 50mm test hole in the left, 1 PL inner chamber lamp, 2 clapboards, 1 bag of wet and dry bulb, 3 fuses, 1 power line
Safety device	Non-fuse switch compressor overload, refrigerant high low voltage, over-humidity and temperature protection, Protection switch, fuse stoppage warning system
Power	1φ 220V AC±10% 50/60Hz 3φ 380V AC±10% 50/60Hz

Product Images

Our Service

During the entire business process, we offer consultative selling services:

Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
Specifications Customization Process: Create drawings for customized requirements, provide reference photos, and confirm final solutions
Production and Delivery Process: Manufacture according to confirmed requirements, provide production progress photos, conduct calibration, and ensure timely delivery
Installation and After-Sales Service: Provide field installation and comprehensive after-sales support

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. For sea transportation, we extend to 14 months. If your machine experiences issues, contact us via email or phone for troubleshooting support with solutions provided within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days. No stock: 15-20 working days after payment. Urgent requirements receive special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.

How can I install and use the machine?

We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect the power cable and begin operation. On-site installation assistance is available when necessary.
