UP-6195 Environmental Test Chamber Intelligent Constant Climate Chamber

1 Unit
MOQ
Negotiable
Price
UP-6195 Environmental Test Chamber Intelligent Constant Climate Chamber
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Environmental Test Chamber
Model NO.: UP-6195
Warranty: 1 Year
Additional Service: Support Customer Customization
Custom Service: OEM,ODM
Temperature Range: -70~150ºC
Humidity Range: 20%~98%
Color Service: Support Customer Customization
Size Service: Support Customer Customization
Third-Party Calibration Service: Support Customer Customization
Transport Package: Professional Export Wooden Box Packaging.
Specification: Refer To The Actual Size Specifications
Trademark: None
Origin: China
Production Capacity: 80 Unit/Month
Highlight:

UP-6195 Environmental Testing Equipment

,

UP-6195 Environmental Test Chamber

,

Intelligent Constant Climate Chamber
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6195
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
Intelligent Constant Climate Test Chamber with Excellent Insulation and Durability
Product Overview

This intelligent constant climate test chamber features excellent insulation and durability, designed to simulate various environmental conditions for testing material performance including heat resistance, dry resistance, humidity resistance, and cold resistance.

Design Standards

GB2423/T5170/10586/10592, IEC68, GJB150, JIS C60068, ASTM D4714, CNS3625/12565/12566

Applications

This equipment is appropriate for testing material performance to define characteristics such as heat resistance, dry resistance, humidity resistance, and cold resistance under simulated environmental conditions.

Technical Specifications
Parameter Model 1 Model 2 Model 3 Model 4 Model 5 Model 6
Inner box size (W×D×H) mm 400×400×500 500×500×600 600×500×750 800×600×850 1000×800×1000 1000×1000×1000
Carton size (W×D×H) mm 680×1550×1450 700×1650×1650 800×1650×1750 1000×1700×1870 1200×1850×2120 1200×2050×2120
Inner box volume 100L 150L 225L 408L 800L 1000L
Heating time (to 150°C) 35min 40min 40min 40min 45min 45min
Cooling time (-40°C) 60min 60min 60min 60min 60min 60min
Cooling time (-70°C) 100min 100min 100min 100min 100min 100min
Power (kW) 5.5 6.5 6 6.5 7.5 8
Weight 200KG 250KG 300KG 400KG 600KG 700KG
Additional Specifications
  • Temperature and humidity range: Low temperature: -70°C/-40°C; High temperature: 150°C; Humidity range: 20%RH-98%RH
  • Temperature and humidity uniformity: Temperature: ±2°C; Humidity: ±3%RH
  • Inner box material: #304 2B stainless steel plate 1.0mm thick
  • Outer box material: Electrostatic spraying cold rolled painted steel plate thickness 1.2mm
  • Moisturizing material: Rigid foam and glass wool
  • Wind path circulation method: Centrifugal fan + wide-band forced air circulation (push-out and push-down)
  • Refrigeration method: Air-cooled, single-stage or cascade refrigeration, compressor (using French Taikang hermetic compressor or American Emerson compressor)
  • Refrigerants: R404A, R23A
  • Heater: Nichrome heating wire heater
  • Humidifier: Stainless steel sheathed humidifier
  • Water supply method: Water pump lifting
  • Power supply: 13W AC220V±10% 50/60Hz | 5W AC380/415V±10% 50/60Hz
Product Images

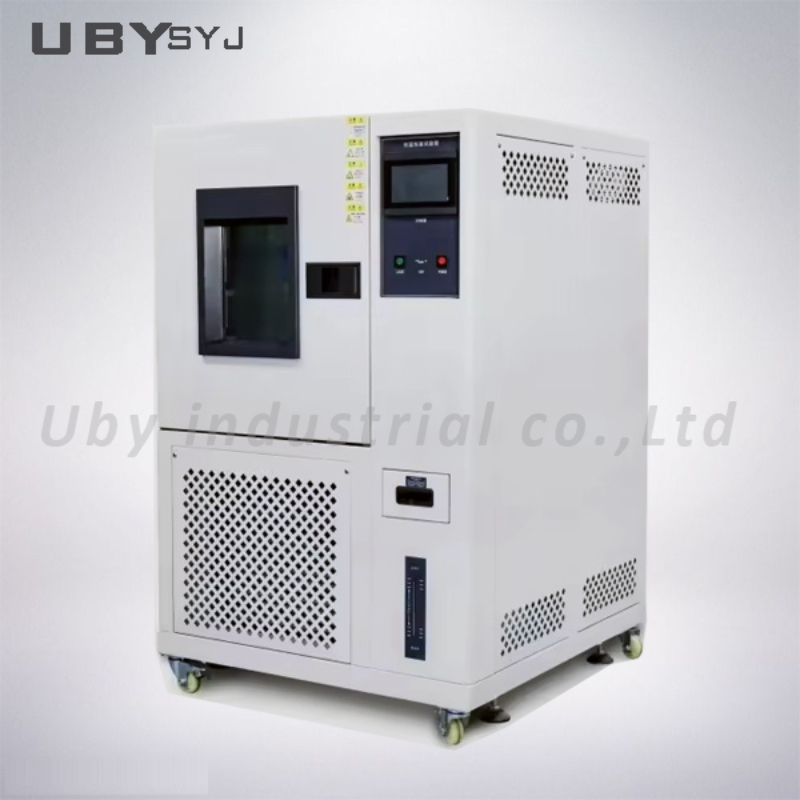

UP-6195 Environmental Test Chamber Intelligent Constant Climate Chamber 0

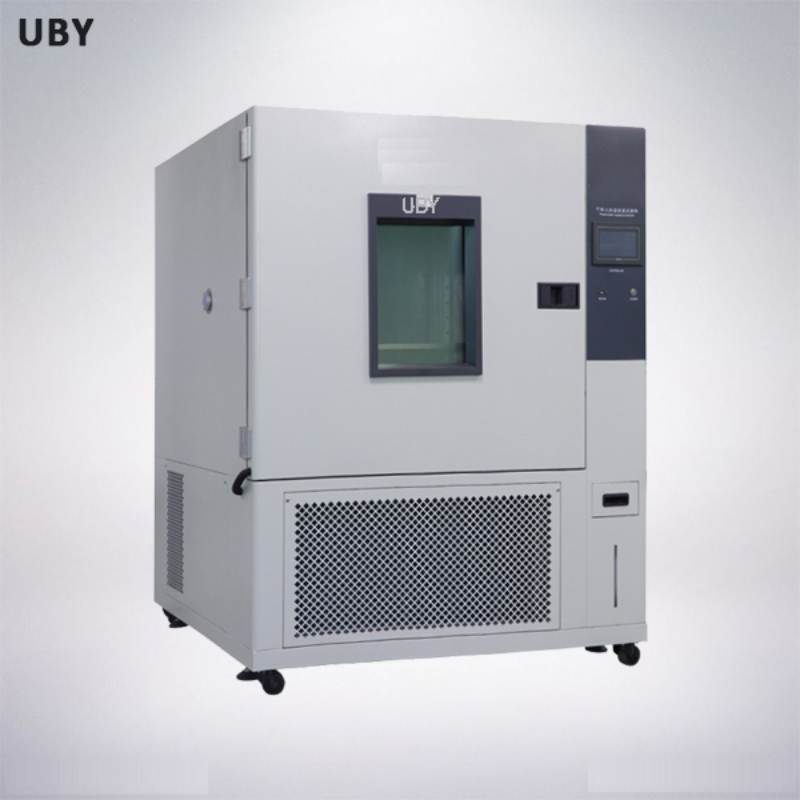

UP-6195 Environmental Test Chamber Intelligent Constant Climate Chamber 1
Our Service Process
1) Customer Inquiry Process

Discussing testing requirements and technical details, suggesting suitable products to customer for confirmation. Then quoting the most suitable price according to customer requirements.

2) Specifications Customize Process

Drawing related drawings to confirm with customer for customized requirements. Offering reference photos to show the appearance of the product. Then, confirming the final solution and final price with the customer.

3) Production and Delivery Process

Producing machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offering photos to the customer for final confirmation. Then performing factory calibration or third-party calibration (as per customer requirements). Checking and testing all details before arranging packing. Delivering products according to confirmed shipping time and informing the customer.

4) Installation and After-Sale Service

Defining installation procedures for products in the field and providing comprehensive after-sales support.

Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers.

Moreover, if your machine doesn't work, you can send us an e-mail or call us. We will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?

For our standard machines, if we have stock in the warehouse, delivery is 3-7 working days. If there is no stock, normally the delivery time is 15-20 working days after payment is received. If you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine, which means we offer OEM and ODM service.

4. How can I install and use the machine?

Once you have ordered testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machines are shipped as complete units, which means they are already installed. You just need to connect the power cable and start using it. And if necessary, we can also assist you to install your machine on-site.
