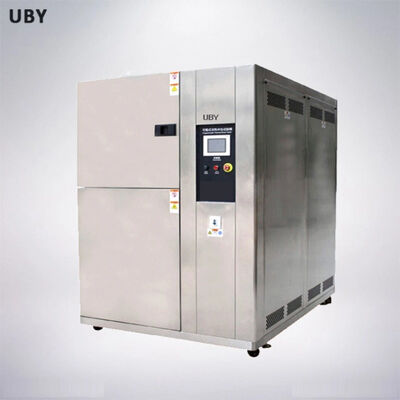

High-Responsiveness Three Box Air Cooled Water Cooled Thermal Shock Testing Chamber
Thermal Shock Test Chamber is characterized by its rapid transition between extreme high and low temperatures, testing product durability under sudden thermal changes.
Key Features
High transition speed: Achieves temperature switching in seconds via multi-zone or lift mechanisms
Wide temperature range: High temperatures up to +200°C or more, low temperatures down to -70°C or lower
Precise control: Ensures stable and consistent testing conditions with high temperature uniformity
Efficient heat transfer: Utilizes pneumatic or electric transfer systems for enhanced testing efficiency
Broad applicability: Widely used for reliability testing in electronics, automotive components, aerospace materials, and more
Technical Specifications
| Model |
UP-6118-A |
UP-6118-B |
UP-6118-C |
UP-6118-D |
UP-6118-E |
UP-6118-F |
| Inner size: WHD(cm) |
40*35*30 |
50*30*40 |
50*40*40 |
50*50*40 |
60*40*50 |
60*50*50 |
| External size: WHD(cm) |
150*180*150 |
160*175*160 |
160*185*160 |
160*185*170 |
170*185*170 |
170*195*170 |
| Weight (kg) |
750 |
790 |
830 |
880 |
950 |
1050 |
Temperature range (Test Chamber): High temperature: +60ºC~+200ºC; Low temperature: -10ºC~-65ºC (A:-45ºC; B:-55ºC; C:-65ºC)
Heating Time: RT~200ºC About 30min
Cooling Time: RT~-70ºC About 85min
Temperature Conversion Time: Less than 10S
Temperature Recovery Time: Less than 5min
Temperature Deviation: ±2.0ºC
Temperature Fluctuation: ±0.5ºC
Material: External material: SUS#304 Stainless steel plate; Internal material: SUS#304 Stainless steel plate
Output Mode: Water-cooled or air-cooled, Taikang compressor in France
Controller: TEMI South Korea
Cooling System: Water-cooled or air-cooled
Protection devices: Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system
Parts: Watching window; 50mm testing hole; partition plate
Power: AC380V 50/60Hz Three-phase four-wire ac power
Our Service
Customer inquiry process: Discussing testing requirements and technical details, suggesting suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
Specifications customize process: Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
Production and delivery process: We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
Installation and after-sale service: Defines installing those products in the field and providing after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers. Moreover, if your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
What about the delivery term?
For our standard machine which means normal machines, if we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.
Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
