Customized 1428L Split Type High & Low Temperature Test Chamber with -70~150ºC Range

1
MOQ
Negotiable
Price
Customized 1428L Split Type High & Low Temperature Test Chamber with -70~150ºC Range
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-6195
HS Code: 8514199000
Warranty: 1 Year
Custom Service: OEM,ODM
Temperature Range: -70~150ºC
Humidity Range: 20%~98%
Temperature Accuracy: ±0.5degres
Humidity Accuracy: ±2.5% R.H.
Size Service: Support Customer Customization
Specification: Refer To The Actual Size Specifications
Highlight:

Humidity Temperature Test Chamber with optimized refrigeration

,

Environmental Test Chamber with wide temperature range

,

Test Chamber with humidity control 20-98%
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE, ISO
Model Number: UP-6195
Payment & Shipping Terms
Packaging Details: Professional export wooden box packaging
Delivery Time: 10~20 work days
Payment Terms: D/P,T/T,Western Union,Paypal
Supply Ability: 20 Unit/month
Product Description
Customized 1428L Split Type High & Low Temperature Test Chamber UP-6195
Product Introduction

This customized 1428L high and low temperature test chamber adopts a split structure, consisting of a main test chamber and an independent compressor rack. The separated design facilitates on-site installation, heat dissipation and routine maintenance.

It is specially developed for temperature cycling performance testing of electronic components, to verify electrical stability under drastic temperature changes, detect potential failure risks during R&D and quality inspection, such as parameter drift and functional malfunction.

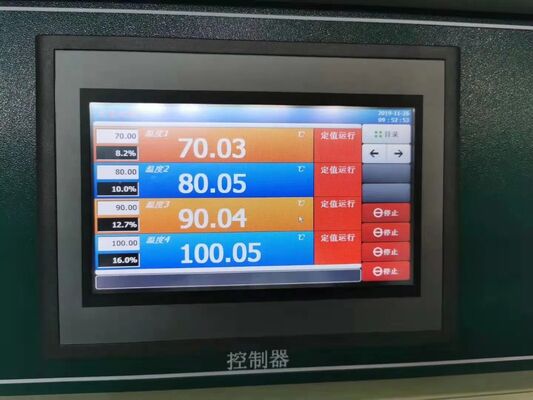

Equipped with a programmable touch controller for multi-segment temperature cycle setting. The independent compressor unit ensures stable cooling performance and excellent temperature uniformity. Complete safety protections including over-temperature, overload and door-open protection are integrated. Widely used for reliability evaluation of PCB, chips, sensors and other electronic components.

Our company provides customized services for all types of environmental test chambers, including split high-low temperature test chambers, rapid temperature change chambers, temperature & humidity chambers, thermal shock chambers and more. Customizable on working volume, temperature range, integrated or split structure, to meet reliability testing requirements for electronics, automotive, new energy and material industries.

Technical Specifications
Item Specification
Model UP-6195
Volume 1428L (Three top motors mounted at the rear of the chamber)
Interior Dimensions W 1200 mm × H 1400 mm × D 850 mm
Exterior Dimensions (Chamber Body) W 1400 mm × H 1780 mm × D 1830 mm
Compressor Rack Dimensions W 1400 mm × H 1300 mm × D 800 mm
Temperature Range -70°C ~ +180°C (fully controllable and adjustable; control accuracy ±0.1°C)
Humidity Range 10%RH ~ 98%RH (fully controllable and adjustable; control accuracy ±0.1%RH)
Humidity Control Range Humidity controllable from +5°C to +85°C; humidity cannot be controlled below +5°C
Temperature Fluctuation ≤ ±0.5°C
Temperature Deviation ≤ ±2°C (no load)
Temperature Uniformity ≤ 2°C (no load)
Humidity Fluctuation ≤ ±2.0%RH (after humidity stabilization)
Humidity Uniformity ≤ ±3.0%RH
Humidity Deviation > 75%RH: ≤ +2 / -3 %RH; ≤ 75%RH: ≤ ±5%RH
Average Ramp Rate (Full Range, No Load) 3°C / min (average across full range, no load)
Linear Heating Rate (-25°C ~ +65°C) 2°C / min linear (40 kg aluminum load, 1.1KW power load)
Linear Cooling Rate (+65°C ~ -25°C) 1.5°C / min linear (40 kg aluminum load, 1.1KW power load)
Structure Type Split-type design (test chamber + separate refrigeration unit) to prevent compressor vibration from affecting test results
Connection Connected by approx. 10 m copper pipes; cold pipes wrapped with insulation cotton; wires and copper pipes for compressor-chamber connection are customer-supplied
Door Design Floor-standing double-door test chamber
Base Equipped with leveling foot cups and casters at the bottom (adjustable leveling foot cups with brake device)
Cooling Type Water-cooled
Air Compression Drying System Temperature controlled at 5°C @ 5%RH; dry air purge at -70°C dew point; with dry air purification
Temperature Sensor US imported Omega PT100 high-precision dry bulb temperature sensor; detection accuracy 0.01°C
Humidity Sensor Electronic humidity sensor
Alarm System Three-color signal tower light with audible and visual alarm upon machine failure; emergency stop switch; alarm sound ≥ 80 dB
Cable Port One (1) Ø100 mm test port on one side
Chamber Bottom Height Chamber bottom height with transfer cart ≤ 220 mm (cart equipped with magnets, as shown in reference image)
Product Images

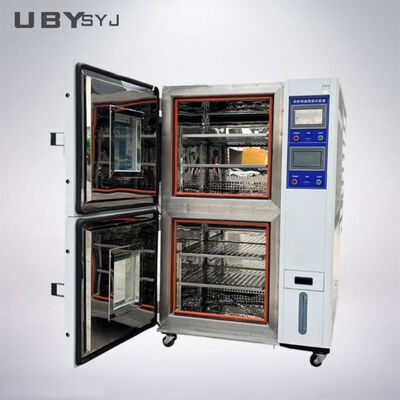

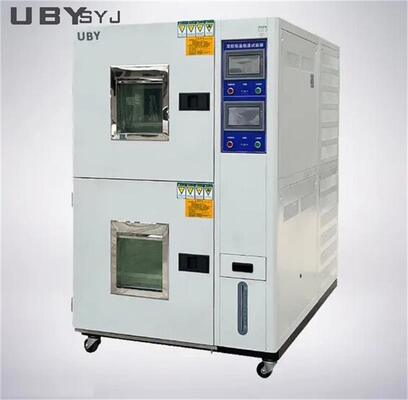

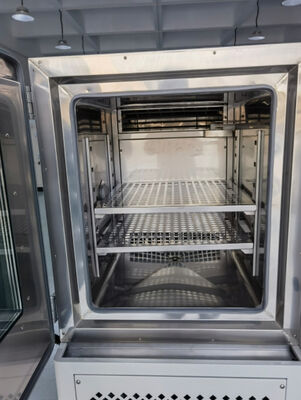

Customized 1428L Split Type High & Low Temperature Test Chamber - Front View Customized 1428L Split Type High & Low Temperature Test Chamber - Side View Customized 1428L Split Type High & Low Temperature Test Chamber - Interior View
Our Service Process
1) Customer Inquiry Process: Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
2) Specifications Customize Process: Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
3) Production and Delivery Process: We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
4) Installation and After-Sale Service: Defines installing those products in the field and providing after-sales support.
Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers. Moreover, if your machine doesn't work, you can send us an e-mail or call us - we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, if we have stock in the warehouse, delivery time is 3-7 working days. If there is no stock, normally, the delivery time is 15-20 working days after payment is received. If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.

Please contact us directly for inquiries and orders.
