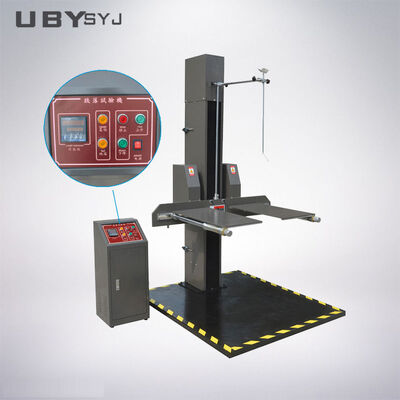

Name: UP-3002 High-Precision Motorized Double Wing Free Fall Tester with 40~150cm Testing Height for Logistics Simulation
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-3002
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Model NO.: UP-3002

Testing Height: 40~150cm

Maximum Weight: 60kg

Maximum Size Specimen: 800*800*800mm Or Customized

Single Strut Length: 30cm

Falling Error: ±5mm

Ffalling Plane Error: <1°

Applications: Package Carton Box

Language: Chinese And English

Service Support: OEM ODM

Highlight:

High-Precision Free Fall Tester

Motorized Drop Impact Tester

40~150cm Testing Height Double Wing Tester

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-3002

Payment & Shipping Terms

Packaging Details: Professional export wooden box packaging

Delivery Time: 5-10work days

Payment Terms: D/A,D/P,T/T

Supply Ability: 20 Unit/month

Gallery

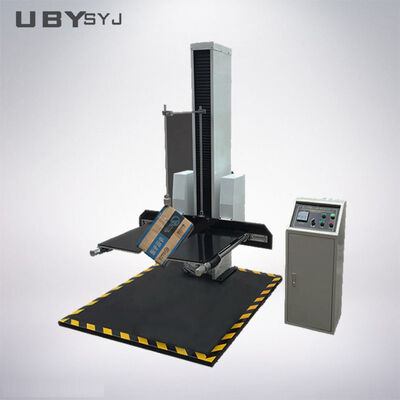

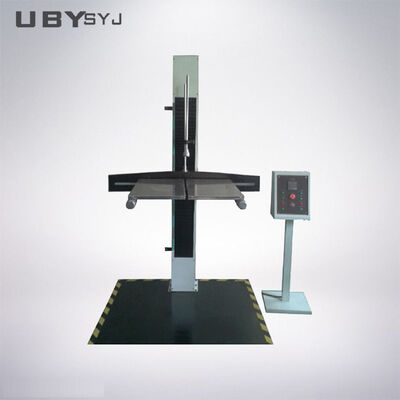

UP-3002 High-Precision Motorized Double Wing Free Fall Tester with 40~150cm Testing Height for Logistics Simulation

Product Description

UP-3002 High-Precision Motorized Double Wing Free Fall Tester for Logistics Simulation

Double-Wings Carton Drop Testing Machine is primarily used to assess the impact resistance of packages during actual transportation, loading, and unloading processes. This equipment evaluates the impact strength of packaging during handling and the rationality of packaging design.

This machine features a double-wing model that securely fixes test products. It employs electric lifting and dropping mechanisms with manual reset, ensuring easy operation. Equipped with a height digital display meter, users can intuitively observe real-time product drop height through the display screen.

Design Standards

GB4757.5-84 JISZ0202-87 ISO2248-1972(E), ASTM D5276

Technical Parameters

Drop height range:	400-1500mm (can be customized)
Allow the maximum weight of the test piece:	65kg (can be customized)
Allow the maximum size of the test piece:	800 × 800 × 800mm
Impact panel size:	1400 × 1200mm
Support arm size:	700 × 350mm
Drop error:	±10mm
Horsepower:	Increase 1/3 HP, manual adjustment
Test system meets specifications:	ISO22488-1972(E)
Action mode:	Electric drop, manual reset
Test bench dimensions:	1400 × 1200 × 2200mm
Net weight:	About 580kg
Power:	380V 50HZ

Operating Specifications

Turn on the power switch (power light will turn on). Ensure both wings are in horizontal position; adjust manually if necessary using hand board.
Use clips to place the test sample on both wings. All personnel must stand outside the safety line.
Press the up button to raise both wings to desired test height. Press stop button to halt ascent.
Press the drop button to initiate free fall test. Complete the test and record sample state after drop.
Conduct additional product tests using methods 2-4 above, performing free drop tests based on required surface, angle, and edge specifications.

Attention: Do not stand on the workbench during drop testing! This is extremely dangerous.

Our Service

Throughout the entire business process, we offer consultative selling services:

Customer Inquiry Process

Discuss testing requirements and technical details, suggest suitable products for confirmation, then provide competitive pricing according to customer requirements.

Specifications Customize Process

Create related drawings for customized requirements confirmation. Provide reference photos showing product appearance. Confirm final solution and pricing.

Production and Delivery Process

Manufacture machines according to confirmed PO requirements. Provide production process photos. After completion, share machine photos for final confirmation. Perform factory calibration or third-party calibration as required. Conduct final testing and arrange packing. Deliver products within confirmed shipping timeframe.

Installation and After-Sale Service

Provide field installation services and comprehensive after-sales support.

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased includes 12-month warranty after shipment. We offer 12 months of free maintenance, with additional 2 months extension considering sea transportation.

If your machine experiences issues, contact us via email or phone. We will troubleshoot through conversation or video chat if necessary. Solutions are typically provided within 24 to 48 hours after problem confirmation.

What about the delivery term?

Standard machines in stock: 3-7 working days. Out-of-stock items: 15-20 working days after payment receipt. Urgent requirements receive special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including logo placement on machines.

How can I install and use the machine?

Upon ordering, we provide English operation manuals or videos via email. Most machines ship fully assembled - simply connect power cable and begin operation. On-site installation assistance available when necessary.

Tag:

Contact Person :	Jessica
Tel :	008613422863552

UP-3002 High-Precision Motorized Double Wing Free Fall Tester with 40~150cm Testing Height for Logistics Simulation

High-Precision Free Fall Tester

Motorized Drop Impact Tester

40~150cm Testing Height Double Wing Tester

Impact Test Apparatus

Impact Test Equipment

Impact Tester Machine

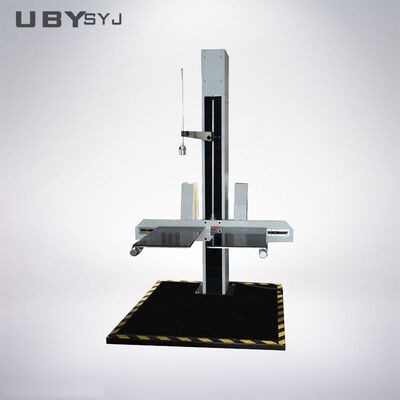

UP-3002 Dual-Arm Drop Impact Tester with Three-Dimensional Drop Test and 60kg Maximum Weight for Packaging Impact Resistance Testing
