UP-3000 Ball Drop Impact Test Machine with DC Electromagnetic Control, Stepless Adjustable Drop Height, and Multiple Standard Steel Balls

1
MOQ
Negotiable
Price
UP-3000 Ball Drop Impact Test Machine with DC Electromagnetic Control, Stepless Adjustable Drop Height, and Multiple Standard Steel Balls
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-3000
Drop Height Range: 0~2000mm (stepless Adjustable, Customized Height Available)
Standard Steel Ball Weight: 55g~2280g Multiple Standard Steel Balls For Option
Steel Ball Weight Tolerance: ±5g
Service Support: OEM ODM
Language: Chinese And English
Highlight:

DC Electromagnetic Control Ball Drop Impact Test Machine

,

Stepless Adjustable Drop Height Drop Test Equipment

,

Multiple Standard Steel Balls Impact Testing Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-3000
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/A,D/P,T/T
Supply Ability: 30 Unit/month
Product Description
UP-3000 Ball Drop Impact Test Machine DC Electromagnetic Control Drop Test Equipment
Product Overview

The Falling Ball Drop Impact Tester is designed to verify the impact resistance and structural stability of various materials and finished products. It utilizes DC electromagnetic automatic release to achieve standard free fall of steel balls from adjustable heights, generating stable impact energy. The instrument evaluates sample quality by detecting cracking, deformation, and damage after impact. Equipped with infrared precise positioning and anti-secondary impact design, it ensures highly accurate, repeatable test results.

Compliance Standards
  • ISO 6603: Impact resistance test for plastics and hard rubber
  • ASTM D5420 / D3029: Falling ball impact test for rigid materials
  • JIS K6754 / R3205: Japanese standard for material impact testing
  • BS 2782: British standard for plastic impact performance
  • GB/T: Chinese national standards for material impact detection
Applications

Suitable for impact resistance testing of plates, films, and finished parts in multiple industries. Applicable for product certification and daily quality control in:

  • Plastic Industry
  • Glass & Acrylic Industry
  • Electronics & Appliances
  • Packaging Industry
  • Automotive & New Materials
Technical Specifications
Parameter Specification
Model Ball drop impact test machine
Maximum Height 2 meters
Control Method DC electromagnetic control
Steel Ball Weight (Optional) JIS Standard: 112, 198, 225, 357, 533, 1042, 2280g
Standard GB/T14485: 454g, 761g, 1053g, 1735g
Dimensions (W × D × H) 400 × 450 × 2200mm
Weight Approximately 50Kg
Power Requirements AC220V 50Hz 3A or as specified by user
Product Images

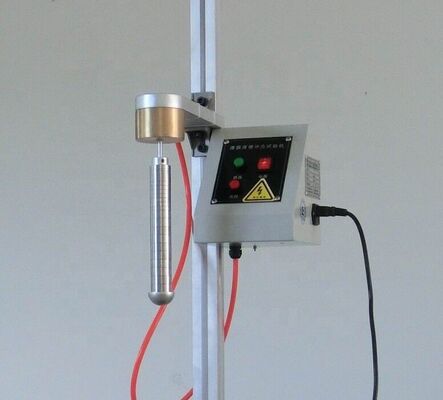

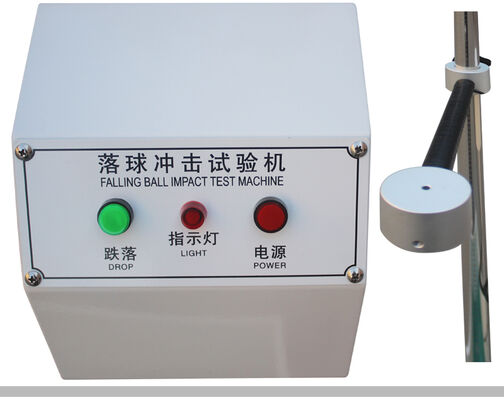

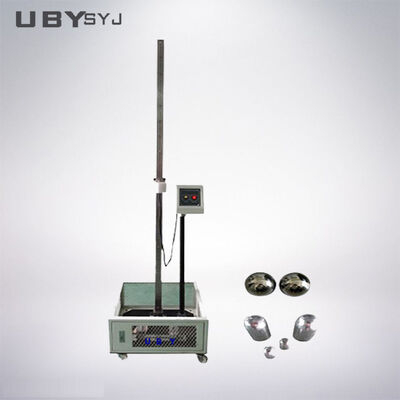

UP-3000 Ball Drop Impact Test Machine front view UP-3000 Ball Drop Impact Test Machine side view UP-3000 Ball Drop Impact Test Machine control panel
Our Service Commitment
Customer Inquiry Process

Discussing testing requirements and technical details, suggesting suitable products for confirmation. Providing the most competitive pricing according to customer requirements.

Specifications Customization Process

Creating detailed drawings for customized requirements confirmation. Providing reference photos to showcase product appearance. Finalizing solution and pricing with customer approval.

Production and Delivery Process

Manufacturing machines according to confirmed PO requirements. Providing production progress photos. Conducting factory calibration or third-party calibration as required. Comprehensive testing and secure packaging before timely delivery.

Installation and After-Sales Service

Professional on-site installation and comprehensive after-sales support to ensure optimal performance.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I request service? What is the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. Considering sea transportation, we extend an additional 2 months for international customers.

For technical support, contact us via email or phone. We will diagnose issues through conversation or video chat when necessary, providing solutions within 24-48 hours after problem confirmation.

What are your delivery terms?

Standard machines in stock: 3-7 working days

Custom orders: 15-20 working days after payment confirmation

Expedited arrangements available for urgent requirements

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your specifications. We provide OEM and ODM services, including custom branding with your logo.

How can I install and use the machine?

We provide comprehensive English operation manuals and videos via email after order confirmation. Most machines are shipped fully assembled - simply connect the power cable to begin operation. On-site installation assistance is available when required.
