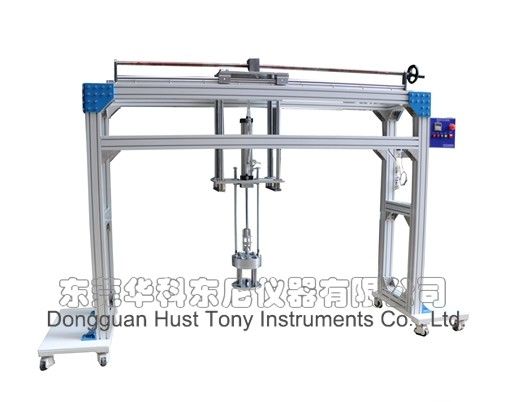

BS EN 1728 & 1730 Impact Tester Durability On Chair Seat Table And Bed

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  BS EN 1728 & 1730 Impact Tester Durability On Chair Seat Table And Bed

Product Details:
Place of Origin: china
Brand Name: HUST Tony
Model Number: TNJ-019
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: contact saler
Packaging Details: Plywood BOX
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Detailed Product Description
Model Number: TNJ-019 Iterm: BS EN 1728 & 1730 Impact Tester
Minimum Order Quantity: 1 Set Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union Place Of Origin: Guangdong,China(Mainland)
Certificate: CE Standard: BS EN1725:1998 , BS EN 1728:2012, BS EN 1730: 2012, BS EN 747-2:2012+A1:2015
High Light:

BS EN 1728 Furniture Impact Tester

,

BS EN 1728 Chair Seat Impact Tester

,

Furniture BS EN 1730 Impact Tester

1) Purpose of equipment
Tester machine for durability on chair seat, table, and bed based on BS EN
2)Standard :
  • Seat impact test (BS EN 1728:2012,Clause 6.24)
  • Vertical impact test (BS EN 1730:2012, clause 6.6)
  • Impact test on bed base  (BS EN 747-2:2012+ A1: 2015, clause 5.4.4 )
  • Vertical impact test (BS EN 1725: 1998 , Clause 7.4)
2)Quantity required
One(1) unit- standard BS EN
3)Technical specifications
a.Vertical post and cross bar
-To hold cylinder/impactor
b.Pneumatic cylinder
-To hold, release and raise the impactor
-Height: Adjustable height up to 300mm (adjustable)

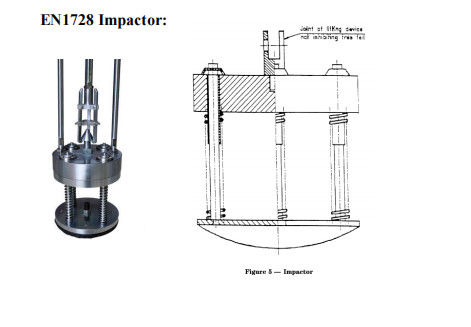

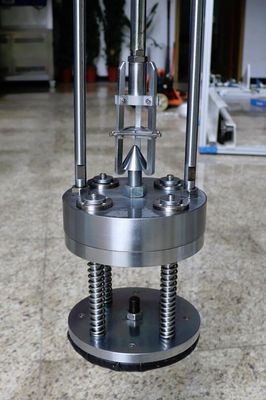

c.Impactor consists of (refer attachment):

-Circular body –200 mm in diameter, separated from the striking surface by helical compression springs
and free to move relative to it on a line perpendicular to the plane of the central area of the striking
surface. The body and associated parts minus the springs shall have a mass of (17±0.1) kg and the whole
apparatus including mass, springs and striking surface shall have a mass of (25±0.1) kg.

-Spring – the nominal spring rate of the combined spring system is (7±2) N/mm and the total friction
resistance of the moving parts is less than 1 N. The spring system shall be compressed to an initial
force of (1040±5) N(measured statistically) and the amount of spring compression point to the point where the
springs become fully closed shall be not less than 60 mm.

-Striking surface- shall be a rigid circular object, 200 mm in diameter, the face of which has a convex
spherical curvature of 300 mm radius with a 12 mm front edge radius
d.On/Off switch, machine can be operated manually
BS EN 1728 & 1730 Impact Tester Durability On Chair Seat Table And Bed 0
4)Features :
Our furniture instrument competitive features :
1.European standard aluminum profile
(Thickness and strength 5 times higher than industry)
2. U.S.-origin high-precision force sensors
3. Ades a cylinder
4. Portable magnet retainer
?5. Customize the 1 to 1 load block to standard
