Non-Saturated High Pressure HAST Test Chamber with SUS316 Stainless Steel Inner Tank and 7-inch TFT Color Touch Screen for Electronic Components Reliability Aging Test

1 Unit
MOQ
Negotiable
Price
Non-Saturated High Pressure HAST Test Chamber with SUS316 Stainless Steel Inner Tank and 7-inch TFT Color Touch Screen for Electronic Components Reliability Aging Test
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-6124
Temperature Fluctuation: ≤±0.5℃
Custom Service: OEM,ODM
Temperature Range: 100℃ ~ 135℃ (non-saturated)
Pressure Range: 1.2~2.89MPa
Control Accuracy: Temperature ≤±0.5℃; Resolution:0.1℃
Product Name: Environmental Test Chamber
Temperature Uniformity: ≤±2.0℃
Humidity Range: 75% ~100 % Rh
Specification: Refer To The Actual Size Specifications
Highlight:

Non-Saturated High Pressure HAST Test Chamber

,

SUS316 Stainless Steel Environmental Test Chamber

,

7-inch TFT Color Touch Screen Highly Accelerated Stress Test Chamber
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6124
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 7-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal
Supply Ability: 30 Unit/month
Product Description
Non‑Saturated High Pressure HAST Test Chamber for Electronic Components Reliability Aging Test UP-6124
Product Overview

The HAST chamber is a non-saturated high-pressure accelerated stress test equipment designed for electronic component reliability evaluation. Featuring a double-layer SUS316 stainless steel inner tank, it effectively resolves condensation issues and supports both UHAST and BHAST test modes.

This chamber incorporates a water-electric separation design for enhanced safety and is equipped with a 7-inch TFT color touch screen featuring Chinese-English switchable interface and PID auto-calculation control. Multiple multi-level safety protections including over-temperature, over-pressure, and water-shortage alarms ensure stable long-term testing operations. Custom sample racks and chamber dimensions are available upon request.

Compliance Standards
  • IEC 60068-2-66
  • JESD22-A102-C
  • JESD22-A110-B
  • JESD22-A118
  • GB/T 2423.40-1997
Technical Specifications
Item Specification
Product Name HAST Chamber / Non-Saturated High-Pressure Accelerated Stress Test Chamber
Inner Chamber Size Φ400 × D500 mm, circular chamber (customizable)
Outer Dimension (W×D×H) ≤700 x ≤1100 x ≤1600 mm
Inner Tank Material SUS 316 stainless steel
Outer Cabinet Material High-grade painted steel plate
Temperature Range 100℃ ~ 135℃ (non-saturated)
Temperature Fluctuation ≤±0.5℃
Temperature Uniformity ≤±2.0℃
Humidity Range 75%RH ~ 100%RH
Humidity Fluctuation ≤±2.5%RH
Humidity Uniformity ≤±3.0%RH
Working Pressure 1.2-2.89 kg/cm² (0.02-0.289 MPa, gauge pressure)
Heating up Time RT to 135℃ approx. 50 min
Pressurizing Time Normal pressure to 2 kg/cm² approx. 50 min; External air source: approx.5 min
Control System 7-inch TFT color touch screen, PID auto-calculation
Control Accuracy Temperature ≤±0.5℃; Resolution:0.1℃
Communication Interface USB, optional RS-232 / RS-485, LAN remote monitoring
Program Capacity 269 groups, 50 segments per program
Power Supply AC 220V
Installed Power Approx.4 kW, Max.18A
Safety Features Multi-layer protection: over-temp, over-pressure, water shortage, auto pressure relief
Product Images

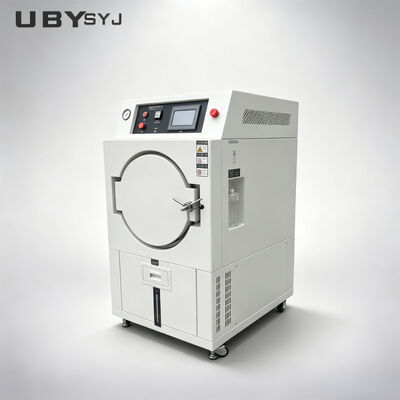

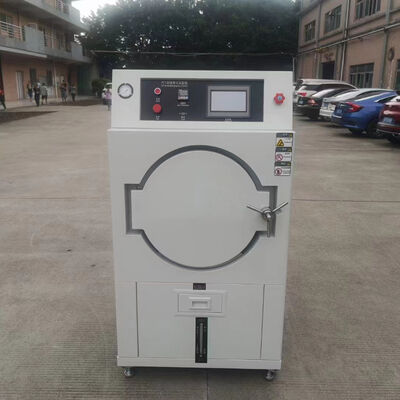

HAST Test Chamber front view showing control panel and chamber door HAST Test Chamber side view displaying overall construction and design HAST Test Chamber interior view showing sample placement area
Our Service Process
1) Customer Inquiry Process:

We discuss testing requirements and technical details, suggest suitable products for confirmation, and provide the most appropriate pricing according to customer requirements.

2) Specifications Customization Process:

We create related drawings for customized requirements confirmation, provide reference photos to show product appearance, and finalize the solution and pricing with the customer.

3) Production and Delivery Process:

We manufacture machines according to confirmed PO requirements, provide production process photos, conduct factory or third-party calibration as required, and arrange packing and delivery according to confirmed shipping schedules.

4) Installation and After-Sales Service:

We provide field installation services and comprehensive after-sales support to ensure optimal performance.

Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2-month extension to account for sea transportation.

If your machine experiences issues, you can contact us via email or phone. We will work to identify the problem through conversation or video chat if necessary. Once confirmed, we provide solutions within 24 to 48 hours.

2. What about the delivery term?

For standard machines with available stock: 3-7 working days

For machines without stock: 15-20 working days after payment receipt

We accommodate urgent requirements with special arrangements.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.

4. How can I install and use the machine?

Upon ordering, we provide English operation manuals or videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable to begin operation. When necessary, we can assist with on-site installation.
