EN ISO 11925-2 Compliant Flame Ignitability Test Chamber with 20 mm Flame Length and OEM ODM Support for Building Materials Fire Testing

1 Unit
MOQ
Negotiable
Price
EN ISO 11925-2 Compliant Flame Ignitability Test Chamber with 20 mm Flame Length and OEM ODM Support for Building Materials Fire Testing
Features Gallery Product Description Chat Now
Features
Specifications
Ambient Temperature: 15ºC~25ºC;
Standard Flame Application Duration: 15 Seconds
Language: Chinese And English
Applications: Building Materials, Plastic Materials, Wires ,etc.
Service Support: OEM ODM
Burner Nozzle Aperture: Φ0.17 Mm
Flame Length: 20 Mm ± 2 Mm
Model NO.: UP-5020
Highlight:

EN ISO 11925-2 Compliant Flame Ignitability Test Chamber

,

20 mm Flame Length Building Materials Fire Tester

,

OEM ODM Support Single Source Flame Test Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-5020
Payment & Shipping Terms
Packaging Details: Professional Export Packing
Delivery Time: 5-15 work days
Payment Terms: T/T,D/T,Western Union,Paypal
Supply Ability: 30 Unit/month
Product Description
UP-5020 Single Source Flame Ignitability Test Chamber
Product Overview

The UP-5020 Building Materials Flame Test Machine is a professional single-flame source ignitability testing apparatus designed for evaluating the flammability performance of various construction materials. It simulates real fire hazard conditions by applying standardized propane flame to test specimens, accurately testing ignition possibility, flame spread distance, burning duration, afterglow and dripping combustion behavior.

The machine features an integrated combustion chamber and digital control system, providing stable flame output, precise timing and fully repeatable test results.

Compliance Standards
  • EN ISO 11925-2 (Reaction to fire tests - Ignitability of building products)
  • GB/T 8626 (China standard for building material flammability test)
  • DIN 4102 (German building material fire behavior classification standard)
  • EN 13501-1 (Fire classification of construction products)
Applications

Widely used for fire classification inspection, factory quality control and laboratory safety assessment of building materials, fully compliant with international standard test requirements.

Technical Specifications
Item Specification
Test Standard EN ISO 11925-2, GB/T 8626, DIN 4102
Fuel Gas Commercial propane (purity ≥95%)
Standard Flame Height 40mm ± 2mm adjustable
Flame Application Time 5s / 15s / 30s optional
Total Test Duration 20s / 60s according to standard
Specimen Size Standard 90mm × 190mm, thickness ≤ 60mm
Test Chamber Structure Closed transparent combustion chamber with observation window
Timing Accuracy ±0.1s
Observation Indicators Flame spread distance, burning time, afterglow time, burning dripping status
Working Environment Temperature 23℃±5℃, Humidity 50%±20%
Power Supply AC 220V, 50/60Hz

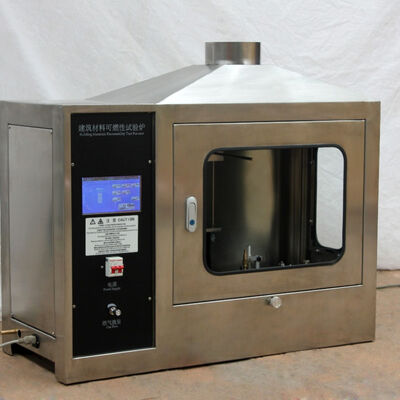

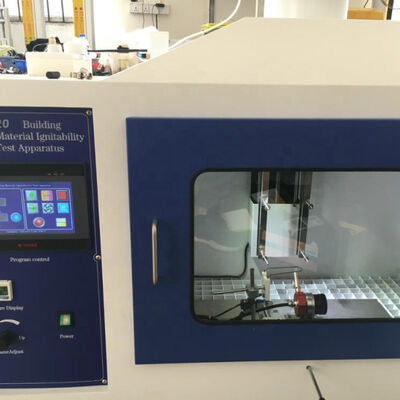

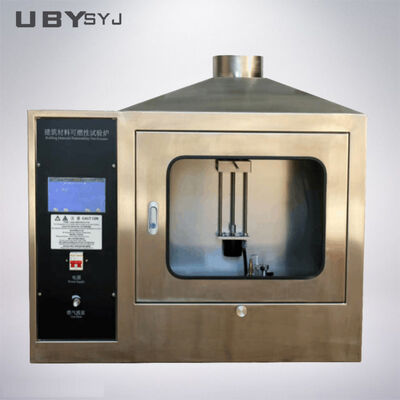

UP-5020 Single Source Flame Ignitability Test Chamber front view UP-5020 Single Source Flame Ignitability Test Chamber side view
Our Service Commitment

During the entire business process, we offer comprehensive Consultative Selling services:

  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Customization Process: Create detailed drawings and reference photos for customized requirements, confirm final solutions and pricing
  • Production & Delivery: Manufacture according to confirmed specifications, provide production updates, conduct calibration, and ensure timely delivery
  • Installation & Support: Provide field installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. Considering sea transportation, we extend this to 14 months for international customers. If your machine requires service, contact us via email or phone. We will diagnose the issue and provide solutions within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. We accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your specific requirements. We provide OEM and ODM services, including adding your logo to the equipment.

How can I install and use the machine?

We provide comprehensive English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. When necessary, we provide on-site installation assistance.
