UP-5032 UL94 Compliant Flame Tester with Adjustable Burner Angle and Touch Screen Control for Flammability Testing

1 Unit
MOQ
Negotiable
Price
UP-5032 UL94 Compliant Flame Tester with Adjustable Burner Angle and Touch Screen Control for Flammability Testing
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-5032
Burner Angle: 0°,20°,45° Adjustable
Language: Chinese And English
Power Supply:: 220VAC, 50Hz
Applications: Plastic,Wire & Cable ,Electronics,Building Material
Test Mode: Horizontal Burning / Vertical Burning (HB, V-0/V-1/V-2, 5V Grade)
Burner: Standard Tirrill Burner, Inner Diameter 9.5±0.3mm
Flame Height: 20-175 mm Adjustable
Name: Combustion Tester
Service Support: OEM ODM
Highlight:

Adjustable Burner Angle Flame Tester

,

UL94 Compliant Combustion Tester

,

Touch Screen Control Flammability Testing Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-5032
Payment & Shipping Terms
Packaging Details: Professional Export Packing
Delivery Time: 5-10 work days
Payment Terms: D/P,T/T,Paypal,Western Union
Supply Ability: 20 Unit/monty
Product Description
UP-5032 UL94 Horizontal Vertical Flame Tester Polymer Plastic Burning Flammability Testing Machine
Product Overview
The UP-5032 UL94 Horizontal Vertical Flame Tester is laboratory flammability testing equipment for polymeric and plastic materials. It performs horizontal and vertical burning tests under standardized flame source, records after flame time, after glow time and burning spread status to classify material fire retardant grades such as V-0, V-1, V-2, HB, and 5V. The chamber features anti-corrosion inner black coating, large transparent observation window, and top smoke exhaust fan. Touch screen control enables accurate timing, adjustable burner angle, and stable gas flow control for repeatable test results in R&D, incoming quality control, and third-party lab inspection.
Applications
  • Electrical & electronic industry: household appliances, switches, connectors, insulating housing, PCB plastic parts
  • Automotive interior plastic components
  • New energy battery plastic housing & insulating materials
  • Plastic & polymer material factory laboratory
  • Lighting, instrument, power equipment plastic accessories
Specifications
Item Specification
Test Mode Horizontal burning / Vertical burning (HB, V-0/V-1/V-2, 5V grade)
Timer Range 0-999.9s, accuracy: ±0.1s
Burner Standard Tirrill burner, inner diameter 9.5±0.3mm
Burner Angle 0°, 20°, 45° adjustable
Flame Height 20-175 mm adjustable
Test Gas ≥98% Methane / Propane
Chamber Volume 0.75 m³
Observation Window Tempered transparent glass
Exhaust System Top built-in smoke exhaust fan
Control Touch screen operation, auto timing record
Specimen Size 125×13 mm (standard UL94 specimen)
Power Supply AC220V 50/60Hz, ≤500W
Outer Dimension 1100×700×1300 mm (W×D×H)
Net Weight 128 kg
Product Images

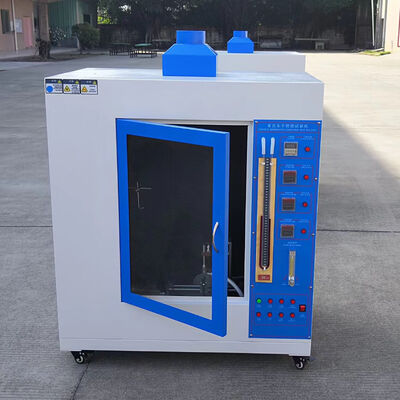

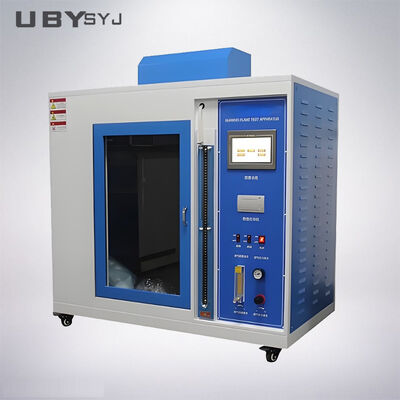

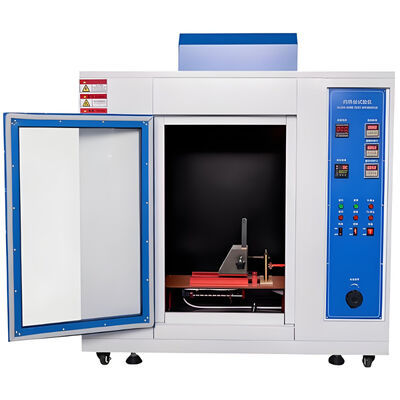

UP-5032 UL94 Horizontal Vertical Flame Tester - Front View Reliable Wire and Cable Vertical Horizontal Combustion Tester
Our Service
During the whole business process, we offer Consultative Selling services:
  1. Customer inquiry process: Discussing testing requirements and technical details, suggesting suitable products, and providing competitive pricing.
  2. Specifications customize process: Creating drawings for customized requirements, providing reference photos, and confirming final solutions and pricing.
  3. Production and delivery process: Manufacturing according to confirmed requirements, providing production updates, factory calibration, quality testing, and timely delivery.
  4. Installation and after-sale service: On-site installation support and comprehensive after-sales services.
Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months for FREE maintenance, extended by 2 months considering sea transportation. If your machine doesn't work, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.
2. What about the delivery term?
For standard machines in stock: 3-7 working days. For machines not in stock: 15-20 working days after payment receipt. We can make special arrangements for urgent needs.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.
4. How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you only need to connect the power cable to start using them. We offer installation assistance when necessary.
