UP-5032 UL94 IEC60695 Compliant Flame Test Chamber with PLC Intelligent Control and Adjustable Flame Height 20mm～125mm

1 Unit
MOQ
Negotiable
Price
UP-5032 UL94 IEC60695 Compliant Flame Test Chamber with PLC Intelligent Control and Adjustable Flame Height 20mm～125mm
Features Gallery Product Description Chat Now
Features
Specifications
Name: Building Materials Testing Equipment
Model NO.: UP-5032
Power: 220V,50HZ Or 110V, 60Hz
Burning Angle: 0°,20°,45°adjustable
Flame Height: 20mm～125mm±1mm Adjustable
Timing Device: 9999X0.1s Can Be Preset
Language: Chinese And English
Service Support: OEM ODM
Highlight:

Adjustable Flame Height Flame Test Chamber

,

PLC Intelligent Control Flame Test Chamber

,

UL94 IEC60695 Compliant Flame Test Chamber
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-5032
Payment & Shipping Terms
Packaging Details: Professional Export Packing
Delivery Time: 5-15 work days
Payment Terms: T/T,D/T,Western Union,Paypal
Supply Ability: 30 Unit/month
Product Description
UP-5032 Horizontal-Vertical Flame Test Chamber for Plastic Fire Retardant Grade Test UL94 IEC60695
Product Overview

The Horizontal-Vertical Flame Test Equipment features an advanced PLC intelligent control system with a 7-inch touch screen and user-friendly operation interface. Equipped with remote wireless sensors for precise recording, it utilizes an integral intake ignition system with 0.1S combustion time delay to ensure sufficient gas burning time.

This tester incorporates a matte black background, multi-functional flame measurement gauge for easy flame adjustment, full stainless steel construction, large observation window, imported fire control systems, and elegant appearance. Combining numerous advantages of similar domestic and international products, it offers stable performance and easy operation, making it the preferred choice for metrological services and laboratories.

Compliance Standards

Designed and manufactured according to UL94, IEC60695-11-2, IEC60695-11-3, IEC60695-11-4, and IEC60695-11-20 standards.

Technical Specifications
Item Specification
Test Mode Horizontal burning / Vertical burning (HB, V-0/V-1/V-2, 5V grade)
Timer Range 0-999.9s, accuracy: ±0.1s
Burner Standard Tirrill burner, inner diameter 9.5±0.3mm
Burner Angle 0°, 20°, 45° adjustable
Flame Height 20-175 mm adjustable
Test Gas ≥98% Methane / Propane
Chamber Volume 0.75 m³
Observation Window Tempered transparent glass
Exhaust System Top built-in smoke exhaust fan
Control Touch screen operation, auto timing record
Specimen Size 125×13 mm (standard UL94 specimen)
Power Supply AC220V 50/60Hz, ≤500W
Outer Dimension 1100×700×1300 mm (W×D×H)
Net Weight 128 kg

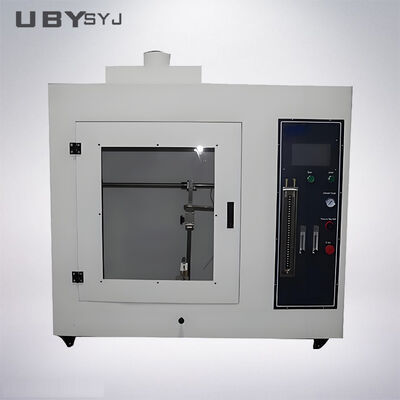

UP-5032 Horizontal-Vertical Flame Test Chamber front view
UP-5032 Horizontal-Vertical Flame Test Chamber side view
Our Service Process
Customer Inquiry Process

Discuss testing requirements and technical details, suggest suitable products for confirmation, and provide competitive pricing according to customer requirements.

Specifications Customization Process

Create related drawings for customized requirements confirmation, provide reference photos showing product appearance, and finalize solution and pricing.

Production and Delivery Process

Manufacture machines according to confirmed PO requirements, provide production progress photos, conduct factory or third-party calibration, and arrange timely shipping.

Installation and After-Sales Service

Provide field installation services and comprehensive after-sales support.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine includes a 12-month warranty after shipment with free maintenance. Considering sea transportation, we extend this to 14 months for international customers.

If your machine experiences issues, contact us via email or phone. We'll diagnose the problem through conversation or video chat and provide solutions within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days. Out-of-stock items: 15-20 working days after payment. Urgent requirements receive special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the equipment.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines ship fully assembled - simply connect the power cable to begin operation. On-site installation assistance is available when necessary.
