UL94 IEC60695 Compliant Horizontal-Vertical Flame Tester with Adjustable Burner Angle for Plastic Material Flammability Testing

1 Unit
MOQ
Negotiable
Price
UL94 IEC60695 Compliant Horizontal-Vertical Flame Tester with Adjustable Burner Angle for Plastic Material Flammability Testing
Features Gallery Product Description Chat Now
Features
Specifications
Name: Combustion Tester
Model NO.: UP-5032
Test Mode: Horizontal Burning / Vertical Burning (HB, V-0/V-1/V-2, 5V Grade)
Burner: Standard Tirrill Burner, Inner Diameter 9.5±0.3mm

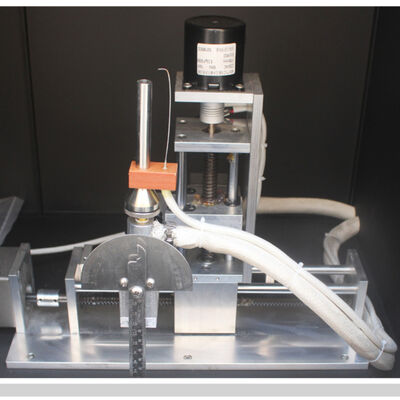

Burner Angle: 0°,20°,45° Adjustable
Flame Height: 20-175 mm Adjustable
Power Supply:: 220VAC, 50Hz
Applications: Plastic,Wire & Cable ,Electronics,Building Material
Language: Chinese And English
Service Support: OEM ODM
Highlight:

UL94 IEC60695 Compliant Flame Tester

,

Horizontal-Vertical Burning Combustion Tester

,

Adjustable Burner Angle Flammability Test Equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-5032
Payment & Shipping Terms
Packaging Details: Professional Export Packing
Delivery Time: 5-10 work days
Payment Terms: D/P,T/T,Paypal,Western Union
Supply Ability: 20 Unit/monty
Product Description
UP-5032 Horizontal-Vertical Flame Tester UL94 IEC60695 Plastic Material Flammability Test Equipment

The UP-5032 Horizontal-Vertical Flame Tester is laboratory flammability testing equipment for polymeric and plastic materials. It performs horizontal and vertical burning tests under standardized flame sources, records after flame time, after glow time and burning spread status to classify material fire retardant grades such as V-0, V-1, V-2, HB, and 5V.

The chamber features anti-corrosion inner black coating, large transparent observation window and top smoke exhaust fan. Touch screen control enables accurate timing, adjustable burner angle, stable gas flow control, ensuring repeatable test results for R&D, incoming quality control and third-party lab inspection.

Applications
  • Electrical & electronic industry: household appliances, switches, connectors, insulating housing, PCB plastic parts
  • Automotive interior plastic components
  • New energy battery plastic housing & insulating materials
  • Plastic & polymer material factory laboratory
  • Lighting, instrument, power equipment plastic accessories
Technical Specifications
Item Specification
Test Mode Horizontal burning / Vertical burning (HB, V-0/V-1/V-2, 5V grade)
Timer Range 0-999.9s, accuracy: ±0.1s
Burner Standard Tirrill burner, inner diameter 9.5±0.3mm
Burner Angle 0°, 20°, 45° adjustable
Flame Height 20-175 mm adjustable
Test Gas ≥98% Methane / Propane
Chamber Volume 0.75 m³
Observation Window Tempered transparent glass
Exhaust System Top built-in smoke exhaust fan
Control Touch screen operation, auto timing record
Specimen Size 125×13 mm (standard UL94 specimen)
Power Supply AC220V 50/60Hz, ≤500W
Outer Dimension 1100×700×1300 mm (W×D×H)
Net Weight 128 kg

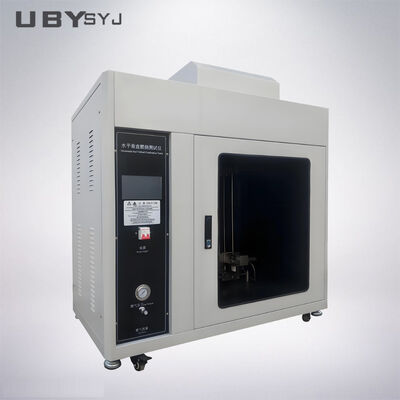

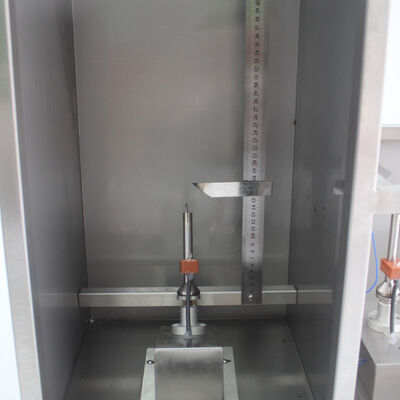

UP-5032 Horizontal-Vertical Flame Tester equipment overview Reliable Wire and Cable Vertical Horizontal Combustion Tester in operation
Our Service Process
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Customization: Create drawings for customized requirements, provide reference photos, and confirm final solutions
  • Production & Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and ensure timely delivery
  • Installation & Support: Provide installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine purchased includes a 12-month warranty after shipment. We offer 12 months of free maintenance, extended to 14 months considering sea transportation. If your machine requires service, contact us via email or phone. We will diagnose the issue and provide solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Out of stock: 15-20 working days after payment. We accommodate urgent requests with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the equipment.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you simply connect the power cable to begin use. We offer installation assistance when necessary.
