DIN 4102 Compliant Flame Spread Tester with 20 mm Flame Length and PLC Control for Building Material Fire Testing

1 Unit
MOQ
Negotiable
Price
DIN 4102 Compliant Flame Spread Tester with 20 mm Flame Length and PLC Control for Building Material Fire Testing
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-5020
Ambient Temperature: 15ºC~25ºC;
Burner Nozzle Aperture: Φ0.17 Mm
Flame Length: 20 Mm ± 2 Mm
Standard Flame Application Duration: 15 Seconds
Applications: Building Materials, Plastic Materials, Wires ,etc.
Language: Chinese And English
Service Support: OEM ODM
Highlight:

DIN 4102 Compliant Flame Spread Tester

,

20 mm Flame Length Flammability Test Equipment

,

PLC Control Building Material Fire Tester
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-5020
Payment & Shipping Terms
Packaging Details: Professional Export Packing
Delivery Time: 5-15 work days
Payment Terms: T/T,D/T,Western Union,Paypal
Supply Ability: 30 Unit/month
Product Description
UP-5020 DIN 4102 Construction Material Flammability Test Equipment Building Material Flame Spread Tester
Product Introduction

Professional Building Materials Flame Test Machine complies with EN ISO 11925-2, DIN 4102 and GB/T 8626 standards. It is used for ignitability, flame spread and fire hazard testing of various building insulation, decoration and composite materials. Adopts precise digital timing system and standard propane flame source, providing stable and repeatable fire test results for laboratory and factory QC inspection.

Compliance Standards
  • EN ISO 11925-2 (Reaction to fire tests - Ignitability of building products)
  • GB/T 8626 (China standard for building material flammability test)
  • DIN 4102 (German building material fire behavior classification standard)
  • EN 13501-1 (Fire classification of construction products)
Applications

Widely used for fire classification inspection, factory quality control and laboratory safety assessment of building materials, fully compliant with international standard test requirements.

Technical Specifications
Item Specification
Ambient temperature 15ºC ~ 25ºC
Relative humidity ≤85%
Power supply AC 220V, 50Hz, 100W
Gas source Liquefied petroleum gas (propane, purity ≥95%)

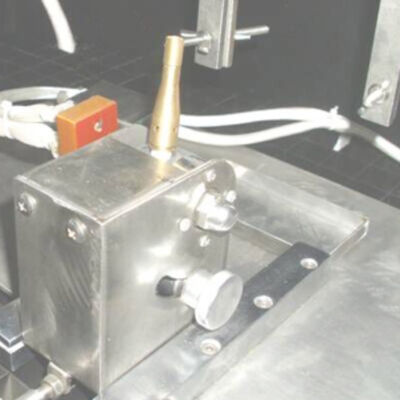

Burner type Bunsen burner, tiltable at 45°
Burner nozzle aperture Φ0.17 mm
Flame length 20 mm ± 2 mm
Flame application time 1 s ~ 99 s, adjustable; accuracy ±0.2 s
Standard flame application duration 15 seconds
Control mode Single-chip microcomputer control, digital display
Product Images

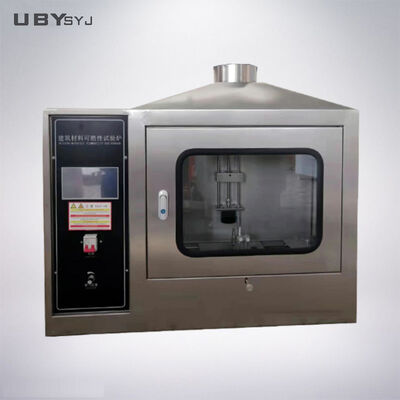

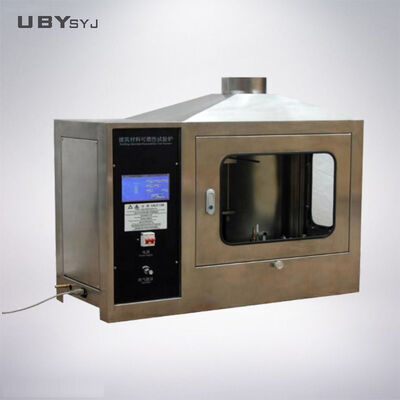

UP-5020 Construction Material Flammability Test Equipment front view UP-5020 Construction Material Flammability Test Equipment side view ISO11925-2 PLC Control Building Material Flammability Test Device control panel
Our Service Process

During the whole business process, we offer Consultative Selling services:

  • Customer Inquiry: Discussing testing requirements and technical details, suggesting suitable products, and providing competitive pricing
  • Specifications Customization: Creating detailed drawings and reference photos for customized requirements, confirming final solutions and pricing
  • Production and Delivery: Manufacturing according to confirmed requirements, providing production updates, factory calibration, and timely delivery
  • Installation and After-Sales: On-site installation support and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months for FREE maintenance, extended to 14 months considering sea transportation. If your machine doesn't work, contact us via email or phone - we'll diagnose the issue and provide solutions within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days; No stock: 15-20 working days after payment; Urgent requirements receive special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the equipment.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin use. On-site installation assistance is available when necessary.
