ISO11925-2 Compliant Flame Retardancy Tester with Adjustable Flame Height and Stainless Steel Construction for Building Materials Fire Resistance Testing

1
MOQ
299
Price
ISO11925-2 Compliant Flame Retardancy Tester with Adjustable Flame Height and Stainless Steel Construction for Building Materials Fire Resistance Testing
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-5020
Service Support: OEM ODM
Language: Chinese And English
MOQ: 1 PCS
Applications: Building Materials, Plastic Materials, Wires ,etc.
Transport Package: Professional Export Packing
Specification: Refer To The Actual Size Specifications
Trademark: None
Origin: China
Production Capacity: 80 Unit/Month
Highlight:

ISO11925-2 Compliant Flame Retardancy Tester

,

Adjustable Flame Height Fire Resistance Testing Equipment

,

Stainless Steel Construction Building Materials Flammability Test Furnace
Basic Infomation
Payment & Shipping Terms
Product Description
Building Material Flame Retardancy Tester Fire Resistance Testing Equipment UP-5020
Product Introduction
The flammability test furnace for building materials directly impacts a vertically placed sample with a small flame in a normal combustion environment to determine the flammability of building products. This equipment uses the German Kleinbrenner principle to measure the combustion performance of Class B building materials under direct flame impact in the vertical direction, enabling accurate assessment of building materials' flame retardant grade B level performance.
Compliance Standards
  • ISO11925-2:2002 E "Test method for flammability of building materials"
  • GB/T8626-2007 "Test method for flammability of building materials"
  • DIN53483 DIN 4102-1
Key Features
  • Ergonomic operation design
  • 1.5mm thick brushed stainless steel plate construction
  • Double-angle observation test with tempered heat-resistant glass doors
  • Independent hand-held igniter for durable combustion
  • Adjustable ignition source (vertical or 45 degrees)
  • Precision regulating valve for flame height adjustment
  • Movable sample holder (up/down and back/forth)
  • Equipped with two sample holders
  • Includes flame measuring ruler
  • High automation with accurate experimental data
  • Combustion box dimensions: W835 × D400 × H815mm
  • Natural ventilation system with 5cm×5cm square vents
Technical Specifications
Ambient Temperature 15°C ~ 25°C
Relative Humidity ≤85%
Supply Voltage & Power 220V 50HZ 100W
Gas Source Liquefied Petroleum Gas
Flame Application Time 15 seconds (Bunsen burner)
Control System Single chip control with digital display
Burner Aperture Φ0.17mm
Bunsen Burner Flame Length 20mm ± 2mm
Sample Flame Application 1-99s ±0.5s (adjustable), accuracy ±0.2s
Combustible Gas Source Propane (purity >95%)

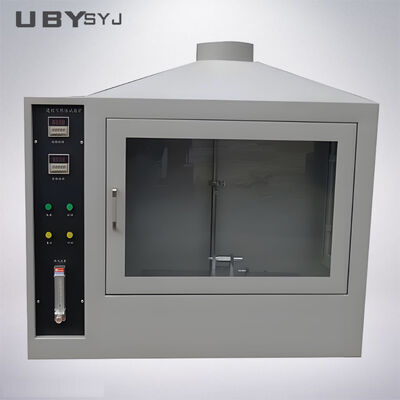

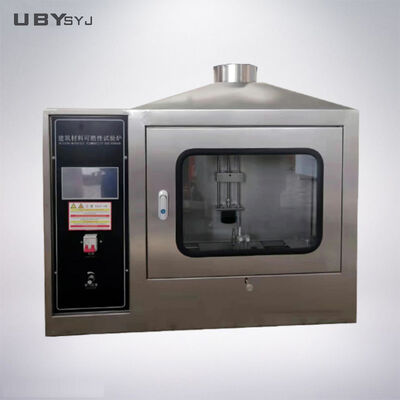

Building Material Flame Retardancy Tester showing front view and control panel Building Material Flame Retardancy Tester side view and sample testing area
Our Service Process
  • Inquiry Process: Discuss testing requirements, suggest suitable products, and provide competitive pricing
  • Customization Process: Create technical drawings, confirm specifications, and finalize solutions
  • Production & Delivery: Manufacture according to requirements, provide production updates, conduct calibration, and ensure timely delivery
  • Installation & Support: Provide installation guidance and comprehensive after-sales support
Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of testing equipment. All machines include a 12-month warranty with free maintenance. We provide technical support via email, phone, or video chat, with solutions typically provided within 24-48 hours.
What is the delivery time?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent orders receive special priority handling.
Do you accept customization and branding?
Yes, we offer comprehensive OEM and ODM services, including custom specifications and logo placement according to your requirements.
How do I install and operate the equipment?
We provide detailed English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin testing. On-site installation assistance is available when needed.
