Features

Specifications

Model NO.: UP-5030

Service Support: OEM ODM

Language: Chinese And English

MOQ: 1 PCS

Applications: Glass, Ceramatic, Floor Tiles And Etc.

Transport Package: Professional Export Packing

Specification: Refer To The Actual Size Specifications

Trademark: None

Origin: China

Production Capacity: 100 Unit/Month

Highlight:

Digital Control Combustion Flammability Test Chamber

Vertical and Horizontal Testing Flame Tester

UL1581 Compliant Burning Test Equipment

Basic Infomation

Payment & Shipping Terms

Gallery

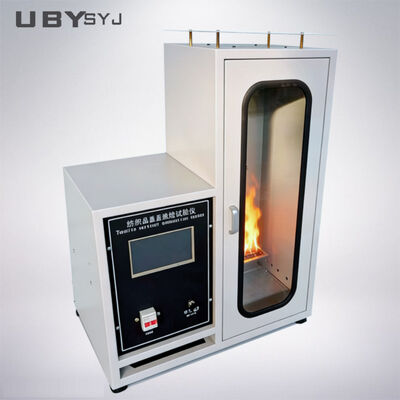

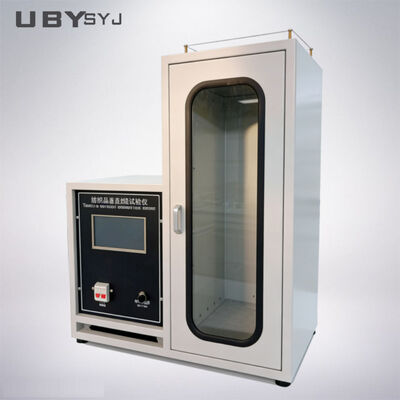

Digital Control Vertical and Horizontal Combustion Flammability Test Chamber UL1581 Compliant for Electric Wire

Product Description

Digital Vertical Horizontal Combustion Flammability Test Chamber for Electric Wire UP-5032

The Digital Vertical Horizontal Combustion Flammability Test Chamber is designed for combustion resistance testing of various wire and cable insulation coating materials, printed circuit board materials, IC insulators, and other organic materials. During testing, the specimen is placed above the flame, burned for 15 seconds, and extinguished for 15 seconds. After repeating this cycle five times, the burning condition of the specimen is examined.

The burning time, extinguishing time, and repetition count can be set, and the operation can be automated. This equipment is applicable to VW-1 of UL1581, UL13, UL444, UL1655, and FT-1 of CSA standards.

Technical Parameters

Vertical combustion box: Manufactured according to UL1581 standard size, internal dimensions: 305×355×610mm
Horizontal combustion box: Manufactured according to UL1581 standard size, internal dimensions: 305×355×610mm
Vertical spark nozzle: Nozzle angle of 20 degrees, equipped with gas control valve
Horizontal spark nozzle: Nozzle angle of 90 degrees, equipped with gas control valve
Vertical or horizontal nozzle selection mode
Manual/automatic mode selection
Automatic test termination when preset data is reached
Fuel: Gas (Methane - customer-prepared)

Our Service

Customer Inquiry Process

Discuss testing requirements and technical details, suggest suitable products for confirmation, and provide the most appropriate pricing according to customer requirements.

Specifications Customize Process

Create related drawings for customized requirements confirmation, provide reference photos showing product appearance, confirm final solution, and finalize pricing with customer.

Production and Delivery Process

Manufacture machines according to confirmed PO requirements, provide production process photos, offer final product photos for confirmation, perform factory or third-party calibration, conduct detailed testing, arrange packing, and deliver within confirmed shipping timeframe.

Installation and After-Sale Service

Provide field installation services and comprehensive after-sales support.

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2-month extension considering sea transportation.

If your machine experiences issues, contact us via email or phone. We will troubleshoot through conversation or video chat if necessary. Once the problem is confirmed, we provide solutions within 24 to 48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days

For machines not in stock: 15-20 working days after payment receipt

Special arrangements available for urgent requirements

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machines.

How can I install and use the machine?

We provide English operation manuals or videos via email after order placement. Most machines are shipped fully assembled - simply connect the power cable to begin use. When necessary, we can assist with on-site installation.
