Home /Products/Footwear Testing Equipment/UP-4009 Low Temperature Flex Tester with Normal Temperature ~ -30ºC Range, ≤±0.5ºC Uniformity, and 80min Cooling Time

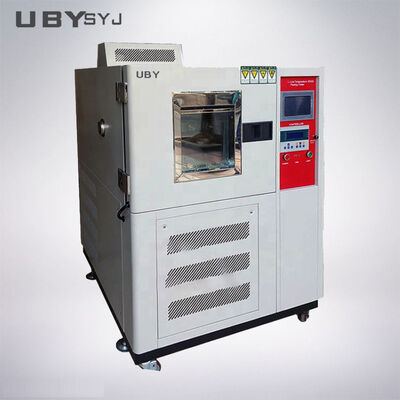

UP-4009 Low Temperature Flex Tester with Normal Temperature ~ -30ºC Range, ≤±0.5ºC Uniformity, and 80min Cooling Time

1 Unit
MOQ
Negotiable
Price
UP-4009 Low Temperature Flex Tester with Normal Temperature ~ -30ºC Range, ≤±0.5ºC Uniformity, and 80min Cooling Time
Features Gallery Product Description Chat Now
Features
Specifications
Service Support: OEM ODM
Applications: Leather,Shoes
Product Name: Low Temperature Flexing Testing Machine
Temperature Range: Normal Temperature ~ -30ºC
Cooling Time: -25ºC~-30ºC(about 80min)
Uniformity: ≤±0.5ºC/+2ºC-3ºC
Timing: 0.1~999.9(S,M,H)adjustable
Language: Chinese And English
Highlight:

Low Temperature Flex Tester

,

Flex Tester with -30ºC Range

,

Footwear Testing Equipment with warranty
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-4009
Payment & Shipping Terms
Packaging Details: Professional export packing
Delivery Time: 5-10work days
Payment Terms: D/P,T/T,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
UP-4009 Textile Leather Low Temperature Flex Tester Material Cold Crack Testing Machine
The UP-4009 Low Temperature Flex Tester is a vertically designed machine that eliminates the need to bend over when gripping specimens, making operation more convenient and efficient. This testing equipment is used to evaluate finished shoes, rubber, plastics, shoe soles, synthetic leather, and other materials in cryogenic or cool region environments.
Product Introduction
Constructed from stainless steel, this machine can accommodate various fixtures to meet different testing requirements. It features a vertical design that provides easy access to specimens without requiring operators to bend over.
Standards Compliance
ASTM D1790, ASTM D1593, JIS-K6545
Technical Specifications
Parameter Specification
Inside Size 400×500×400mm (L×W×H)
Fixture Customizable based on actual demand (sole folding, leather folding, shoes folding)
Temperature Range Normal temperature ~ -30ºC
Temperature Uniformity ≤±0.5ºC/+2ºC-3ºC
Cooling Time -25ºC~-30ºC (approximately 80 minutes)
Controller System LED digital controller (from Taiwan) P,I,D +S,S,R microcomputer controller
Accuracy Range Setting accuracy: ±0.1ºC, Display accuracy: ±0.1ºC, Resolution: ±0.1ºC
Cooling System Totally enclosed air-cooled single-stage compression refrigerate mode / French "Taikang" compressor / totally enclosed air-cooled re-compression refrigerate mode
Compressor Start Delay 5 minutes
Circulation System Temperature, low-noise, air-conditioning-type motor with multi-vane centrifugal wind wheel
Outside Material High-quality carbon steel plate with phosphide electrostatic spray treatment / SUS304 stainless steel hairline treatment
Inside Material SUS304 High-quality stainless steel light board
Insulation Material Rigid polyurethane foam, ultra-fine glass fiber cotton
Standard Configuration Multi-heated glass window with lighting, 2 testing product shelves, test leads holes (25,50 mm)
Safety Protection Leak current, short circuit, over temperature, motor overheating, over-pressure compressor, overload, over-current protection
Timing Range 0.1~999.9 (S,M,H) adjustable
Power 2.5KW
Voltage AC380V±10% 50±0.5Hz Three-phase five-wire system
Environmental Temperature 5ºC~+30ºC ≤85% R.H
Note: Above data were measured at temperature 25ºC under no-load conditions. Custom non-standard high-low-temperature testing machines available according to user requirements.
Product Images

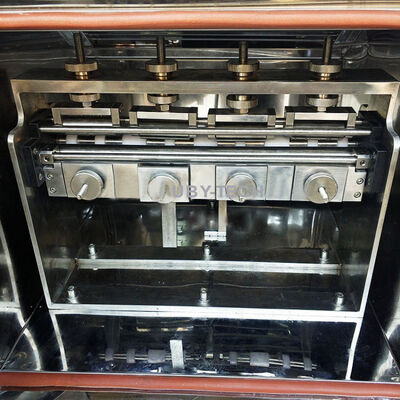

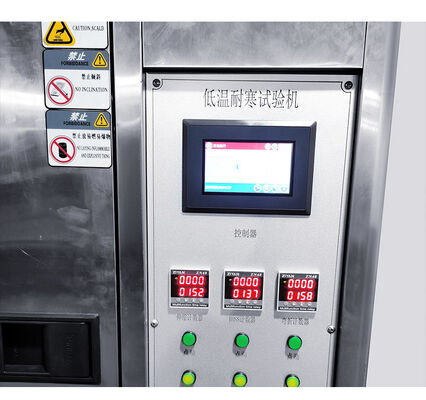

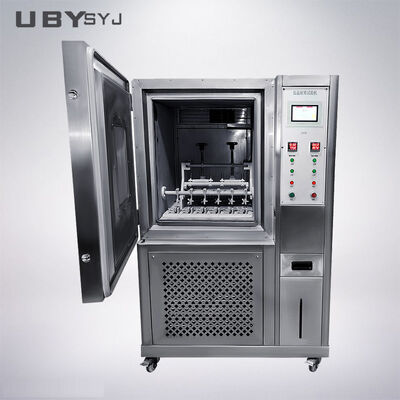

UP-4009 Low Temperature Flex Tester front view UP-4009 Low Temperature Flex Tester side view UP-4009 Low Temperature Flex Tester control panel
Our Service
We provide comprehensive Consultative Selling services throughout the entire business process:
  • Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing.
  • Specifications Customization: Create detailed drawings for custom requirements, provide reference photos, and confirm final solutions and pricing.
  • Production and Delivery: Manufacture according to confirmed requirements, provide production progress photos, conduct factory or third-party calibration, and ensure timely delivery.
  • Installation and After-Sales: Provide on-site installation and comprehensive after-sales support services.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I request service? What is the warranty?
Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine includes a 12-month warranty after shipment, with FREE maintenance during this period. We extend an additional 2 months to account for sea transportation. For technical issues, contact us via email or phone - we'll diagnose problems through conversation or video chat and provide solutions within 24-48 hours.
What is the delivery time?
Standard machines in stock: 3-7 working days. Out-of-stock items: 15-20 working days after payment. Urgent requirements receive special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including custom branding with your logo.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines ship fully assembled - simply connect the power cable to begin operation. On-site installation assistance is available when necessary.
