UP-6124 HAST Test Chamber with Unsaturated and Saturated Humidity Control Compliant with JESD22 Standards and 105ºC~132ºC Range

1 Unit
MOQ
Negotiable
Price
UP-6124 HAST Test Chamber with Unsaturated and Saturated Humidity Control Compliant with JESD22 Standards and 105ºC~132ºC Range
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Highly Accelerated Stress Test Chamber
HS Code: 8479899990
Model NO.: UP-6124
Temperature Range: 105ºC~132ºC
Humidity Range: 75%~100%Rh
Pressure Range: Table Pressure 0.2~2.0kg/Cm2
Size Service: Support Customer Customization
Third-Party Calibration Service: Support Customer Customization
Custom Service: OEM,ODM
Warranty: 1 Year
Highlight:

HAST test chamber with humidity control

,

Environmental test chamber for JESD22 standards

,

Unsaturated humidity test chamber 105ºC~132ºC

Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6124
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
UP-6124 Hast Test Chamber Supports both Unsaturated and Saturated Humidity Control to Comply With JESD22 Standards
Product Overview

HAST test chamber is an accelerated reliability testing system designed primarily for the semiconductor and electronics industry. It creates a closed, pressurized environment that simultaneously applies high temperature (typically 105°C to 145°C), high humidity (65% to 100% RH), and elevated pressure to force failure mechanisms in products rapidly.

Applications

Used to evaluate the moisture resistance and sealing integrity of IC packages, PCBs, connectors, and MEMS devices. The test compresses months or years of natural aging into just a few days, helping manufacturers identify design flaws early.

Compliance Standards

Complies with IEC 60068-2-66, JESD22-A110/A118, AEC-Q100/Q101, and GB/T 2423.40

Technical Specifications
ITEM Specification
Model UP-6124
Humidity Range 75% ~ 100% RH
Temperature Range +105 °C ~ +132 °C
Humidity Fluctuation ≤ ±3% RH
Pressure Range 1.2 - 2.89 MPa
Time Range 0 ~ 999 minutes
Language Chinese / English
Operation Mode Manual or Programmable
Unit Dimensions (W×D×H) 900 × 700 × 1500 mm
Heating Time Ambient -> +132 °C: Approx. 110 minutes
Pressure Rise Time Atmospheric pressure -> 1.89 bar: Approx. 130 minutes
Temperature Uniformity ≤ ±0.5 °C
Outer Chamber Material Stainless steel or optional painting / baking finish
Inner Chamber Material Stainless steel (SUS #316)
Insulation Material Rock wool and rigid polyurethane foam
Ambient Temperature +5 °C to +35 °C
Ambient Humidity ≤ 85% RH
Power Supply AC220V, 1PH, 20A, 50Hz, Line + Neutral + Protective Earth

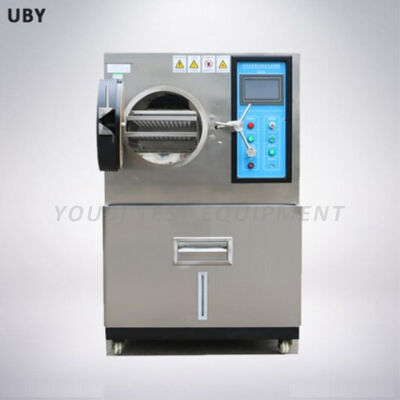

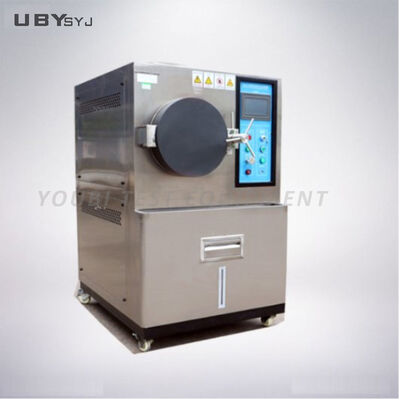

Product Images
UP-6124 HAST Test Chamber with Unsaturated and Saturated Humidity Control Compliant with JESD22 Standards and 105ºC~132ºC Range 0 UP-6124 HAST Test Chamber with Unsaturated and Saturated Humidity Control Compliant with JESD22 Standards and 105ºC~132ºC Range 1 UP-6124 HAST Test Chamber with Unsaturated and Saturated Humidity Control Compliant with JESD22 Standards and 105ºC~132ºC Range 2
Our Service
1) Customer Inquiry Process

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

2) Specifications Customize Process

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3) Production and Delivery Process

We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.

4) Installation and After-Sale Service

Defines installing those products in the field and providing after-sales support.

Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers.

Moreover, if your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?

For our standard machine which means normal machines, if we have stock in the warehouse, is 3-7 working days; if there is no stock, normally, the delivery time is 15-20 working days after payment is received; if you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can I install and use the machine?

Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
