Name: UP-2003 Universal Testing Machine with 10 kN to 300 kN Max Test Force, ±1.0% Accuracy, and Versatile Testing Capabilities
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-2003
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Structure Type: Benchtop, Single Column

Model NO.: UP-2003

Max. Test Force: 10 KN To 300 KN (approximately 30 Tons)

Measurement Unit Switching: Kgf, Gf, N, KN, Ibf

Accuracy: ±1.0%

Force Resolution: 1/30000

Load Measurement Range: 0.2% - 100% Of Full Scale (FS)

Effective Test Width: 120mm

Effective Tensile Stroke (Crosshead Travel): 800mm

Additional Service: Support Customer Customization.

Highlight:

Universal Testing Machine 10 kN capacity

Universal Testing Machine ±1.0% accuracy

Universal Testing Machine versatile testing

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-2003

Payment & Shipping Terms

Packaging Details: 30 Unit/Month

Delivery Time: 5-10 work days

Payment Terms: D/P,T/T,Western Union,paypal

Supply Ability: Professional Export Wooden Carton Packaging

Gallery

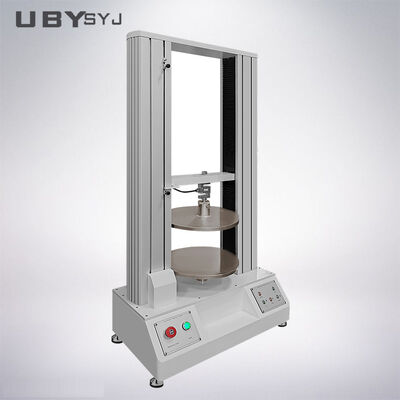

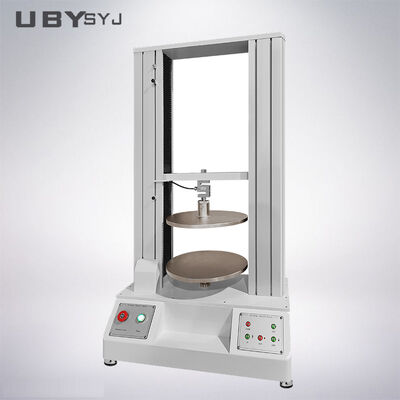

UP-2003 Universal Testing Machine with 10 kN to 300 kN Max Test Force, ±1.0% Accuracy, and Versatile Testing Capabilities

Product Description

UP-2003 Versatile Compression Strength Tester

Complete various tests such as tension, bending, peeling, and tearing by changing fixtures.

Product Introduction

The UP-2003 Compression Testing Machine is a mechanical testing equipment that integrates mechanical transmission, electronic measurement, and intelligent control. It is primarily used for testing the compressive mechanical properties of materials. The device features a single column floor-standing structure with a microcomputer control system, offering compact design, easy operation, and precise testing capabilities.

Note: This equipment belongs to the "Double Column Electronic Universal Testing Machine" series and can simultaneously complete various tests including tension, compression, bending, peeling, and tearing by changing fixtures.

Compliance Standards

ASTM D695, ASTM D3574, ISO 604, ISO 7743, GB/T 1041, TAPPI T804, GB/T 7757, GB/T 8813 and more.

Applications

Ideal for compression testing of small materials with maximum loads typically within 0-5kN range. Perfect for compressive strength testing of packaging materials, foam plastics, rubber products, electronic components, and various other products.

Technical Specifications

Parameter	Specification
Load Cell (Capacity)	10 kN to 300 kN (approximately 30 tons)
Force Resolution	1/300,000
Force Accuracy	≤0.5%
Displacement Resolution	1/1000 mm
Displacement Accuracy	≤0.1%
Metal Extensometer Resolution	1/1000 (subject to separate agreement)
Metal Extensometer Accuracy	≤0.5%
Large Strain Extensometer Accuracy	±0.01 mm (subject to separate agreement)
Speed Range	50 ~ 500 mm/min (custom speeds available upon request)
Travel Range (Stroke)	1000 mm (excluding fixtures; custom range available upon request)
Test Width	400 mm (custom width available upon request)
System Language	Switchable between Chinese and English
Power Supply	220V, 50Hz
Power Rating	Approx. 1000W
Machine Dimensions (L × W × H)	Approx. 500 × 500 × 1300 mm
Machine Weight	Approx. 100 kg

Product Gallery

Our Service Process

Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing.
Customization Process: Create detailed drawings for custom requirements, provide reference photos, and confirm final solutions and pricing.
Production & Delivery: Manufacture according to confirmed specifications, provide production updates, conduct calibration, and arrange timely shipping.
Installation & Support: Provide on-site installation and comprehensive after-sales support services.

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I request service? What is the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months consideration for sea transportation. For technical issues, contact us via email or phone for prompt troubleshooting and solutions within 24-48 hours.

What is the delivery timeline?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. We accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including custom branding with your logo.

How do I install and use the machine?

We provide comprehensive English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. On-site installation assistance is available when necessary.
